SN-215.4OHM0.01%

Description
Fixed Resistor, Wire Wound, 1W, 15.4ohm, 58V, 0.01% +/-Tol, 20ppm/Cel, Surface Mount, 2616, CHIP, ROHS COMPLIANT
CategoryPassive components    The resistor
File Size247KB，3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

SN-215.4OHM0.01% Overview

Fixed Resistor, Wire Wound, 1W, 15.4ohm, 58V, 0.01% +/-Tol, 20ppm/Cel, Surface Mount, 2616, CHIP, ROHS COMPLIANT

SN-215.4OHM0.01% Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1286761524
package instructionCHIP, ROHS COMPLIANT
Reach Compliance Codecompliant
Country Of OriginIsrael
ECCN codeEAR99
YTEOL10
Other featuresNON INDUCTIVE
structureRectangular
Manufacturer's serial numberS
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature275 °C
Minimum operating temperature-55 °C
Package height3.2 mm
Package length6.6 mm
Package shapeRECTANGULAR PACKAGE
Package formSMT
Package width3.9 mm
method of packingTR
Rated power dissipation(P)1 W
Rated temperature70 °C
resistance15.4 Ω
Resistor typeFIXED RESISTOR
seriesS(SMT)
size code2616
surface mountYES
technologyWIRE WOUND
Temperature Coefficient20 ppm/°C
Terminal shapeWRAPAROUND
Tolerance0.01%
Operating Voltage58 V

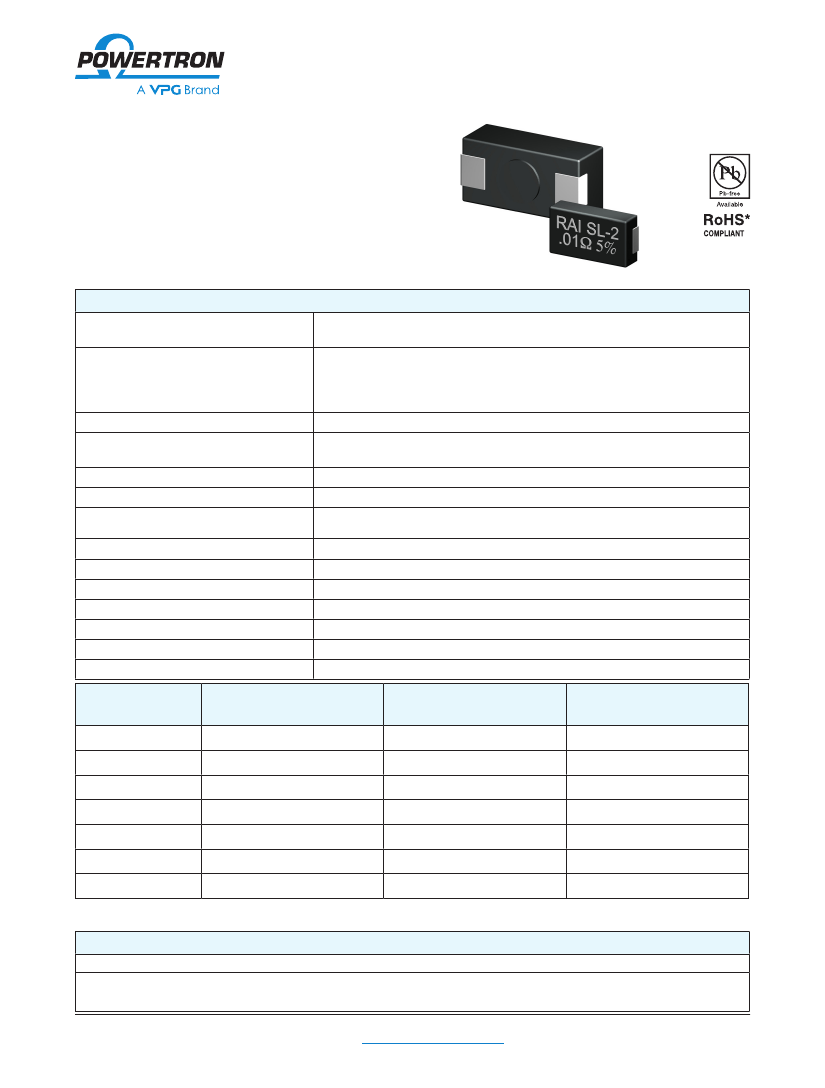

SN-215.4OHM0.01% Preview

S SL Series
FEATURES
•
•
•
•
•
•
Resistances from 0.005 Ohm to 50 kOhms
Power rating to 4 Watt
Resistance tolerances to ±0.01%
TCR to ±20 ppm/K
Load stability to 0.5%
Customized resistance values
TABLE 1—SPECIFICATIONS
Tolerances
Temperature Coefficient
S: ±0.01% to ±5%
SL: ±0.1% to ±5%
S: >10W : ±20ppm/K
S: 1W to10W : ±50ppm/K
S: <1W : Call Factory
SL: ±120ppm/K
-55°C to +275°C
S: 1000 VAC
SL: 500 VAC
>1000 MOhms / Dry
S-1: 12 / S-2: 16 / S-4: 24 / S-5: 32 / SL-2: 16 / SL-4: 24
Temperature Range
Dielectric Strength
Insulation Resistance
Reel / Tape Width (mm)
Environmental Performance
(MIL-STD 202)
DR
±0.5% + 0.05W
±1% + 0.05W
±0.5% + 0.05W
±1% + 0.05W
±0.5% + 0.05W
±0.5% + 0.05W
±0.5% + 0.05W
Dielectric
Load Life
Storage
Moisture Resistance
Thermal Shock
5X Overload ( 5s )
Shock
Type
S-1
S-2
S-4
S-3
S-5
SL-2
SL-4
Power Rating
Watts @ 70°C
Resistance
1
Range (
W
)
0.01 to 400
0.005 to 3k
0.01 to 15k
0.01 to 25k
0.01 to 50k
0.005 to 0.05
0.005 to 0.07
Maximum
Working Voltage
14
54
173
273
447
0.22
0.37
0.5
1
2
3
4
1
2
for non-inductive windings: divide max resistance by 2
ORDERING INFORMATION
Part Number - Resistance - Tolerance - TCR ( If not standard )
S-4 100 Ohm 1%
For Non-Inductive Windings / insert the letter “N” ( i.e. SN-4 )
Document No.: 64323
Revision: 31-01-2015
For technical questions,
contact
powertron@vpgsensors.com
www.powertron.de
1
S SL Series
FIGURE 1—DIMENSIONS
Dimensions
Type
A
±0.015”
[±0.4mm]
0.190 [4.8]
0.260 [6.6]
0.450
[11.4]
0.625
[15.9]
0.820
[20.8]
0.260 [6.6]
0.450
[11.4]
B
±0.015”
[±0.4mm]
0.130 [3.3]
0.155 [3.9]
0.250 [6.4]
0.270 [6.9]
0.295 [7.5]
0.155 [3.9]
0.250 [6.4]
C
±0.015”
[±0.4mm]
0.110 [2.8]
0.125 [3.2]
0.180 [4.6]
0.250 [6.4]
0.300 [7.6]
0.100 [2.5]
0.100 [2.5]
D
±0.015”
[±0.4mm]
0.060 [1.5]
0.070 [1.8]
0.120 [3.0]
0.120 [3.0]
0.150 [3.8]
0.070 [1.8]
0.120 [3.0]
F
±0.015”
[±0.4mm]
0.040 [1.0]
0.070 [1.8]
0.100 [2.5]
0.135 [3.4]
0.190 [4.8]
0.070 [1.8]
0.100 [2.5]
Lead
Thickness
±0.002”
[±0.05mm]
0.006
[0.15]
0.006
[0.15]
0.006
[0.15]
0.006
[0.15]
0.006
[0.15]
0.006
[0.15]
0.006
[0.15]
Stand-Off
E
±0.015”
[±0.4mm]
0.100 [2.5]
0.120 [3.0]
0.190 [4.8]
0.150 [3.8]
0.245 [6.2]
0.120 [3.0]
0.190 [4.8]
Height
±0.005”
[±0.13mm]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
W
±0.015”
[±0.4mm]
0.062 [1.6]
0.096 [2.4]
0.155 [3.9]
0.200 [5.1]
0.220 [5.6]
0.096 [2.4]
0.155 [3.9]
Footprint
H
±0.015”
[±0.4mm]
0.100 [2.5]
0.112 [2.8]
0.230 [5.8]
0.150 [3.8]
0.250 [6.4]
0.112 [2.8]
0.230 [5.8]
L
±0.015”
[±0.4mm]
0.250 [6.4]
0.337 [8.6]
0.540
[13.7]
0.700
[17.8]
0.900
[22.9]
0.337 [8.6]
0.540
[13.7]
S-1
S-2
S-4
S-3
S-5
SL-2
SL-4
FIGURE 2—DERATING
Power Derating Curve
120
100
Power ( % )
80
60
40
20
0
0
50
100
150
200
250
300
350
Ambient Temperature (°C)
www.powertron.de
2
For technical questions,
contact
powertron@vpgsensors.com
Document No.: 64323
Revision: 31-01-2015
Legal Disclaimer Notice
Vishay Precision Group, Inc.
Disclaimer
ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf
(collectively, “VPG”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in
any other disclosure relating to any product.
The product specifications do not expand or otherwise modify VPG’s terms and conditions of purchase, including but
not limited to, the warranty expressed therein.
VPG makes no warranty, representation or guarantee other than as set forth in the terms and conditions of purchase.
To the maximum extent permitted by applicable law, VPG disclaims (i) any and all liability arising out of the
application or use of any product, (ii) any and all liability, including without limitation special, consequential or
incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose,
non-infringement and merchantability.
Information provided in datasheets and/or specifications may vary from actual results in different applications and
performance may vary over time. Statements regarding the suitability of products for certain types of applications
are based on VPG’s knowledge of typical requirements that are often placed on VPG products. It is the customer’s
responsibility to validate that a particular product with the properties described in the product specification is suitable for
use in a particular application. You should ensure you have the current version of the relevant information by contacting
VPG prior to performing installation or use of the product, such as on our website at vpgsensors.com.
No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or by any
conduct of VPG.
The products shown herein are not designed for use in life-saving or life-sustaining applications unless otherwise
expressly indicated. Customers using or selling VPG products not expressly indicated for use in such applications do
so entirely at their own risk and agree to fully indemnify VPG for any damages arising or resulting from such use or sale.
Please contact authorized VPG personnel to obtain written terms and conditions regarding products designed for such
applications.
Product names and markings noted herein may be trademarks of their respective owners.
Copyright Vishay Precision Group, Inc., 2014. All rights reserved.
Document No.: 63999
Revision: 15-Jul-2014
www.vpgsensors.com
