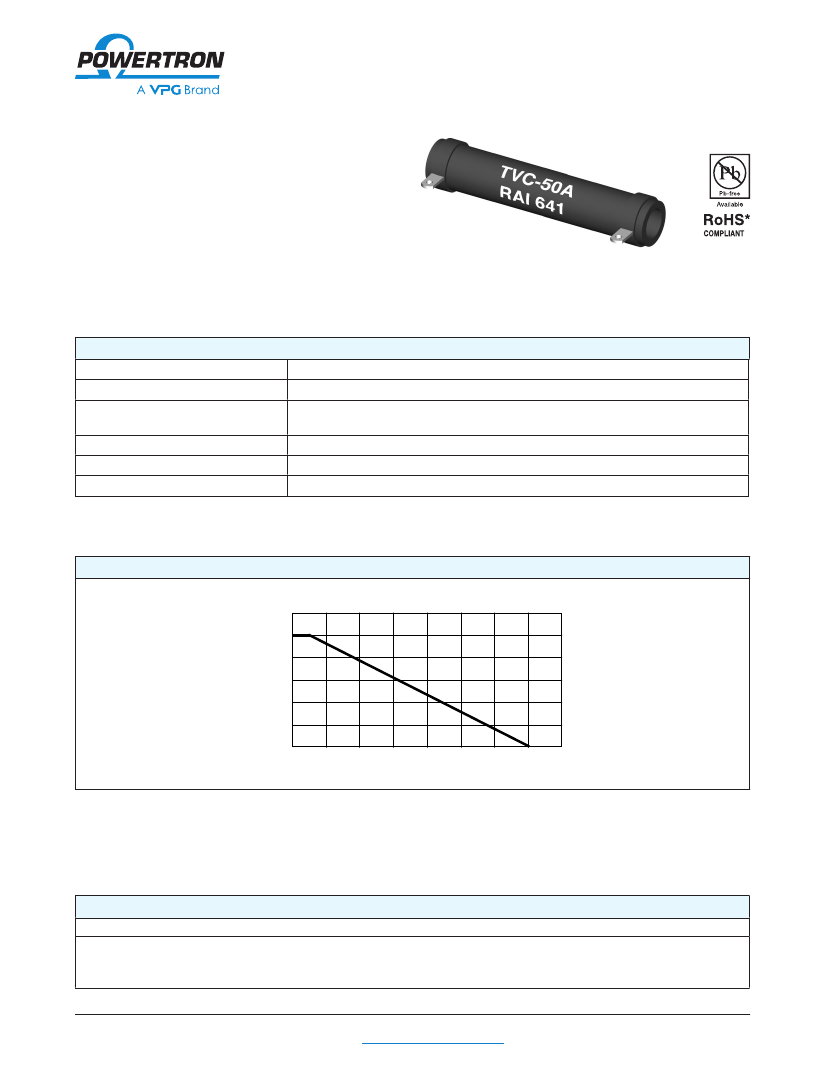

TSC TVS Series
FEATURES
•
•
•
•
Resistances from 1 Ohms to 47kOhms
Power Rating 5 to 225Watts
Resistance Tolerances to ± 5%
Options:
• Special Tolerances
• Ayrton-Perry / Non-Inductive Windings
• Fixed / Tapped / or Adjustable
• Quick Connect Terminals
• Mounting Brackets
TABLE 1—SPECIFICATIONS
Resistance Range
Tolerances
Temperature Coefficient
Temperature Range
Dielectric Strength
Overload
1W to 47kOhms
±5% Standard
( Call Factory for Other Tolerances )
>5R : ±200ppm/K
1R to 5R : ±260ppm/K
-55°C to +350°C
1000 VAC
10X Rated Power / 5s
FIGURE 1—DERATING
Power Derating Curve
120
100
Power ( % )
80
60
40
20
0
0
50
100
150
200
250
300
350
400
Ambient Temperature (°C)
ORDERING INFORMATION
Part Number - Resistance - Tolerance - TCR ( If not standard ) - Quick-Connects - Brackets
TSC-75 100 Ohm 5% QC BKTS
For Non-Inductive Windings / insert the letter “N” ( i.e. TSCN-50 )
TSC-50 and larger parts are Available with 0.250 x 0.032 Quick Connect Terminal / Add “QC” to the Part Number.
Push-in friction grip mounting brackets are Available / Add “BKTS” to Part Number
Document No.: 64324
Revision: 31-01-2015
For technical questions,
contact
powertron@vpgsensors.com
www.powertron.de
