110IMY35-12-12-9I datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> 110IMY35-12-12-9I

110IMY35-12-12-9I: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 35W, Hybrid; CategoryPower/power management The power supply circuit; File Size385KB，15 Pages; ManufacturerBel Power Solutions

Download Datasheet Parametric View All

110IMY35-12-12-9I Overview

DC-DC Regulated Power Supply Module, 2 Output, 35W, Hybrid

110IMY35-12-12-9I Parametric

Parameter Name	Attribute value
Brand Name	Power-One
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1549243298
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	12V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	150 V
Minimum input voltage	60 V
Nominal input voltage	110 V
JESD-30 code	R-XDMA-P17
JESD-609 code	e0
Maximum load regulation	3%
Number of functions	1
Output times	2
Number of terminals	17
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output voltage	12.12 V
Minimum output voltage	11.88 V
Nominal output voltage	12 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	35 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

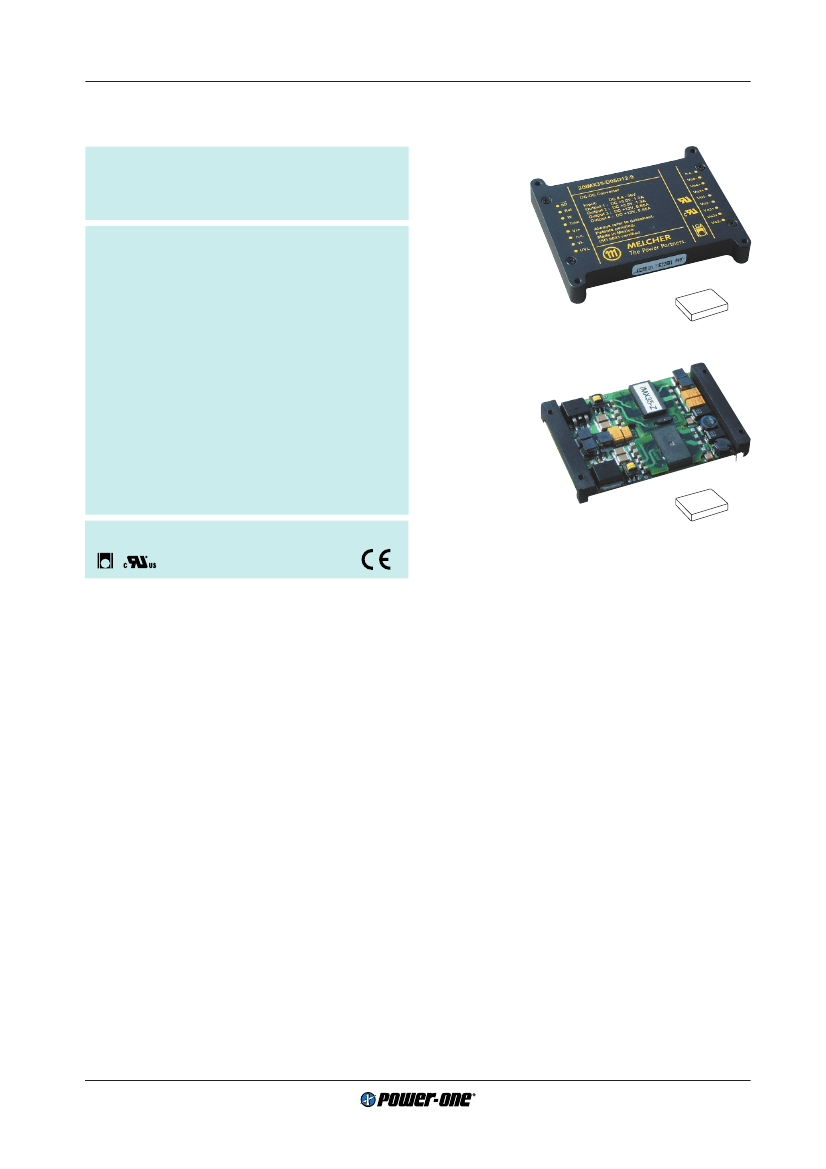

Board Mountable

DC-DC Converters

IMY 35 Series

35 Watt DC-DC Converters

Input to output electric strength test up to 2.5 kV DC

Input voltage: 60...150 V DC

2, 3 and 4 outputs

Configurable output voltages from 5 to 60 V DC

• Extremely wide input voltage ranges

• Electrical isolation, also between outputs

• Emissions below EN 55022, level B

• Immunity to IEC/EN 61000-4-2,-3,-4,-5 and -6

• Programmable input undervoltage lock-out

• Shut down input

• Output voltages adjustable with flexible load distribu-

tion

• Frequency synchronisation

• Outputs no-load, overload and short-circuit proof

• Operating ambient temperature up to –40...85

• Thermal protection

• 3"

2,5" case with 10.5 mm profile or 8.9 mm open

frame

• Double or reinforced insulation

IMY 35 Series

63.5

2.5"

10.5

0.41"

76.2

47.8

1.88"

8.9

0.35"

72.8

2.87"

Safety according to IEC/EN 60950, UL 1950

LGA

Approvals pending

Summary

The IMY 35 series of board mountable 35 Watt DC-DC con-

verters has been designed according to the latest industry

requirements and standards. The converters are particu-

larly suitable for use in mobile or stationary applications in

transport, railways, industry, or telecommunication where

variable input voltages or high transient voltages are preva-

lent.

With a total input voltage range from 60...150 V, the units

are available with double and quadruple outputs, electri-

cally isolated, from 5 V up to 60 V externally adjustable and

with flexible load distribution. A shut down input allows re-

mote converter on-off. Features include consistently high

efficiency over the entire input voltage range, high reliability

and excellent dynamic response to load and line changes.

The converters are designed and built according to the in-

ternational safety standards IEC/EN 60950, UL 1950, CAN/

CSA C22.2 No.950-95. LGA, UL and cUL approvals are in

progress.

The circuit comprises of two planar magnetics devices and

all components are automatically assembled and solidly

soldered onto a single PCB without any wire connection.

Magnetic feedback ensures maximum reliability and

repeatability in the control loop over all operating condi-

tions. Careful considerations of possible thermal stresses

ensure the absence of hot spots providing long life in envi-

ronments where temperature cycles are a reality. The ther-

mal design without using any potting material allows opera-

tion at full load up to an ambient temperature of 71°C in free

air. For extremely high vibration environments the case has

holes for screw mounting. Various options as e.g. extended

temperature range –40...85°C or an alternative pinout pro-

vide a high level of application specific engineering and de-

sign-in flexibility.

Table of Contents

Page

Summary .......................................................................... 1

Type Survey and Key Data .............................................. 2

Type Key .......................................................................... 2

Functional Description ..................................................... 3

Electrical Input Data ......................................................... 4

Electrical Output Data ...................................................... 6

Edition 2/5.2000

Page

Auxiliary Functions ........................................................... 9

Electromagnetic Compatibility (EMC) ............................ 10

Immunity to Environmental Conditions .......................... 11

Mechanical Data ............................................................ 12

Safety and Installation Instructions ................................ 13

Description of Option ..................................................... 15

1/15
