20MX15-12-12-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 20MX15-12-12-9

20MX15-12-12-9: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 15.6W, Hybrid; CategoryPower/power management The power supply circuit; File Size316KB，20 Pages; ManufacturerBel Power Solutions

Download Datasheet Parametric View All

20MX15-12-12-9 Overview

DC-DC Regulated Power Supply Module, 2 Output, 15.6W, Hybrid

20MX15-12-12-9 Parametric

Parameter Name	Attribute value
Brand Name	Power-One
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1912936675
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	8.4 V
Nominal input voltage	20 V
JESD-30 code	R-XDMA-P7
JESD-609 code	e0
Maximum load regulation	3%
Number of functions	1
Output times	2
Number of terminals	7
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output voltage	12.6 V
Minimum output voltage	9 V
Nominal output voltage	12 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	15.6 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

Board Mountable

DC-DC Converters

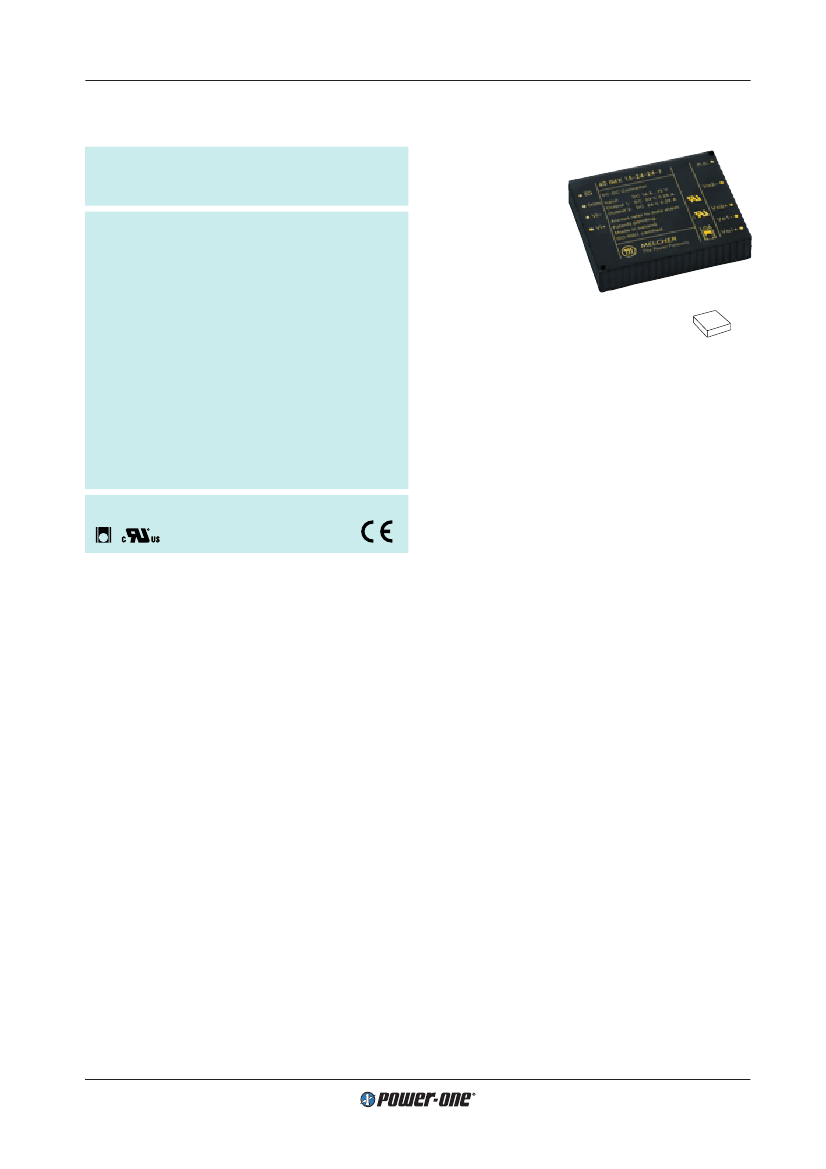

IMX/IMY 15 Series

15 Watt DC-DC Converters

Wide input voltage ranges up to 150 V DC

1 or 2 outputs up to 48 V DC

1500...4000 V DC I/O electric strength test

• Extremely wide input voltage ranges

• Electrical isolation, also between outputs

• Emissions below EN 55022, level B

• Immunity to IEC/EN 61000-4-2,-3,-4,-5 and -6

• High efficiency (typ. 87%)

• Input undervoltage lock-out

• Shut down input, output voltages adjustable

• Flex power: Flexible load distribution on outputs

• Outputs no-load, overload and short-circuit proof

• Operating ambient temperature up to –40...85

• Thermal protection

• 2"

1.6" case with 10.5 mm profile

• Supplementary insulation: 20/40 IMX 15 types

• Double or reinforced insulation: 110 IMY 15 types

Safety according to IEC/EN 60950, UL 1950

LGA

IMX 15 Series

IMY 15 Series

40.6

1.6"

10.5

0.42"

2.0"

Approvals pending

For 110 IMY 15 types

Summary

The IMX 15 and IMY 15 series of board mountable 15 Watt

DC-DC converters has been designed according to the lat-

est industry requirements and standards. The converters

are particularly suitable for use in mobile or stationary appli-

cations in transport, railways, industry, or telecommunica-

tion where variable input voltages or high transient voltages

are prevalent.

Covering a total input voltage range from 8.4 up to 150 V

with 3 different types, the units are available with single,

dual and electrically isolated double outputs from 3.3 up to

48 V externally adjustable, with flexible load distribution on

dual and double output units. A shut down input allows re-

mote converter on-off. Features include consistently high

efficiency over the entire input voltage range, high reliability

and excellent dynamic response to load and line changes.

The converters are designed and built according to the in-

ternational safety standards IEC/EN 60950, UL 1950, CAN/

CSA C22.2 No.950-95. LGA, UL and cUL approvals are in

progress. The 20 IMX 15 and 40 IMX 15 types provide sup-

plementary insulation. Connected to a secondary circuit the

40 IMX 15 types provide SELV outputs even if the bus volt-

age at the converter input exceeds the SELV-limit of

60 V DC. The 110 IMY 15 types provide double insulation

and are CE marked. They may be connected to e.g. a recti-

fied 110 V AC source without any further isolation barrier.

The circuit comprises of integrated planar magnetics and

all components are automatically assembled and solidly

soldered onto a single PCB without any wire connection.

Magnetic feedback ensures maximum reliability and re-

peatability in the control loop over all operating conditions.

Careful considerations of possible thermal stresses ensure

the absence of hot spots providing long life in environments

where temperature cycles are a reality. The thermal design

allows operation at full load up to an ambient temperature

of 71°C in free air without using any potting material. For

extremely high vibration environments the case has holes

for screw mounting. Various options as e.g. extended tem-

perature range –40...85°C or an alternative pinout provide

a high level of application specific engineering and design-

in flexibility.

Table of Contents

Page

Summary .......................................................................... 1

Type Survey and Key Data .............................................. 2

Type Key and Product Marking ........................................ 3

Functional Description ..................................................... 4

Electrical Input Data ......................................................... 5

Electrical Output Data ...................................................... 7

Page

Auxiliary Functions ......................................................... 12

Electromagnetic Compatibility (EMC) ............................ 13

Immunity to Environmental Conditions .......................... 15

Mechanical Data ............................................................ 16

Safety and Installation Instructions ................................ 17

Description of Option ..................................................... 20

1/20
