BPR20471J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> BPR20471J

BPR20471J: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 20W, 5%, 100ppm, 470ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size324KB，2 Pages; ManufacturerTT Electronics; Environmental Compliance

Download Datasheet Parametric View All

BPR20471J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BPR20471J	-	-	View	Buy Now

BPR20471J Overview

RESISTOR, METAL GLAZE/THICK FILM, 20W, 5%, 100ppm, 470ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

BPR20471J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1250800738
package instruction	PCB Mount,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	NON-INDUCTIVE, RATED AC VOLTAGE(V):300
structure	Rectangular
JESD-609 code	e3
Lead length	5.08 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	25.4 mm
Package length	50.8 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mount
Package width	1.02 mm
Rated power dissipation(P)	20 W
Rated temperature	70 °C
resistance	470 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	FLAT
Tolerance	5%
Operating Voltage	500 V

Preview

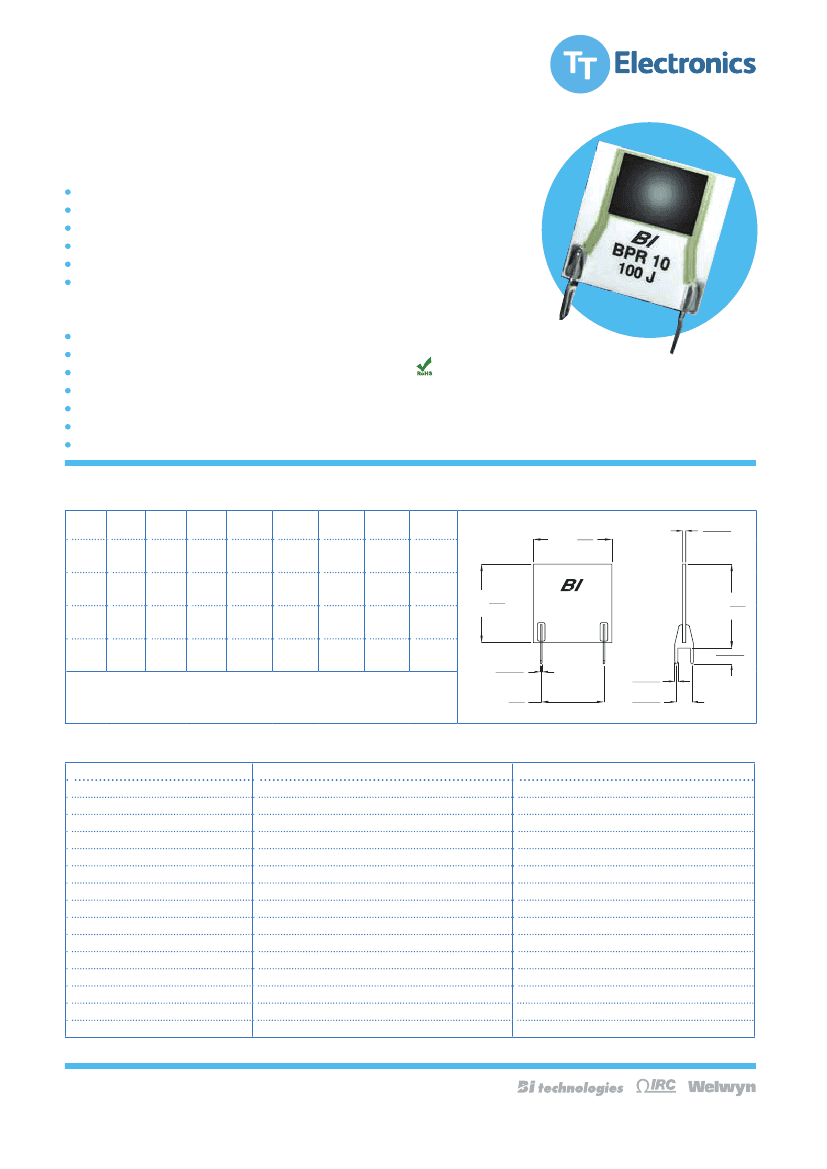

Download Datasheet

View All

Resistors

3W to 50W Planar Shock / Vibration

Proof High Power Resistors

BPR Series

Non-Inductive planar package

High power density.

Thin package for high density PCB installation.

Power dissipated above the board.

RoHS compliant.

Superior vibration durability

Make Possible

Applications

Ideal for extreme mechanically stressed environments.

Power supply pre-load resistors.

UPS systems

Snubber and pulse handling circuits.

Pulse generator load resistors.

In-rush current protection

Bleeder Resistors

All parts are Pb-free and comply with EU Directive 2011/65/EU (RoHS2)

Specification, Dimensions and Materials

Model

Dim A

Dim B

Dim C

Dim D

BPR 3

0.50

12.70

0.60

15.24

0.67

17.02

0.30

7.62

BPR 5

0.50

12.70

1.00

25.40

1.07

27.18

0.30

7.62

BPR 7

1.00

25.40

0.75

19.05

0.82

20.82

0.80

20.32

BPR 10

1.00

25.40

1.00

25.40

1.07

27.18

0.80

20.32

BPR 20

2.00

50.80

1.00

25.40

1.07

27.18

1.80

45.72

BPR 30

2.10

53.34

1.40

35.56

1.47

37.34

1.90

48.26

BPR 40

2.10

53.34

1.90

48.26

1.97

50.04

1.90

48.26

BPR 50

2.10

53.34

2.20

55.88

2.27

57.66

1.90

48.26

Dim. B

±.005

±0.13

Dim. A

±.005

±0.13

.040±.005

1.02±0.13

BPR

Dim. C

±.020

±0.51

Lead: Tin Plated Copper Alloy

Substrate: 96% Alumina

Resistor: Thick Film

Notes:

1. Contact factory for custom products, non-standard values and tolerances.

Items

Power Rating

Operating Voltage Max

Resistance Range

TCR

Tolerance

OperatiingTemp. Range

Dielectric Withstand Voltage

Mechanical Shock

Load Life

Humidity

Temperature Cycle

Solder Heat (Max)

Solderability

Insulation Resistance

Vibration

Specification

3W, 5W, 7W, 10W, 20W, 30W, 40W & 50W,

300Vac, 500VDC

0.1Ω to 200 KΩ

100 ppm/°C

+/-5%, optional 1%, 2%

-55 - +155 °C

5KV minimum

ΔR +/- 0.25 %

ΔR +/- 2.0 %

ΔR +/- 0.5 %

ΔR +/- 0.5%

ΔR +/- 0.25 %

Min 95% coverage

Over 1000 MΩ

ΔR +/- 0.25 %

.020±.005

0.51±0.13

Dim. D

±.015

±0.38

.200±.020

5.08±0.51

.040±.005

1.02±0.13

.200±.002

5.08±0.05

Conditions

@ ambient temp < 70°C

Extended resistance range available.

For -55 to +155°C and above 1Ω

100G.

70°C, 90 min. ON, 30 min.OFF, 1000 hours.

85°C, 85% RH, DC 0.1W, 1000 hours.

-55°C, 30 min.,+155°C 30min., 5cycles.

250+/-5°C, 10 seconds,

230+/-5°C, 5 seconds.

Between terminals and metal back plate.

20G, 10Hz to 2 KHz.

Specifications subject to change without notice

General Note

TT Electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.

www.ttelectronicsresistors.com

07.14
