A-DF25AA-T-B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> A-DF25AA-T-B

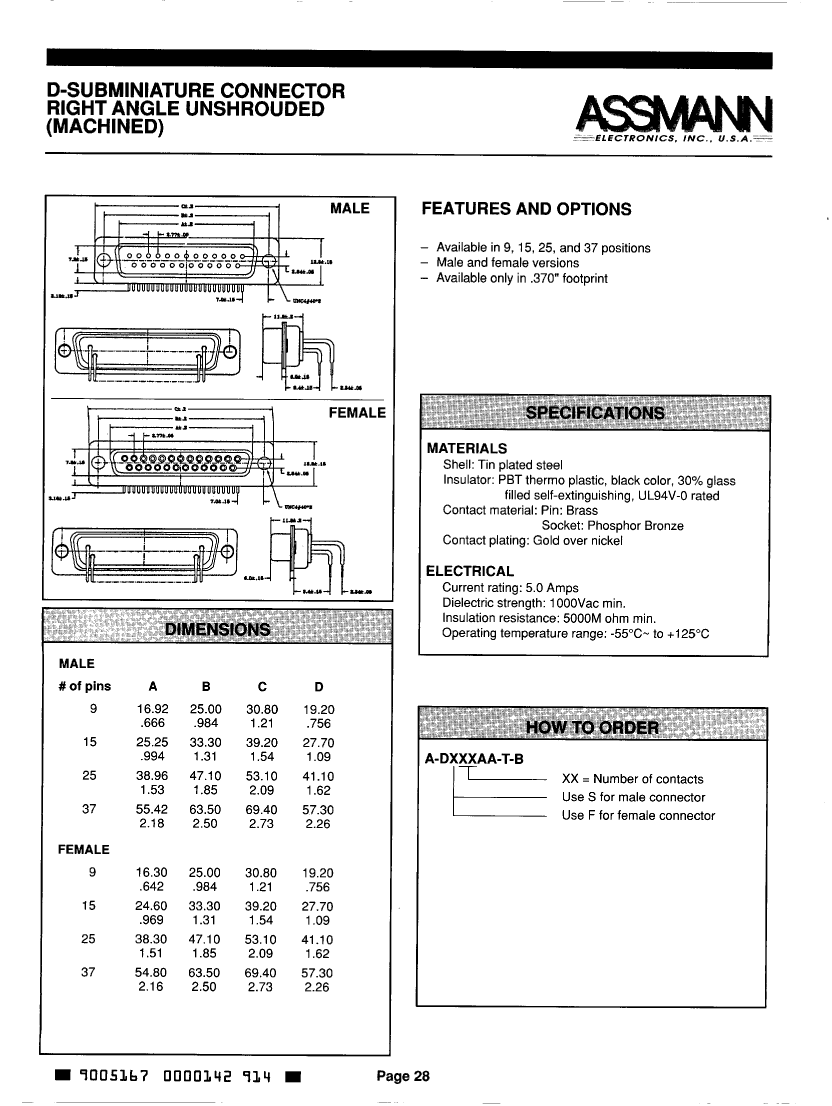

A-DF25AA-T-B: DescriptionD Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/

Download Datasheet Parametric Compare View All

A-DF25AA-T-B Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Plug

A-DF25AA-T-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ASSMANN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	AVAILABLE .370 FOOTPRINT ONLY
body width	0.498 inch
subject depth	0.629 inch
body length	2.09 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VDC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A-D
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.131 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
Base Number Matches	1

Preview

Download Datasheet

View All

A-DF25AA-T-B Related Products

	A-DF25AA-T-B	A-DF37AA-T-B	A-DF09AA-T-B	A-DS09AA-T-B	A-DS15AA-T-B	A-DF15AA-T-B	A-DS25AA-T-B	A-DS37AA-T-B
Description	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Plug	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Plug	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Receptacle	D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Receptacle	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Plug	D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Receptacle	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Receptacle
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	AVAILABLE .370 FOOTPRINT ONLY	AVAILABLE .370 FOOTPRINT ONLY	AVAILABLE .370 FOOTPRINT ONLY	AVAILABLE .370 FOOTPRINT ONLY	AVAILABLE .370 FOOTPRINT ONLY	AVAILABLE .370 FOOTPRINT ONLY	AVAILABLE .370 FOOTPRINT ONLY	AVAILABLE .370 FOOTPRINT ONLY
body width	0.498 inch	0.498 inch	0.498 inch	0.498 inch	0.498 inch	0.498 inch	0.498 inch	0.498 inch
subject depth	0.629 inch	0.629 inch	0.629 inch	0.629 inch	0.629 inch	0.629 inch	0.629 inch	0.629 inch
body length	2.09 inch	2.73 inch	1.21 inch	1.21 inch	1.54 inch	1.54 inch	2.09 inch	2.73 inch
Body/casing type	PLUG	PLUG	PLUG	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	MALE	MALE	FEMALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	BRASS	BRASS	PHOSPHOR BRONZE	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A-D	A-D	A-D	A-D	A-D	A-D	A-D	A-D
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.131 inch	0.131 inch	0.131 inch	0.131 inch	0.131 inch	0.131 inch	0.131 inch	0.131 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	37	9	9	15	15	25	37
Base Number Matches	1	1	1	1	1	1	-	-
