D38999/20W-J-11PA datasheet, PDF

Datasheet> All Categories > The connector> The connector> D38999/20W-J-11PA

D38999/20W-J-11PA: DescriptionMIL Series Connector, 11 Contact(s), Metal, Male, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerHiRel Connectors Inc; Websitehttps://hirelco.net

Download Datasheet Parametric View All

D38999/20W-J-11PA Overview

MIL Series Connector, 11 Contact(s), Metal, Male, Crimp Terminal, Receptacle

D38999/20W-J-11PA Parametric

Parameter Name	Attribute value
Maker	HiRel Connectors Inc
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-38999, COMPATIBLE CONTACTS: M39029/58-363, M39029/58-528
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	D38999/20
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	METAL
Housing size	J
Termination type	CRIMP
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

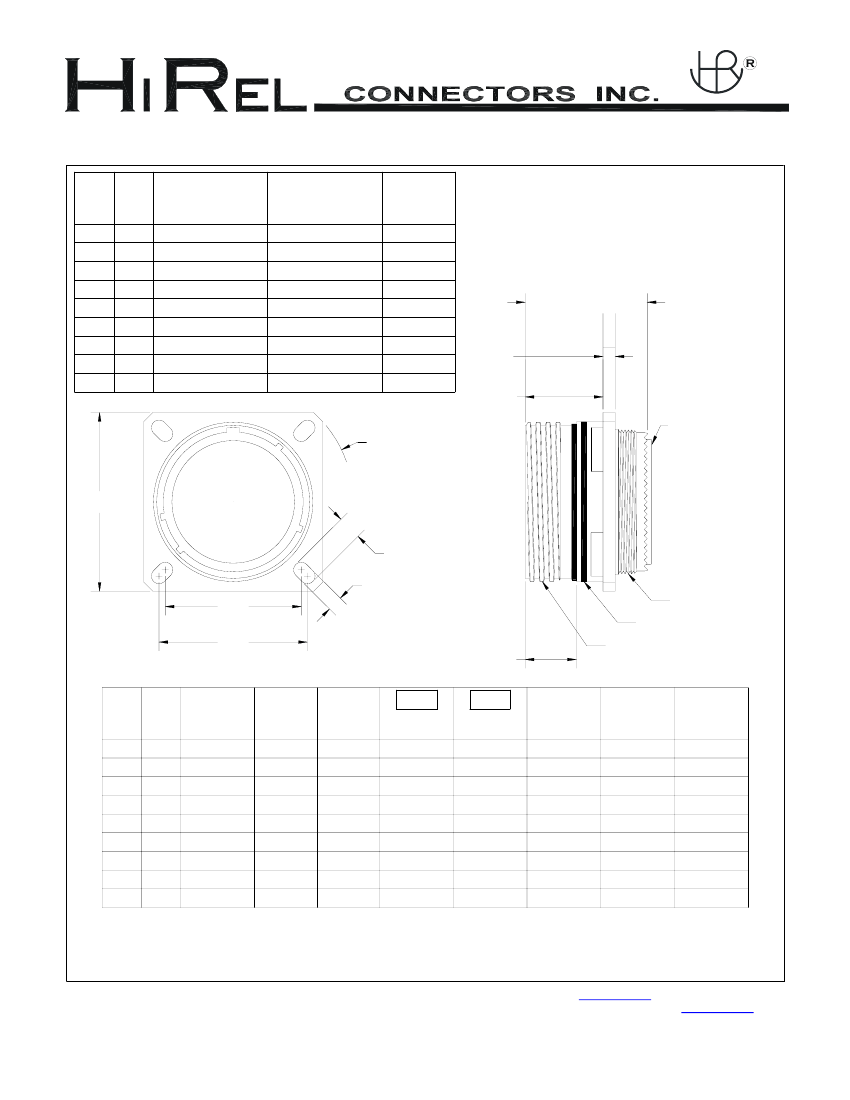

D38999/20

Square Flange Wall Mount Environment Resistant Receptacle

SHELL SHELL

SIZE

SIZE CODE

MIL-DTL-38999

Series III – Threaded Coupling

.144/.083 [3.65/2.10]

.171/.083 [4.35/2.10]

VV Thd

-6g 0.100R

M12 x 1.0

M15 x 1.0

M18 x 1.0

M22 x 1.0

M25 x 1.0

M28 x 1.0

M31 x 1.0

M34 x 1.0

M37 x 1.0

.098/.083 [2.5/2.1]

.126/.083 [3.2/2.1]

1.240 [31.5] MAX

<3>

<4>

<3>

<4>

SEE CONTACT

STYLE

DESIGNATOR

ON ORDERING

INFORMATION

PAGE

CHAMFERED OR

ROUNDED 4 PL

2 PL

4 PL

ØP

4 PL

2 PL

VV Thd

BLUE BAND

.520/.500 [13.2/12.7]

(FULLY MATED INDICATOR BAND - RED)

BB Thd

SHELL SHELL

SIZE

CLASS 2A

SIZE CODE

0.1P-0.3L-TS

<1>

<2>

<3>

<4>

BB Thd

.6250

.7500

.8750

1.0000

1.1875

1.2500

1.3750

1.5000

1.6250

ØP

±.008

[±0.20]

±.008

[±0.20]

<1>

.719 [18.26]

.812 [20.62]

.906 [23.01]

.969 [24.61]

<2>

.594 [15.09]

.719 [18.26]

.812 [20.62]

.906 [23.01]

.969 [24.61]

±.012

[±0.3]

.938 [23.8]

1.031 [26.2]

1.125 [28.6]

1.219 [31.0]

1.312 [33.3]

1.438 [36.5]

1.562 [39.7]

1.688 [42.9]

1.812 [46.0]

+.000/-.049

[+0.00/-1.25]

.820 [20.83]

.790 [20.07]

+.055/-.000

[+1.4/-0.0]

.768 [19.5]

.736 [18.7]

.128 [3.25] .216 [5.49]

.128 [3.25] .194 [4.93]

.128 [3.25] .194 [4.93] 1.062 [26.97]

.128 [3.25] .194 [4.93] 1.156 [29.36] 1.062 [26.97]

.128 [3.25] .194 [4.93] 1.250 [31.75] 1.156 [29.36]

.154 [3.91] .242 [6.15] 1.375 [34.93] 1.250 [31.75]

.154 [3.91] .242 [6.15] 1.500 [38.10] 1.375 [34.93]

FRONT OR REAR PANEL MOUNTING

REAR PANEL MOUNTING ONLY

FOR CLASS F, G, K, S, & W

FOR CLASS J & M

DIMENSIONS ARE IN INCHES [MILLIMETERS]

United States

– 760 W. Wharton Drive, Claremont CA. 91711

▪

Ph: 909-626-1820

▪

FAX: 909-399-0626

▪

Web:

www.HIRELCO.com

Europe

– 5 Rue Des Longues Raies, Z.I. Des Garennes, 78440; Gargenville, France

▪

Ph: 33(0) 1-309-38999 or U.K. 44(0)1-980-843887

▪

FAX 33(0) 1-309-38913

▪

Web:

www.HIRELCO.com

C-13
