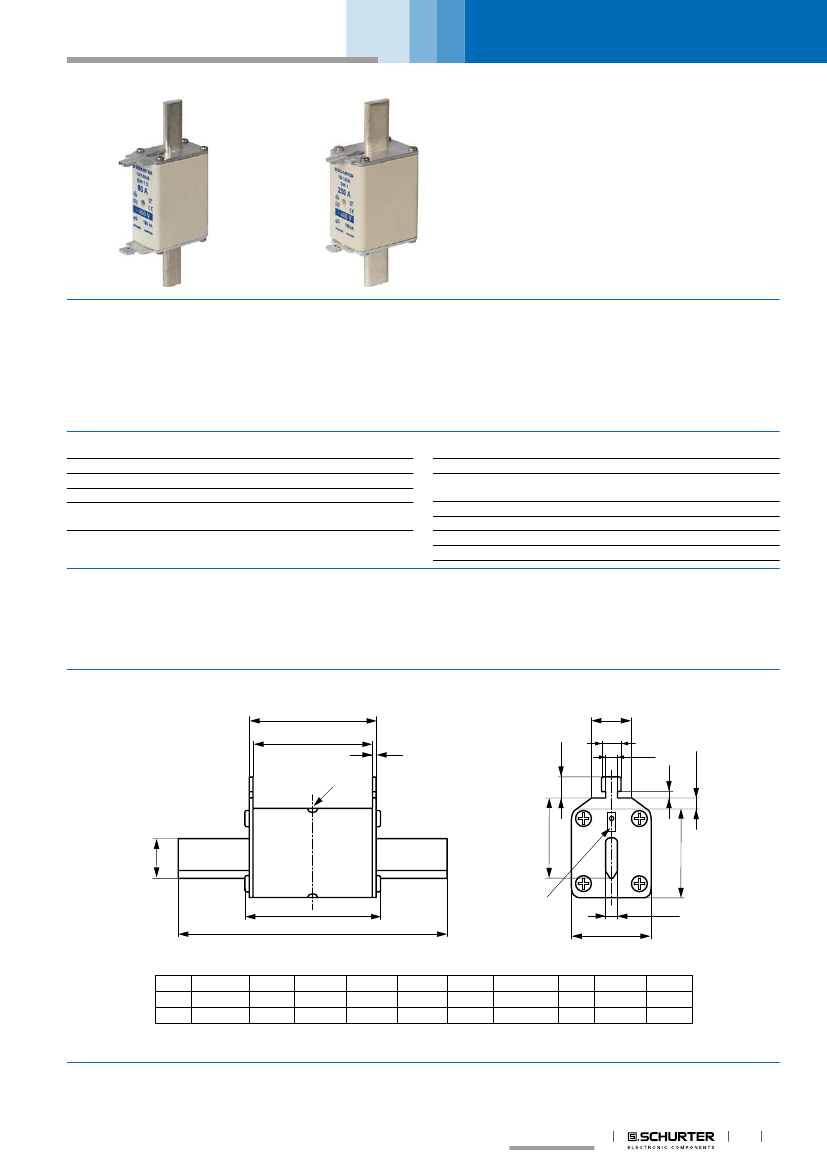

Fuse NH-DIN1-DIN1C 400V
NH-DIN 1 - DIN 1C 400V
Description
-
-
-
-
-
-
-
Characteristic gG (gL)
According to IEC 269
According VDE 0636
energy saving
Selectivity 1:1.25
Removal tags energized
Dimensions accroding to DIN 43620
Weblinks
pdf-datasheet, html-datasheet, CE declaration of conformity, RoHS,
REACH, SCHURTER-Stock-Check, CAD-Drawings, Detailed request for
product
Technical Data
Rated Current In
Rated Voltage
Breaking Capacity
Rated Power Operating Fre-
quency fe
35- 250 A
400 VAC
100 kA
50 Hz
Contact blade
Characteristic resistance
Indicator
Basic Design
Insulator
Metal components
Full contact blades, Cu silvered
even with alternating load
nonagin to VDE 0636
Combi indicator
Ceramic
corrosion-resistant (rustproof)
Power Dissipation (Watt) operating temperature max.
The power dissipation is the so called power loss at rated current load and operation temeperature acc. VDE 0636 . It is to be measeured in Watt at
AC condition. The voltage tap is to be assured that the power dissipation of the blade contacts are included. This means the measure contact need
to be applied at the ends of the blade contacts. The standard VDE 0636 part 1 and 2 requires that following maximal permissiable power losses are
not exceeded.
Dimensions
a4
10
-1
a3
d
1)
e3
10
-0.3
3
-0.5
c1
2)
e2
6
±0.2
a4
68 ±2,5
68 ±2,5
b1
20 +0,2
15 +0,2
c1
40 ±0,8
40 ±0,8
d
2,5 +1,5/-0,5
2,5 +1,5/-0,5
e1
49
41
e2
40 ±0,65
30 -1,0
e3
20 +5/-2
20 +5/-2
b1
a2
a1
DIN
1
1C
a1
135 ±2,5
135 ±2,5
a2
75 -10
75 -10
a3
62 ±2,5
62 ±2,5
1) Centre indicator
2) Flat indicator
other products
e1
2 min.
6
-0.3
1
Heavy current*
www.schurter.com/PG13_14_15
NH-DIN 1 - DIN 1C 400V

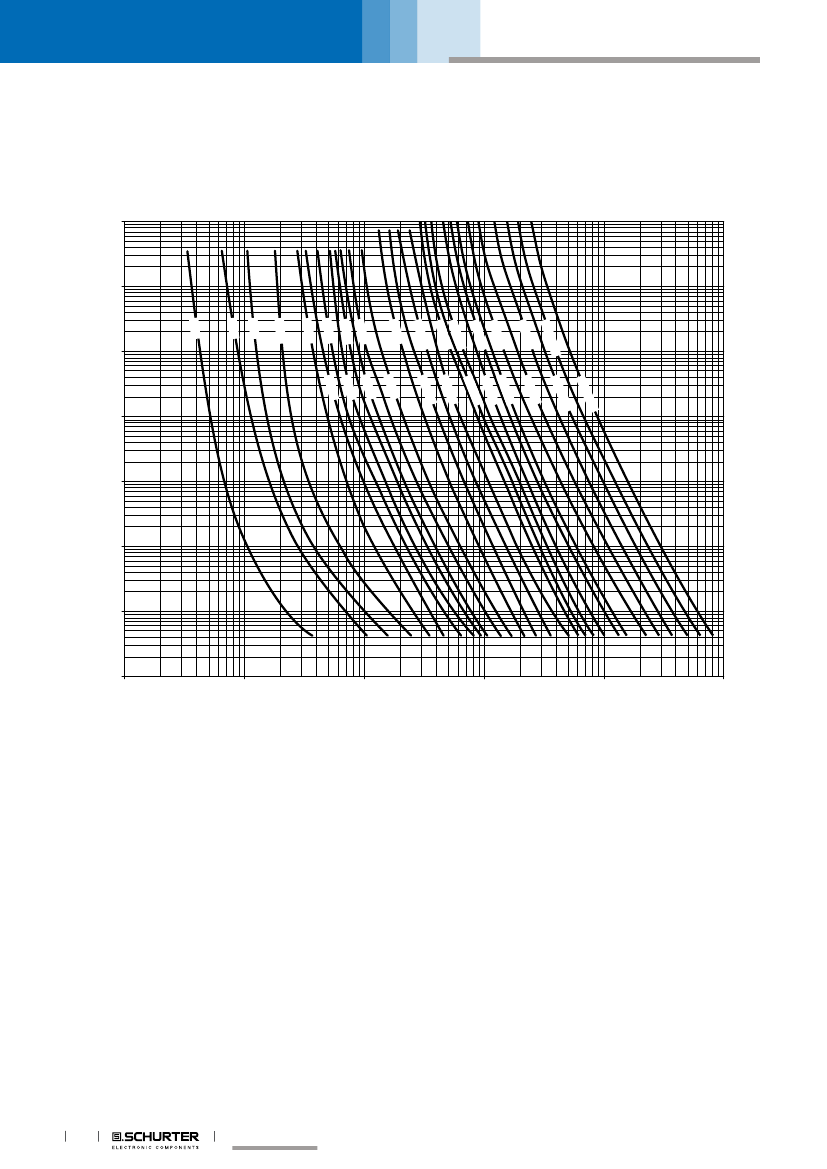

Current limiting diagram
100
80
0A
160
0A
125 1000 A
A
0A
630
A
400
A
315 A
224
A
160
A
100
63 A
40 A
32 A
20 A
10
A
500
A
355
A
250
A
200
A
125
80 A
50 A
35 A
25 A
16 A
6A
1
χ
=
2
χ
=
1.
6
χ
=
1
0.1
0.1
1
I
P
in Ka
10
100

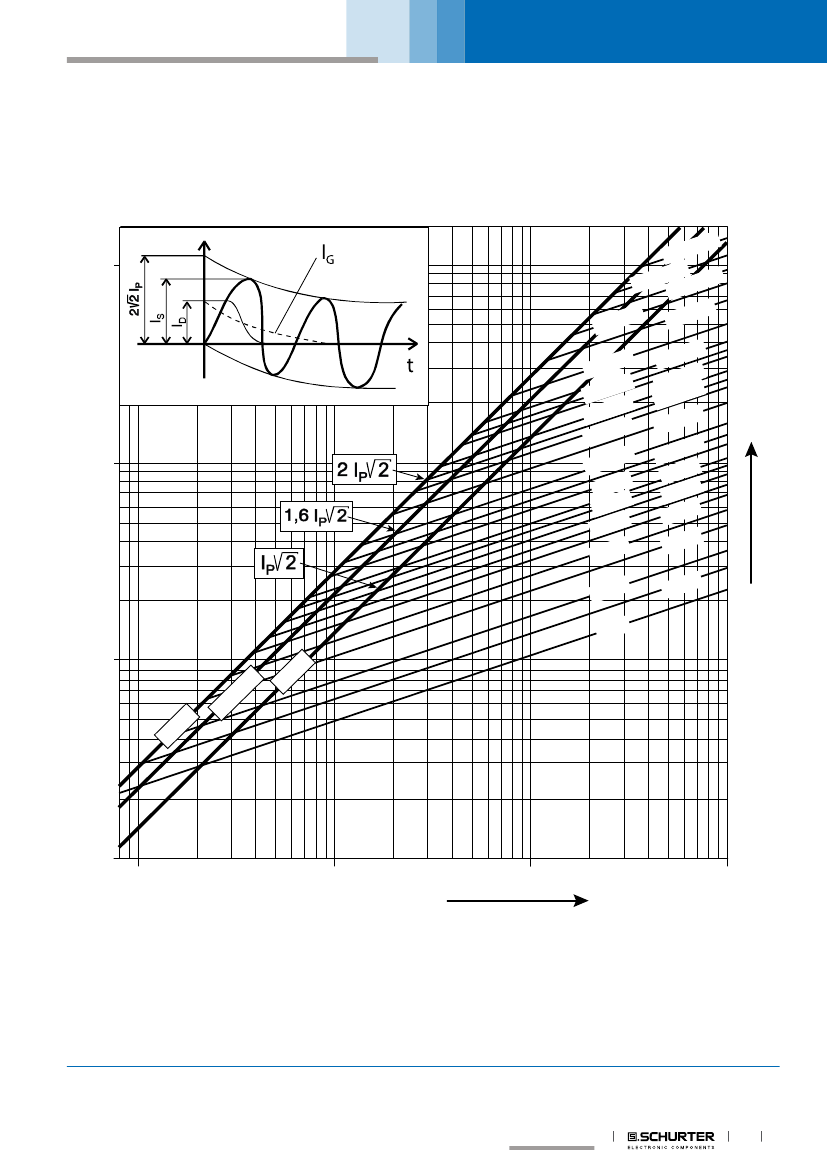

The prospective short circuit current is the value of the current, that would flow if there was no protection in the circuit.
ID
Let-through courrent
IG
Value of DC component
IP
Prospective short-circuit current
IS
Short-circuit peak current
X
Factor (X=2 für cosφ=0; X=1 für cosφ=1)
other products
I
D
in Ka
3
10 A
NH-DIN 1 - DIN 1C 400V
All Variants
Rated current
[A]
35
40
50
63
80
100
100
125
125
160
160
200
224
250
Style
[Compact]
C
C
C
C
C
-
C
-
C
-
C
-
-
-
Power Loss
[W]
3.8
4.0
4.6
5.8
6.1
8.6
8.6
8.9
8.9
8.3
8.3
13.4
14.5
15.8
1301.0231
1301.0232
1301.0233
1301.0234
1301.0235
1301.0223
1301.0236
1301.0224
1301.0237
1301.0225
1301.0238
1301.0226
1301.0227
1301.0228
Order Number
Heavy current*
www.schurter.com/PG13_14_15
E-No
840401139
840401149
840401159
840401179
840401199
840601209
840401209
840601219
840401219
840601239
840401239
840601249
840601259
840601269
Availability for all products can be searched real-time:http://www.schurter.com/Stock-Check/Stock-Check-SCHURTER
Packaging unit
3 Pcs
4
other products
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
07.07.2016
