4118R-2-362FLF

Description
Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.125W, 3600ohm, 100V, 1% +/-Tol, -100,100ppm/Cel, 9631,
CategoryPassive components    The resistor
File Size219KB,2 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Environmental Compliance
Download Datasheet Parametric View All

4118R-2-362FLF Overview

Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.125W, 3600ohm, 100V, 1% +/-Tol, -100,100ppm/Cel, 9631,

4118R-2-362FLF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid913836694
Reach Compliance Codenot_compliant
ECCN codeEAR99
YTEOL7.25
structureMolded
JESD-609 codee3
Lead length3.43 mm
lead spacing2.54 mm
Network TypeBussed
Number of terminals18
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height4.57 mm
Package length24.51 mm
Package formDIP
Package width7.87 mm
Rated power dissipation(P)0.125 W
resistance3600 Ω
Resistor typeARRAY/NETWORK RESISTOR
series4100R(BUS,1%)
size code9631
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient100 ppm/°C
Terminal surfaceMatte Tin (Sn)
Tolerance1%
Operating Voltage100 V
oH
VE S CO
AV R M
AI SIO PL
LA N IA
BL S NT
E
Features
RoHS compliant* versions available (see
How to Order “Termination” option)
Compatible with automatic insertion
equipment
Superior package integrity
Marking on contrasting background for
permanent identification
Now available with improved tolerance
to ±0.5 %
*R

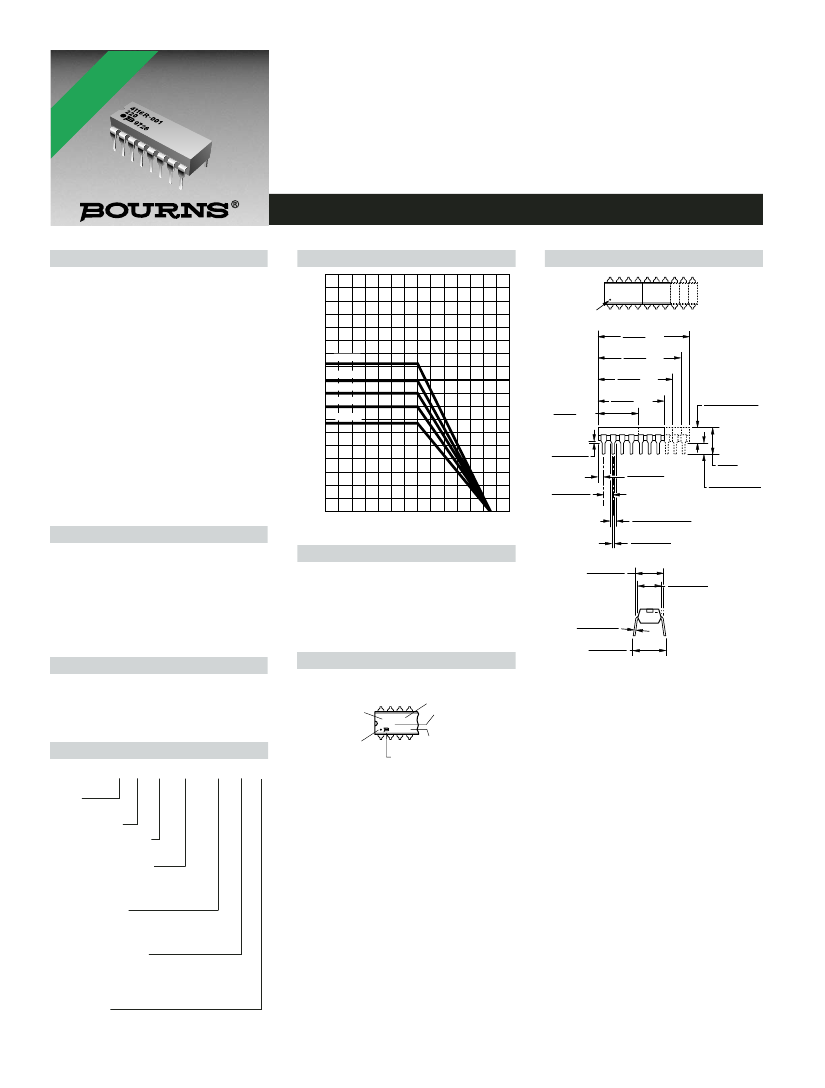

4100R Series - Thick Film Molded DIPs
Product Characteristics
Resistance Range
......................10 ohms to 10 megohms
Maximum Operating Voltage..........100 V
Temperature Coefficient of Resistance
50
to 2.2 MΩ................±100 ppm/°C
below 50
......................±250 ppm/°C
above 2.2 MΩ..................±250 ppm/°C
TCR Tracking .........................50 ppm/°C
maximum; equal values
Resistor Tolerance ................See circuits
Operating Temperature
.................................-55 °C to +125 °C
Insulation Resistance
..................10,000 megohms minimum
Dielectric Withstanding Voltage
.............................................200 VRMS
Lead Solderability
.....Meet requirements of MIL-STD-202
Method 208
Environmental Characteristics
TESTS PER MIL-STD-202.........∆R MAX.
Short Time Overload..................±0.25 %
Load Life ....................................±1.00 %
Moisture Resistance ..................±0.50 %
Resistance to Soldering Heat
................................................±0.25 %
Terminal Strength.......................±0.25 %
Thermal Shock...........................±0.25 %
Physical Characteristics
Flammability .........Conforms to UL94V-0
Lead Frame Material
..........................Copper, solder coated
Body Material ..................Novolac epoxy
How To Order
Package Power Temp. Derating Curve
G CU
4.00
Product Dimensions
PIN #1 REF.
3.50
3.00
2.50
2.00
1.50
1.00
.50
4120R
4118R
4116R
4114R
4108R
11.81
MAX.
(.465)
27.05
MAX.
(1.065)
24.51
MAX.
(.965)
21.97
MAX.
(.865)
19.43
MAX.
(.765)
WATTS
4.57 + .12/ - .28
(.180 + .005/ - .007)
.89
±
.25
(.035
±
.010)
TYP.
0
25
70
125
AMBIENT TEMPERATURE (
°
C )
2.54
±
.25
(.100
±
.010*)
TYP.
NON-ACCUM.
2.03
±
.12
(.080
±
.005)
8.40
MAX.
(.331)
3.43 + .38/ - .25.
(135 + .015/ - .010)
1.65 + .12/ - .07
(.065 + .005/ - .003)
.438
±
.050
TYP.
(.019
±
.002)
Package Power Rating at 70 °C
4108R......................................1.69 watts
4114R......................................2.00 watts
4116R......................................2.25 watts
4118R......................................2.50 watts
4120R......................................2.80 watts
Typical Part Marking
Represents total content. Layout may vary.
PART
NUMBER
4114R-1-
152
YYWW
7.87
±
.25
(.310
±
.010)
TO OUTSIDE
WHEN PINS
ARE PARALLEL
.254
±
.050
(.010
±
.002)
8.64
±
.50
(.340
±
.020)
6.71
±
.10
(.260 + .005)
(.260
- .000)
Governing dimensions are in metric. Dimensions in parentheses
are inches and are approximate.
*Terminal centerline to centerline measurements made at point of
emergence of the lead from the body.
CIRCUIT
RESISTANCE
CODE
DATE CODE
PIN ONE
INDICATOR
41 14 R - 1 - 152 __ __
Model
(41 = Molded DIP)
Number of Pins
Physical Configuration
(R = Thick Film Low Profile)
Electrical Configuration
• 1 = Isolated
• 2 = Bussed
• 3 = Dual Terminator
Resistance Code
• First 2 digits are significant
• Third digit represents the
number of zeros to follow.
Resistance Tolerance
• Blank = ±2 % (see “Resistance Tolerance” on
next page for resistance range)
• F = ±1 % (100
- 1 MΩ)
• D = ±0.5 % (100
- 1 MΩ)
Terminations
• LF = Tin-plated (RoHS compliant version)
• Blank = Tin/Lead-plated
Consult factory for other available options.
MANUFACTURER'S
TRADEMARK
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
