SPECIFICATIONS
Current Rating:
Voltage Rating:
Contact Resistance:
Insulation Resistance:
Pin:
Clip:
Sleeve Plating:
Contact Plating:
Insulator:
Insertion Force:
Withdrawal Force:
Life Cycle:
Operating Temp:
Soldering Temp:
3 Amps/Contact max.
60VAC/DC
≤4mΩ/contact
≥10000MΩ
at V=100V
Brass, Machines CuZn38Pb2
Beryllium Copper, Heat Treated
Tin or Gold Plating
Tin or Gold Plating
PPS UL94V-0, Black
60g min
15g max
200
-55C to +105C (gold plating)
-40C to +105C (Tin Plating)
+260C, 10s max
B
C
D
D
E
E
Series
SIP
SIP Socket
F
Version
DNS
See drawing
Contacts
XX
01-40
Type
ST
ST=Straight
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Pin Plating
XXXX
PTNXX=Tin
XX=2, 5µ”
PGD2=2µ Gold
Clip Plating
XXXX
CTNXX=Tin
XX=2, 5µ”
CGD2=2µ Gold
F
Date
04/18/’13
04/18/’13
04/18/’13 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
SIP-DNS440-XX-ST-XXXX-XXXX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3°
UNIT: mm
5
6

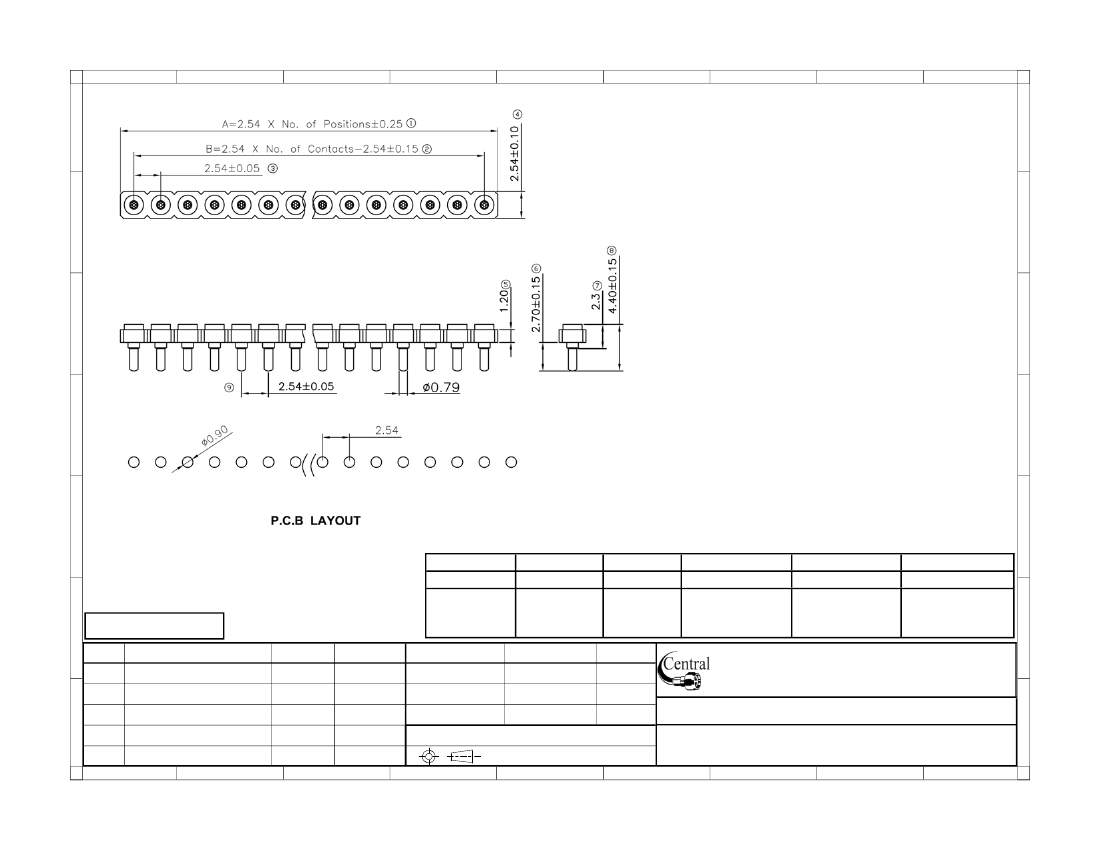

Description: 2.54mm SIP Socket single row straight 4.4mm pin
