EuroMag Series PCB Mount Terminal Blocks
EM9127 Series
Euro-Mag Terminal Blocks
7.50 Centers; Modular
SPECIFICATIONS
Rating:
30A, 300V
Center Spacing:
0.29” (7.50mm)
Wire Range:
#10-24 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Brass Tin-Plated
Cage Clamp:
Brass, Nickel-Plated
Screw Size:
M3.5 Steel Nickel-Plated
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating:
5.5 lb-in.
Recommended PCB Hole Diameters:
0.071" (1.80mm)
Construction:
Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
EM912705

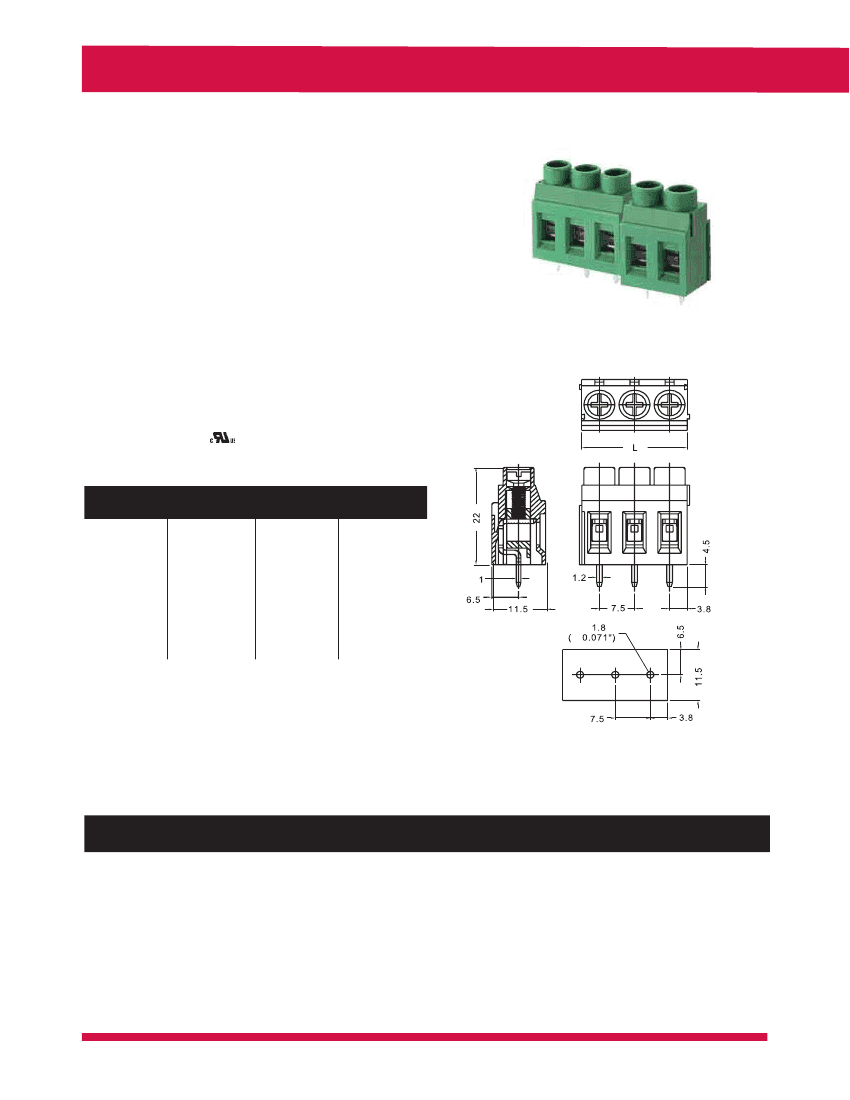

Dimensions - mm (in)
Poles
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
15.0
22.5
30.0
37.5
45.0
52.5
60.0
67.5
75.0
82.5
90.0
97.5
Poles
14
15
16
17
18
19
20
21
22
23
24
L (mm)
105.0
112.5
120.0
127.5
135.0
142.5
150.0
157.5
165.0
172.5
180.0
PCB Hole Layout
Ø
Ø
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
E M 9 1 27
IIIIII II
02
to
24
