5081-2-14-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5081-2-14-1

5081-2-14-1: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Female, 0.2 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size168KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5081-2-14-1 Overview

Board Connector, 14 Contact(s), 1 Row(s), Female, 0.2 inch Pitch, Crimp Terminal, Locking, Plug

5081-2-14-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307312905
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.317 inch
subject depth	0.63 inch
body length	2.8 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
maximum insertion force	19.5712 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	5081
Plug contact pitch	0.2 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	14
Evacuation force-minimum value	4.8928 N

Preview

Download Datasheet

View All

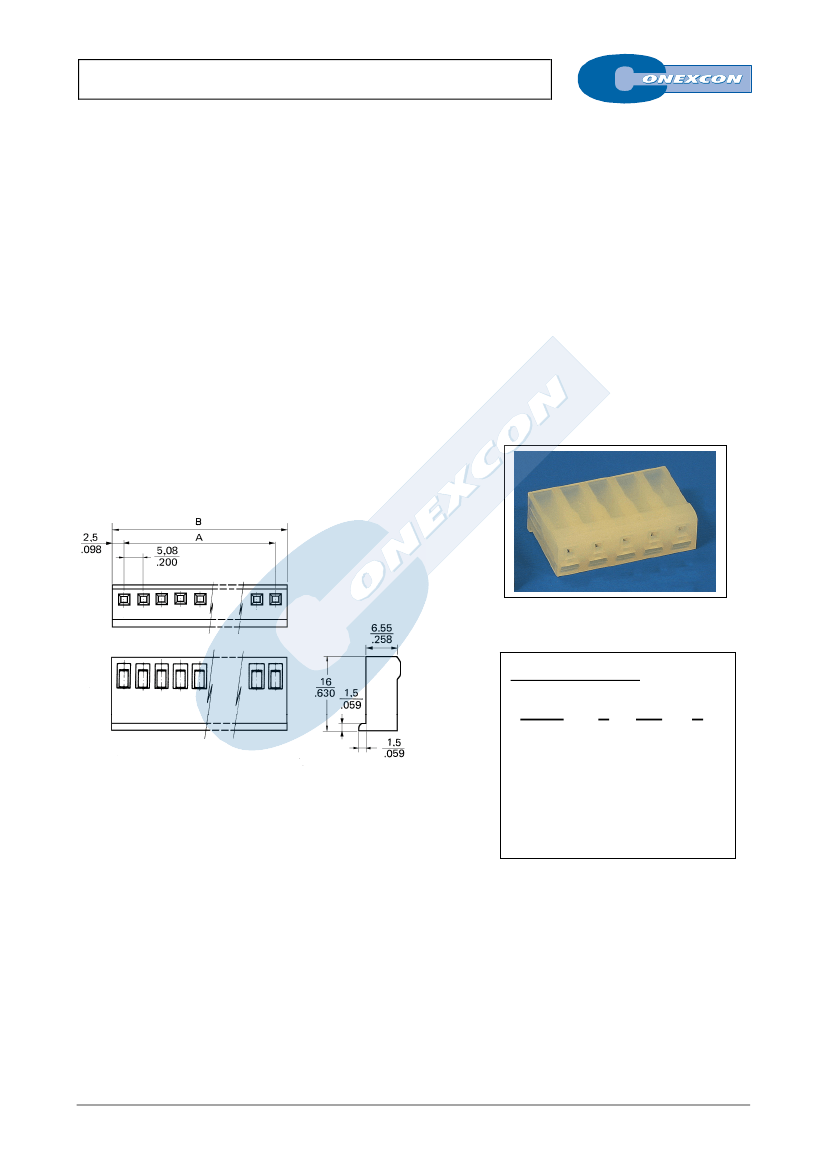

SINGLE ROW CRIMP CONNECTOR HOUSING

5081 SERIES.

5.08 mm (0.200”) pitch.

General Features

Electrical Features



Available in 2, through 16 circuits

Mates with 5.08 mm pitch headers 5082, 5083 and 5084

series and 1.14 mm square/round pin headers 5086,

5087, 5088, 5071, 5072 and 5075 series



Polarised with locking ramp

Use crimp terminal 3933 and 3934



Voltage rating: < 250V

Current rating: < 5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: Nylon 66 UL 94 V-0

Operating temperature: -40ºC to +105ºC

RoHS compliant

Mechanical Features



Contact retention force to the housing: > 2.00 Kgf



Insertion force to header: < 1.25 Kgf/pin



Insertion force to header: < 2.00 Kgf/pin



Withdrawal force from header: < 0.50 Kgf/pin



Durability: 25 cycles

Dimension Information

Ordering Information:

5081 -

XX-

1. Connector Series

3. (XX) Number of circuits



Available in 2 through 16 circuits

Dimensions:

(In mm.)

= 5.08 x (XX*-1)

= 5.08 x (XX)

* XX

(Number of circuits)

E-XX
