D30X4000-32306EFT-G datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> D30X4000-32306EFT-G

D30X4000-32306EFT-G: DescriptionParallel - Fundamental Quartz Crystal, 30MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size671KB，3 Pages; ManufacturerDB Lectro Inc; Environmental Compliance

Download Datasheet Parametric View All

D30X4000-32306EFT-G Overview

Parallel - Fundamental Quartz Crystal, 30MHz Nom, SMD, 4 PIN

D30X4000-32306EFT-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1356742947
package instruction	SMD, 4 PIN
Reach Compliance Code	unknown
Other features	AT-CUT; TR, 7 INCH
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.01%
frequency tolerance	30 ppm
load capacitance	32 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	30 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L7.0XB5.0XH1.2 (mm)/L0.276XB0.197XH0.047 (inch)
Series resistance	40 Ω
surface mount	YES

Preview

Download Datasheet

View All

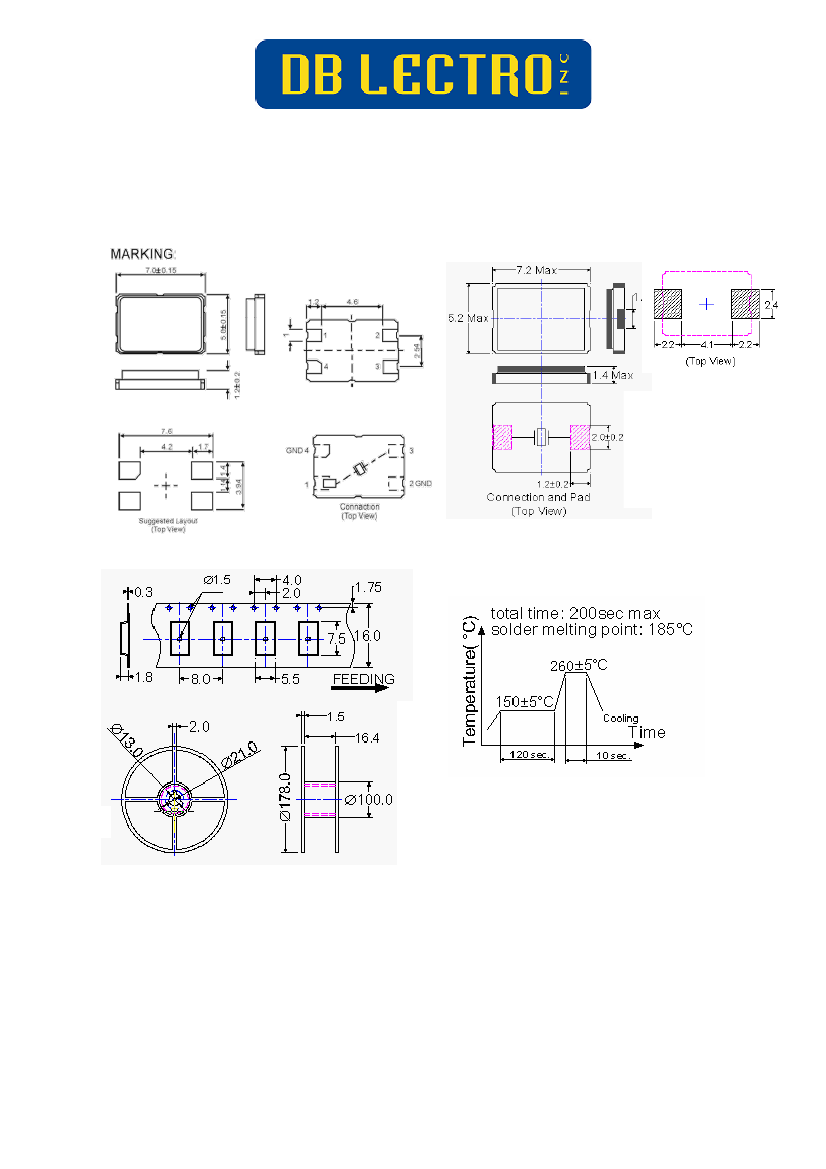

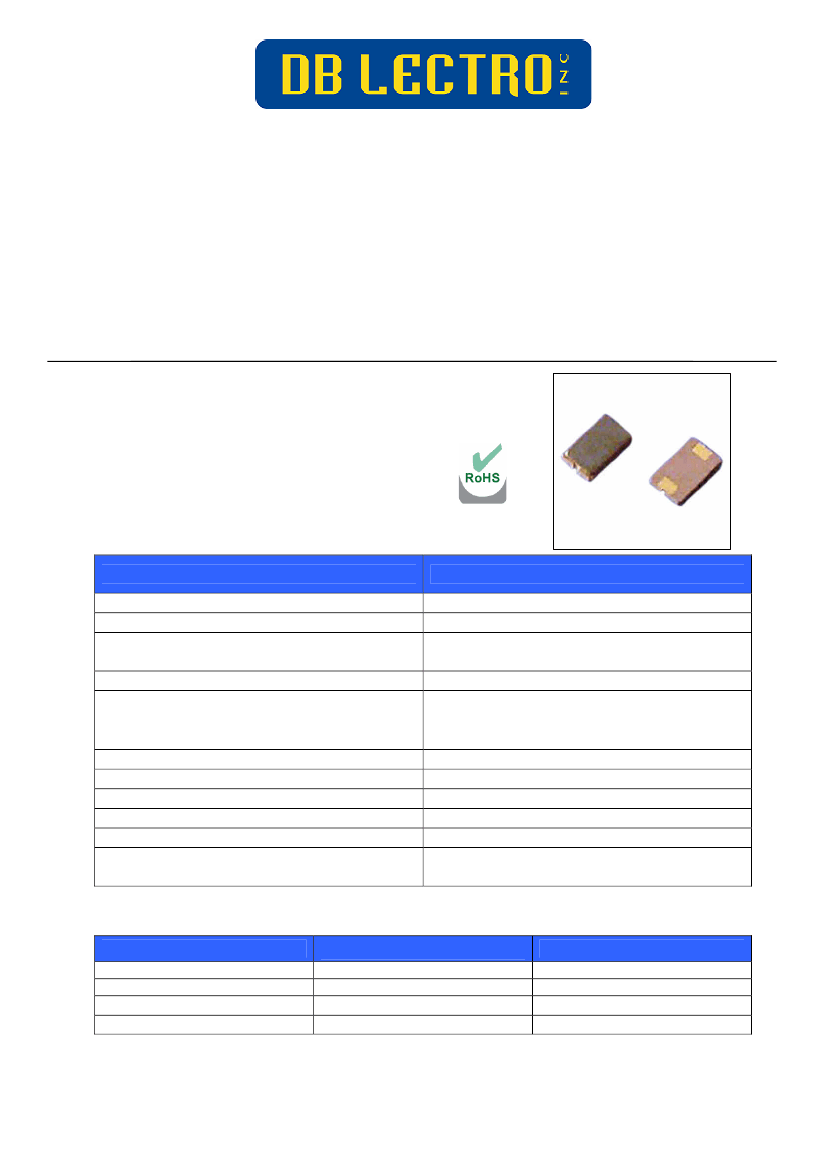

QUARTZ CRYSTAL UNIT

HOLDER CODE X2 & X4 GLASS SEALED CERAMIC 7.0X5.0mm SURFACE MOUNT PACKAGE

FEATURE



Small SMD type crystal unit



High reliable environmental performance



Automatic mounting



Reasonable cost



Lead Free & RoHS Compliant

ELECTRICAL SPECIFICATIONS

Output Frequency Range

Mode

Frequency Tolerance (at 25°C)

Frequency

Stability

Over

Temperature Characteristics

Storage Temperature Range

Operating Temperature Range

Shunt Capacitance (C0)

Driver Level (Typical)

Load Capacitance(C

)

E u a n S r s e ia c E R( )

q i l t ei R s tn e S Ω

Aging @25°CV

year (Max)

Shock Resistance

8.000 MHz to 80.000 MHz

see Table 1*

±30ppm , ±50ppm, or specify

Operating

±30ppm, ±50ppm, or specify

-55

°C

to +125

°C

-10

°C

to + 60

°C

-20°C ~+70°C

-40°C ~+85°C

5.0 pF Max

10µW~100µW

Series, 16pF, 20pF, 30pF, 32pF, or specify

see Table 1*

±3ppm, ±5ppm/year

Drop test of 3 times on 2mm stainless plate

from 75cm height

REMARK:

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER.

FREQUENCIES AND EQUIVALENT SERIES RESISTANT

Frequency Range

8.000 MHz ~ 10.000 MHz

10.000 MHz ~ 30.000 MHz

30.000 MHz ~ 45.000 MHz

45.000 MHz ~ 80.000 MHz

E.S.R. (Ω)

70 Max

40 Max

60 Max

50 Max

Mode

Fundamental / AT

Third Overtone / AT

DB Lectro Inc. 3755 Place Java, Suite 140, Brossard, Québec, J4Y 0E4, Canada - T: 1-450-444-1424 / F: 1-450-444-4714 / www.dblectro.com
