57-60360R datasheet, PDF - EEWORLD Datasheet

57-60360R: DescriptionD Type Connector, 36 Contact(s), Female, Wire Terminal, Bail Mt M, Plug; CategoryThe connector The connector; File Size188KB，3 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

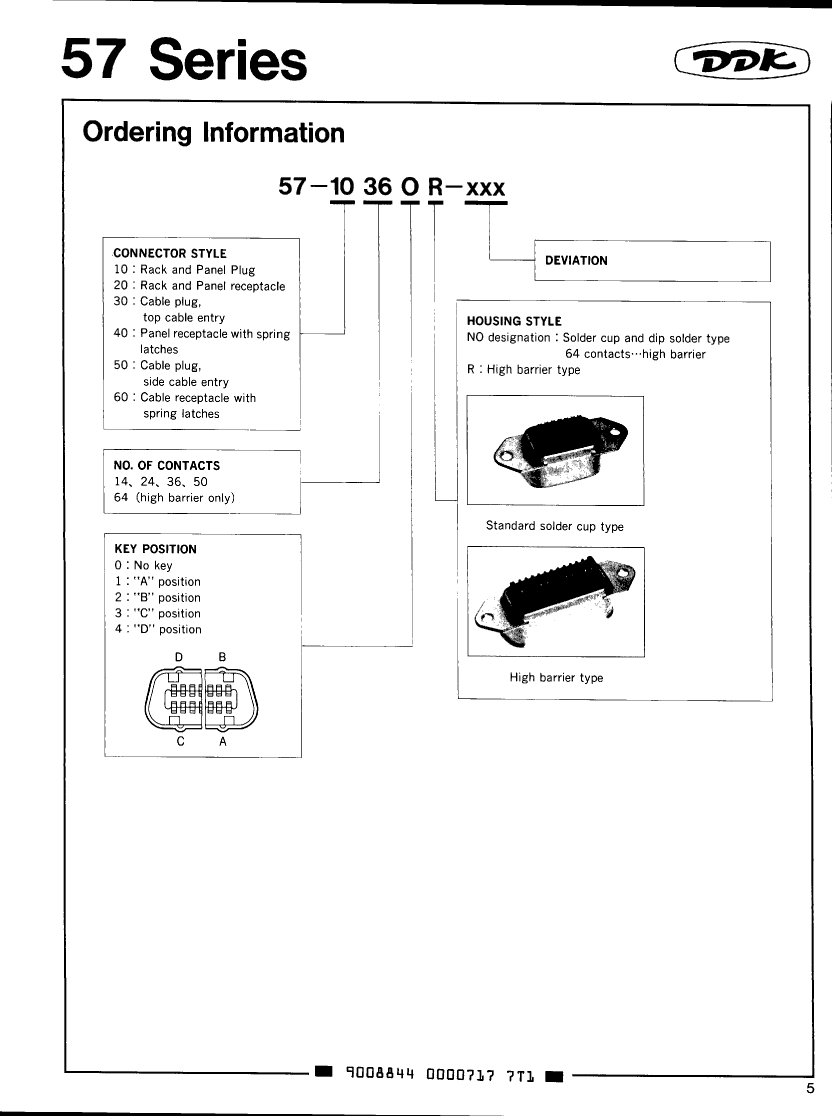

57-60360R Overview

D Type Connector, 36 Contact(s), Female, Wire Terminal, Bail Mt M, Plug

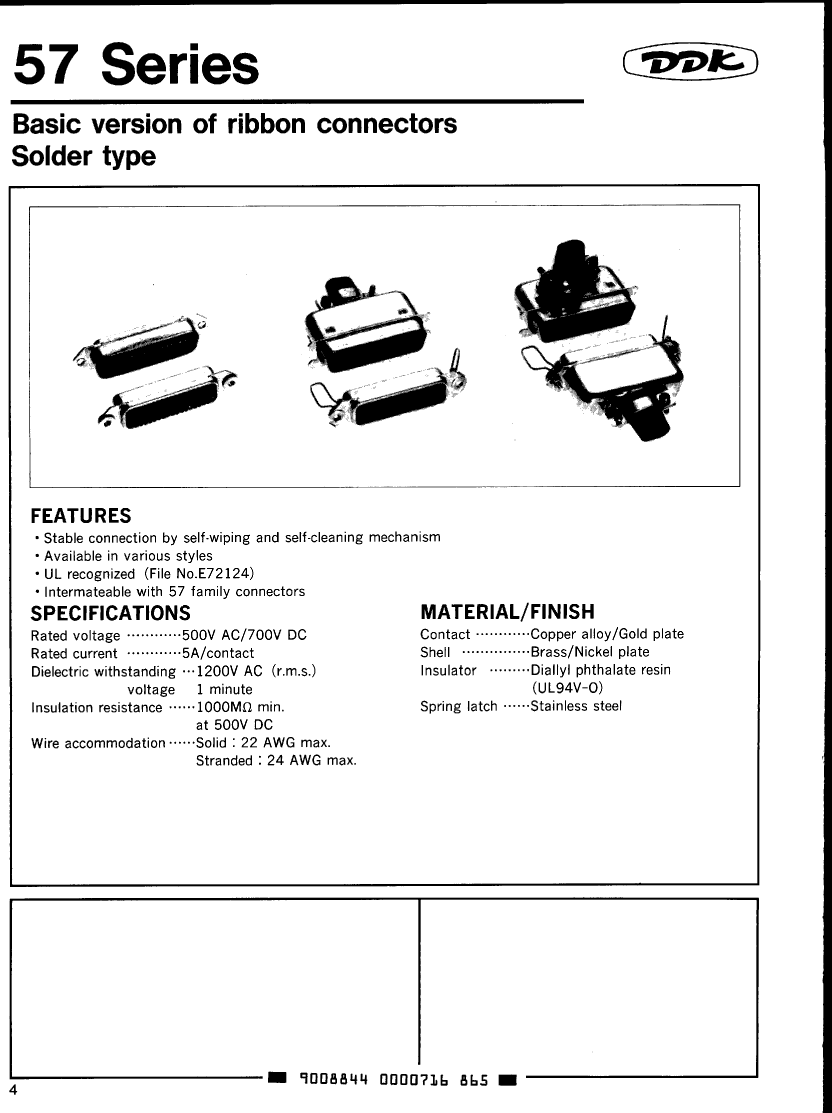

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	HIGH BARRIER TYPE

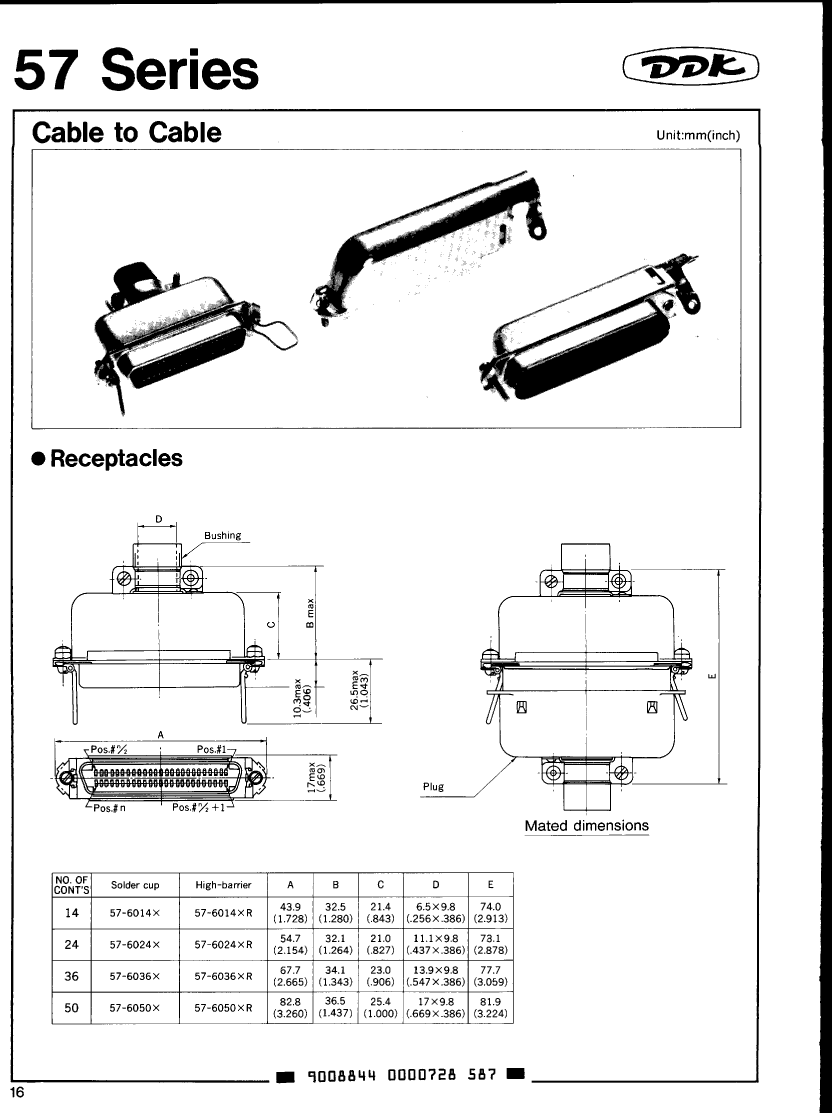

body width	0.669 inch
subject depth	1.343 inch
body length	2.665 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1200VAC V
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	57
Installation option 1	BAIL MT M
Installation type	CABLE
Number of rows loaded	2
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Termination type	WIRE
Total number of contacts	36
Maximum wire diameter	22 AWG
Minimum wire diameter	22 AWG
Base Number Matches	1

	57-60360R	57-60240R	57-60140R
Description	D Type Connector, 36 Contact(s), Female, Wire Terminal, Bail Mt M, Plug	D Type Connector, 24 Contact(s), Female, Wire Terminal, Bail Mt M, Plug	D Type Connector, 14 Contact(s), Female, Wire Terminal, Bail Mt M, Plug
Reach Compliance Code	unknow	unknown	unknown
Other features	HIGH BARRIER TYPE	HIGH BARRIER TYPE	HIGH BARRIER TYPE
body width	0.669 inch	0.669 inch	0.669 inch
subject depth	1.343 inch	1.264 inch	1.28 inch
body length	2.665 inch	2.154 inch	1.728 inch
Body/casing type	PLUG	PLUG	PLUG
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU	AU	AU
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1200VAC V	1200VAC V	1200VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE
Manufacturer's serial number	57	57	57
Installation option 1	BAIL MT M	BAIL MT M	BAIL MT M
Installation type	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2
Rated current (signal)	5 A	5 A	5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS
Termination type	WIRE	WIRE	WIRE
Total number of contacts	36	24	14
Maximum wire diameter	22 AWG	22 AWG	22 AWG
Minimum wire diameter	22 AWG	22 AWG	22 AWG
Base Number Matches	1	1	1
