X7R Non-Magnetic Multilayer Ceramic Capacitors
X7R Dielectric Non-Magnetic Multilayer Ceramic Capacitors
Product Features
Non-Magnetism, Suitable for MRI
Part Numbering
C
1
Chip Capacitor
Chip Capacitor
Dimensions
Type
L
0603
0805
1206
1210
1.6±0.1
2.0±0.2
3.2±0.2
3.2±0.2
W
0.8±0.1
1.2±0.2
1.6±0.2
2.5±0.2
Code(EIA)
X(X7R)
0603
2
Dimensions
X
3
Temperature Characteristic
222
4
Rated Capacitance
K
5
Tolerance
500
6
Rated Voltage
T（max）
0.8±0.1
1.40
1.40
2.00
P
7
Termination Type
B(min)
0.20
0.25
0.25
0.25
T
8
Packing Type
Dimensions (Unit:mm)
B(max)
0.50
0.70
0.76
0.76
Temperature Characteristics
Temperature Coefficients
±15%
Operating Temperature Range
-55℃~ +125℃
Rated Capacitance
Code
102
222
Capacitance
1000pF
2200pF
Tolerance
Code
J
K
M
Code
251
501
102
202
Rated Voltage
(DC)
250V
500V
1000V
2000V
Tolerance
±5%
±10%
±20%
Rated Voltage
Code
25
50
101
201
Rated Voltage
(DC)
25V
50V
100V
200V
www.passiveplus.com
(631) 425-0938
sales@passsiveplus.com
X7R Non-Magnetic Multilayer Ceramic Capacitors
Termination Type
Code
P
C
Termination Type
Non-magnetic Copper
Plated 100% Sn(RoHS)
Palladium Silver
Packing Type
Code
T
B
Packing Type
Tape carrier packing
Bulk packing in a bag
Rated Capacitance Range Table (Unit:pF)
Dielectric
Size
Rated Voltage
25
0603
0805
X7R
1206
50 100 200 250 500 1000
200
50 100 200
0
1210
250 500 1000 2000
331 331
471 471 471
102 102
471 471
50 100 200 250 50 100 200 250
271 271 271
102
1nF
391 391 391 391
331 331
471 471
821 821 821
103
10nF
123
104
100nF
104 104
154 124
105
1uF
274 274
124
184
333
183
823
563
563
123
222
562
www.passiveplus.com
Capacitance
393
154
394
824 684
105

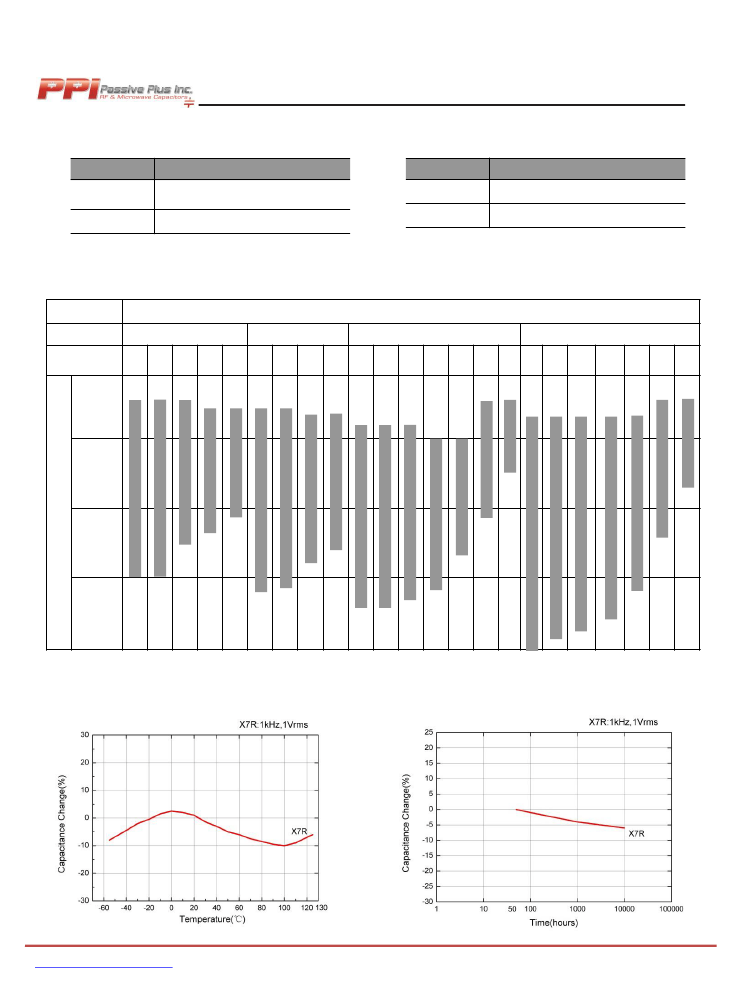

Characteristics Curve
Capacitance vs Temperature
Capacitance Change vs Aging
(631) 425-0938
sales@passsiveplus.com
X7R Non-Magnetic Multilayer Ceramic Capacitors
Specifications and Test Methods
NO.
1
2
3
4
5
Item
Operating Temperature Range
Rated Voltage
Appearance
Dimensions
Dielectric Strength
Specification
-55
℃
~ +125
℃
See pages 73
No defects or abnormality
See the previous pages
No defects or abnormality
Test Method
The rated voltage means the maximum direct voltage or peak
value of pulse voltage which may be applied continuously to a
capacitor
Visual inspection
Callipers inspection
No failure shall be observed when the given coefficient of the
ratedvoltage is applied betweentheterminationsfor1toS
seconds, provided the charge/discharge current is less than
50mA.
The insulation resistance shall be measured with the testing
voltage at normal temperature and with humidity, within 2
minute of charging.
The capacitance D.F. shall be measured at 25
℃
with the
frequency and voltage shown in the table.
Voltage
1±0.2Vrms
6
7
Insulation Resistance
Capacitance
More than 100M
Ω
·uF
Within the specified tolerance
Frequency
8
Dissipation Factor (D.F. )
D.F≤ 5%
X7R
1±0.1KHz
9
Temperature Coefficient
±
15%
Refer to the test methods of general ceramic Chip capacitors.
10
Adhesive strength of
Termination
Solder a capacitor to test jig (glass epoxy board)
shown in fig below using a eutectic solder, then
apply 10N force in the direction of the arrow.
The soldering should be done either by hand iron
or using the reflow method and shall be conducted
with care so that the soldering is uniform and free
No removal of the terminations or of defects such as heat shock.
other defect shall occur
10Newton
Glass Epoxy Resin Board
www.passiveplus.com
(631) 425-0938
sales@passsiveplus.com
X7R Non-Magnetic Multilayer Ceramic Capacitors
Specifications and Test Methods
NO.
Item
Specification
Test Method
Solder the capacitor to test jig (glass epoxy board) shown in
fig below. Soldering should be done either by hand iron of
using the reflow method and shall be conducted with care so
that the soldering is uniform and free of defects such as heat
shock. The capacitor shall be subjected to a simple harmonic
motion having a total amplitude of 1.5mm. The frequency
being varied uniformly between the approximate limits of 10
and 55Hz. The frequency range, from 10 to 55Hz and return
to 10Hz, shall be traversed in approximately 1 minute. This
motion shall be applied for a period of 2 hours in each 3
mutually perpendicular directions (total 6 hours)
Appearance
No defect or abnormality
11
Vibration
Capacitance
Resistance
Within the specified tolerance
D.F.
D.F≤5%
No cracking or marking defects shall occur,
∆
C/C<12.5%

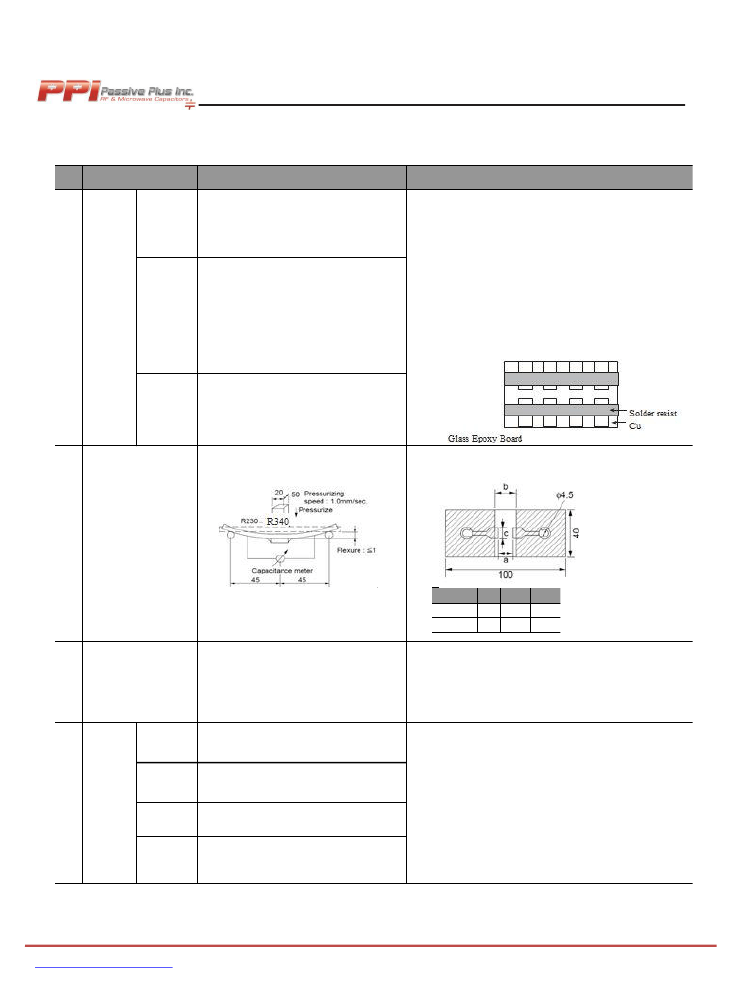

Solder the capacitor to test jig ( glass epoxy board)
direction shown in below fig.
12
Deflection
Size
0603
0805
a
1.0
1.2
b
3.0
4.0
c
1.2
1.65
13
Solderability of
Termination
More than 75% of the terminations is to be
soldered evenly and continuously.
Immerse the capacitor first in a ethanol solution of rosin.
Preheat at 80
℃
to 120
℃
for 10 to 30 seconds. After
preheating, immerse in eutectic solder solution for 2±0.5
seconds at 250±5
℃.
Appearance
Capacitance
Range
D.F.
Insulation
Resistance
No marking defects
Preheat capacitor at 120
℃
to 200
℃
for 1 minute. Then
immerse the capacitor in a eutectic solder at 260
℃
to 265
℃
for 10±1 seconds, Set it for 24±2 hours at room
temperature, then measure.
14
Resistance
to
Soldering
Heat
Less than
±7.5%
D.F≤5%
I.R: More than 100M
Ω
·uF
www.passiveplus.com
(631) 425-0938
sales@passsiveplus.com
X7R Non-Magnetic Multilayer Ceramic Capacitors
Specifications and Test Methods
NO.
Item
Appearance
Capacitance
Range
Specification
No marking defects
Test Method
Fix the capacitor to the supporting jig in the same manner and
under the same conditions as (11).
Perform the five cycles according to the four heat treatments
listed in the following table.
Set it for 24±2 hours at room temperature.
Step
1
2
3
4
Temperature(℃)
Min.operating temp. -3 to 0
Room temperature
Max.operating temp. -3 to 0
Room temperature
Time(minutes)
30±3
2to3
30±3
2to3
≤7.5%
15
Temperature
Cycle
D.F
Insulation
Resistance
D.F≤5%
More than 100M
Ω
·uF
Appearance
No defect or abnormality
16
Humidity
Steady State
Capacitance
Range
D.F
Insulation
Resistance
Appearance
≤12.%
Sit the capacitor at 40±2
℃
and 90% to 95% humidity for
500±12 hours.temperature, then measure.
D.F≤5%
More than 50M
Ω
·uF
No marking defects
≤12.5%
D.F≤5%
More than 50M
Ω
·uF
Apply a DC voltage of 150% of the rated voltage for 1000
hours at the maximun operating temperature, and set it for 48
hours at room temperature, then measure.
The charge/discharge current is less than 50mA.
17
High
Temperature
Load
Capacitance
Range
D.F
Insulation
Resistance
www.passiveplus.com
(631) 425-0938
sales@passsiveplus.com
