1.2x1.0mm Ceramic SMD Crystal CABS
DATASHEET
•
•
•
Tolerances down to ±10 PPM
Stabilities down to ±10 PPM
Temperature Ranges as wide as -40ºC
to +85ºC
• SPECIFICATIONS
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Temperature Range
Operating (T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (C
O
)
Load Capacitance (C
L
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
per J-STD-033
Termination Finish
Lead (Pb) Free
RoHS Compliant
REACH Compliant (latest version)
MAX
(unless otherwise noted)
32.000 ~ 80.000 MHz
(See options on page 2)
(See options below)
(See options below)
-55ºC ~ +125ºC
2 pF
(See options on page 2)
100 µW (10µW typical)
±3 PPM
260ºC / 10 Seconds x 2
N/A
Au (0.3~1µm) over Ni (1.27~8.89µm)
Yes
Yes, no exemptions
Yes
Frequency Range
(MHz)
32.000 ~ 32.999999
33.000 ~ 36.999999
37.000 ~ 80.000
.
Operating Mode
Fundamental
Fundamental
Fundamental
Max ESR
Ω
100
80
60
•Available Operating Temperatures and Stabilities
Operating
±10 PPM
Temperature
-20 ~+70ºC
O
-30 ~+85ºC
X
-40 ~+85ºC
X
Key: O=Available, X=Not Available
±15 PPM
O
O
O
±20 PPM
O
O
O
±25 PPM
O
O
O
Note: Dimensional drawing is for reference to critical specifications
defined by size measurements. Certain non-critical visual attributes,
such as side castellations, etc. may vary.
7/23/2020 - Added thickness info to termination metals, adjusted MSL info
to include J-STD-033 and N/A.
© Copyright 2020 Fox Electronics. All rights reserved
Title / Description:
CABS SERIES STANDARD SPECIFICATIONS
Drawing Number:
CABS-DOC-1
Size: A
Part Number:
Cage:
61429
Draftsperson:
BEC
Approved:
MAJ
Revision Date:
07/23/2020
Page
1
of
2
1.2x1.0mm Ceramic SMD Crystal CABS
DATASHEET

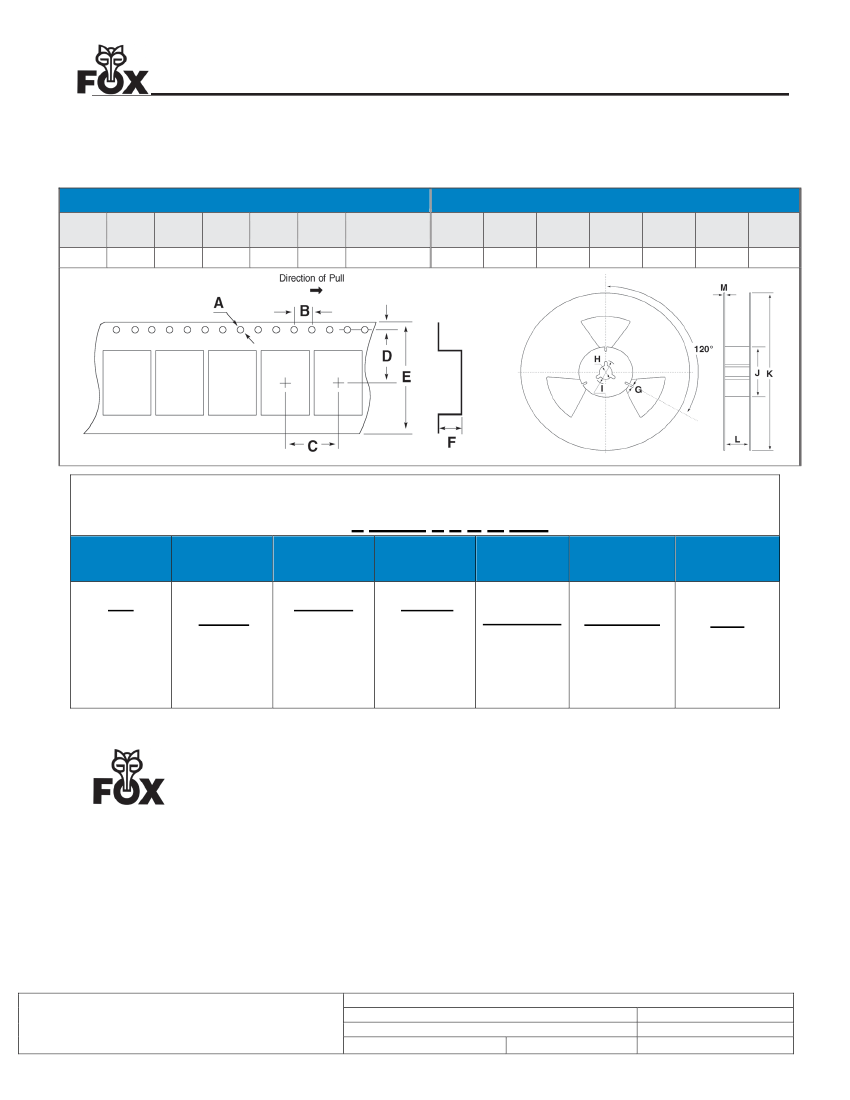

• TAPE SPECIFICATIONS
(millimeters)
A
1.5
B
4.0
C
4.0
D
3.5
E
8.0
F
0.45
Reel QTY
• REEL SPECIFICATIONS
(millimeters)
G
2.0
H
13
I
21
J
60
K
180
L
9.0
M
1.5
-T5 = 5,000
Available Options & Part Identification for CABS
1
F CABS F F D M 40.0
F
FOX
CABS
Model
Number
F
Tolerance
D = ±25 PPM
E = ±20 PPM
F = ±15 PPM
H = ±10 PPM
F
Stability
D = ±25 PPM
E = ±20 PPM
F = ±15 PPM
H = ±10 PPM
D
Load
Capacitance
2
B = 6 pF
V = 7 pF
D = 8 pF
E = 10 pF
G = 12 pF
M
Operating
Temperature
F = -20 ~ +70ºC
K = -30 ~ +85ºC
M = -40 ~ +85°C
40.0
Frequency
(MHz)
1
Not
all frequency, tolerance, stability, load, and operating temperature combinations may be available.
2
Listed load capacitances represent the most commonly used. Other load capacitances are available.
Corporate Headquarters
5570 Enterprise Parkway
Fort Myers, FL 33905
http://www.FOXONLINE.com
Sales
1-888-GET-2-FOX (1-888-438-2369) or
1-239-693-0099
http://www.FOXONLINE.com/repdisty
Tech Support
http://www.FOXONLINE.com/email
PRODUCT USE:
Fox Electronics reserves the right to modify the products and/or specifications described herein at any time and at Fox Electronics' sole
discretion. All information in this document, including descriptions of product features and performance, is subject to chang e without notice. Performance
specifications and the operating parameters of the described products are determined in the independent state and are not guaranteed to perform the same way
when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied,
including, but not limited to, the suitability of Fox Electronics' products for any particular purpose, an implied warranty of mercha ntability, or non-infringement of
the intellectual property rights of others. This document is presented only as a guide and does n ot convey any license under intellectual property rights of Fox
Electronics or any third parties.
Fox Electronics' products are not intended for use in applications involving extreme environmental conditions or in life supp ort systems or similar devices where
the failure or malfunction of a Fox Electronics product can be reasonably expected to significantly affect the health or safe ty of users. Anyone using a Fox
Electronics product in such a manner does so at their own risk, absent an express, written agre ement by Fox Electronics.
Fox Electronics and the Fox logo are registered trademarks of Fox Electronics. Product specification is subject to change without notice. Other trademarks and
service marks used herein, including protected names, logos and designs, are the property of Fox Electronics or their respective third-party owners.
For datasheet type definitions and a glossary of common terms, visit http://www.foxonline.com/tgcrystals.html .
7/23/2020 - Added thickness info to termination metals, adjusted MSL info
to include J-STD-033 and N/A.
© Copyright 2020 Fox Electronics. All rights reserved
Title / Description:
CABS SERIES STANDARD SPECIFICATIONS
Drawing Number:
CABS-DOC-1
Size: A
Part Number:
Cage:
61429
Draftsperson:
BEC
Approved:
MAJ
Revision Date:
07/23/2020
Page
2
of
2
