NMC-H1210NPO390G1KVTRPLPF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NMC-H1210NPO390G1KVTRPLPF

NMC-H1210NPO390G1KVTRPLPF: DescriptionCeramic Capacitor, Multilayer, Ceramic, 1000V, 2% +Tol, 2% -Tol, C0G, 30ppm/Cel TC, 0.000039uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size425KB，7 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric View All

NMC-H1210NPO390G1KVTRPLPF Overview

Ceramic Capacitor, Multilayer, Ceramic, 1000V, 2% +Tol, 2% -Tol, C0G, 30ppm/Cel TC, 0.000039uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT

NMC-H1210NPO390G1KVTRPLPF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1767982202
package instruction	, 1210
Reach Compliance Code	compliant
Country Of Origin	Japan, Mainland China, Taiwan
ECCN code	EAR99
YTEOL	8.1
capacitance	0.000039 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.6 mm
JESD-609 code	e3
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	2%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
positive tolerance	2%
Rated (DC) voltage (URdc)	1000 V
size code	1210
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	2.5 mm

Preview

Download Datasheet

View All

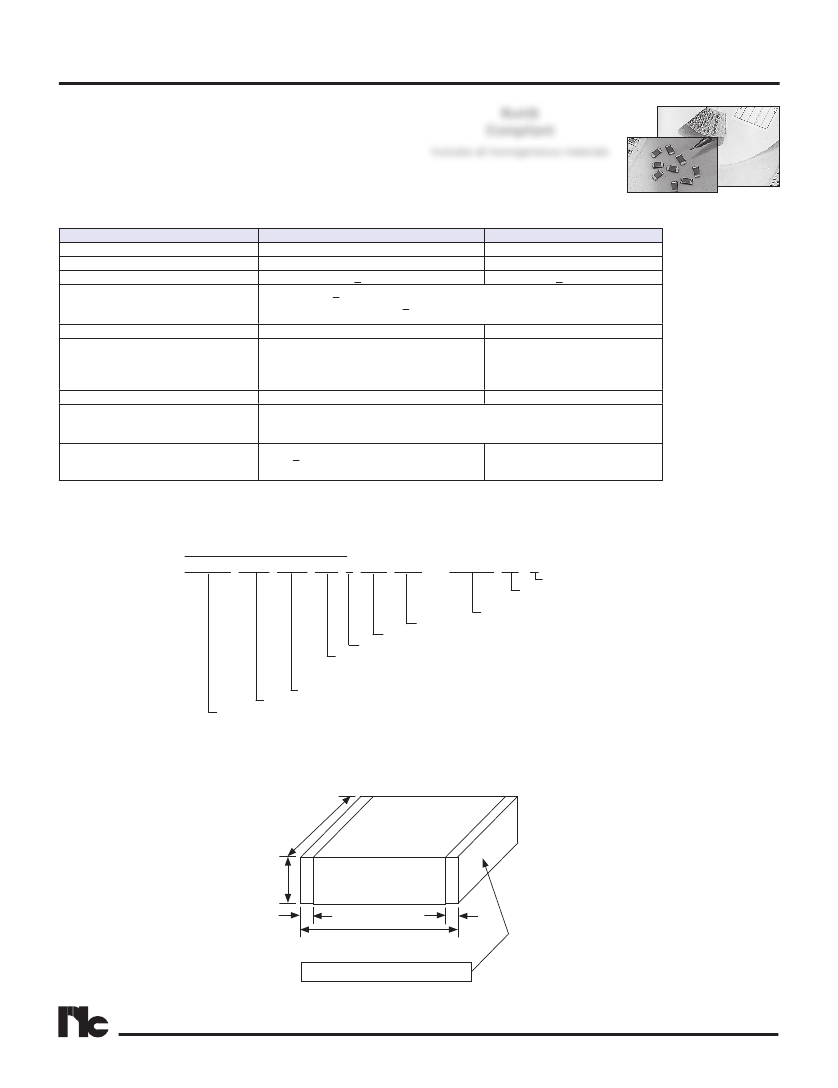

Multilayer Ceramic Chip Capacitors

FEATURES

• HIGH VOLTAGE 200Vdc ~ 5KVdc

• NPO AND X7R DIELECTRICS

• CASE SIZES FROM 0402 ~ 2225

• NICKEL BARRIER TERMINATION AND EXCELLENT

MECHANICAL STRENGTH

SPECIFICATIONS

Operating Temperature Range

Temperature Characteristic

Dissipation Factor

Insulation Resistance

Capacitance Range

Capacitance Tolerance

Rated Voltage

Dielectric Withstanding Voltage

Test Conditions (C & DF)

NMC-H Series

RoHS

Compliant

Includes all homogeneous materials

*See Part Number System for Details

NPO

X7R

-55°C ~ +125°C

±30ppm

±15%

< 0.1%

< 2.5%

> 500MegΩ or 500MegΩ-µF whichever is less

Test Method: Voltage rating < 500V measured after 1 minute at rated voltage,

Voltage rating > 500V measured after 1 minute at 500V

0.1pF ~ 0.039µF

100pF ~ 2.2µF

±0.1pF(B), ±0.25pF(C), ±0.5pF(D)

±1%(F), ±2%(G), ±5%(J), ±10%(K), ±20(M)

±5%(J), ±10%(K), ±20(M)

Contact NIC for Available Tolerances on

Specific Capacitance Values

200Vdc ~ 5KVdc

200Vdc ~ 4KVdc

Working Voltage 200 & 250Vdc x 1.5 + 100Vdc for 5 seconds

Working Voltage 500Vdc x 1.5 for 5 seconds

Working Voltage greater than 500Vdc x 1.2 for 5 seconds

C < 1000pF = 1MHz, 1Vrms @ 25°C

C > 1000pF = 1KHz, 1Vrms @ 25°C

1KHz, 1Vrms @ 25°C

Note: Reflow soldering allowed for all case sizes. Contact NIC for wave soldering restrictions.

PART NUMBER SYSTEM

NMC-H 1206 NPO 102 J 1KV TRP or TRPLP 2K F

RoHS compliant

Non-Std or Optional Reel Quantity

Series

Tape & Reel (Embossed Plastic Carrier)

Tape & Reel (Punched carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, first 2 digits are

significant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

CONSTRUCTION

100% Sn over Ni barrier

NIC COMPONENTS CORP.

www.niccomp.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
