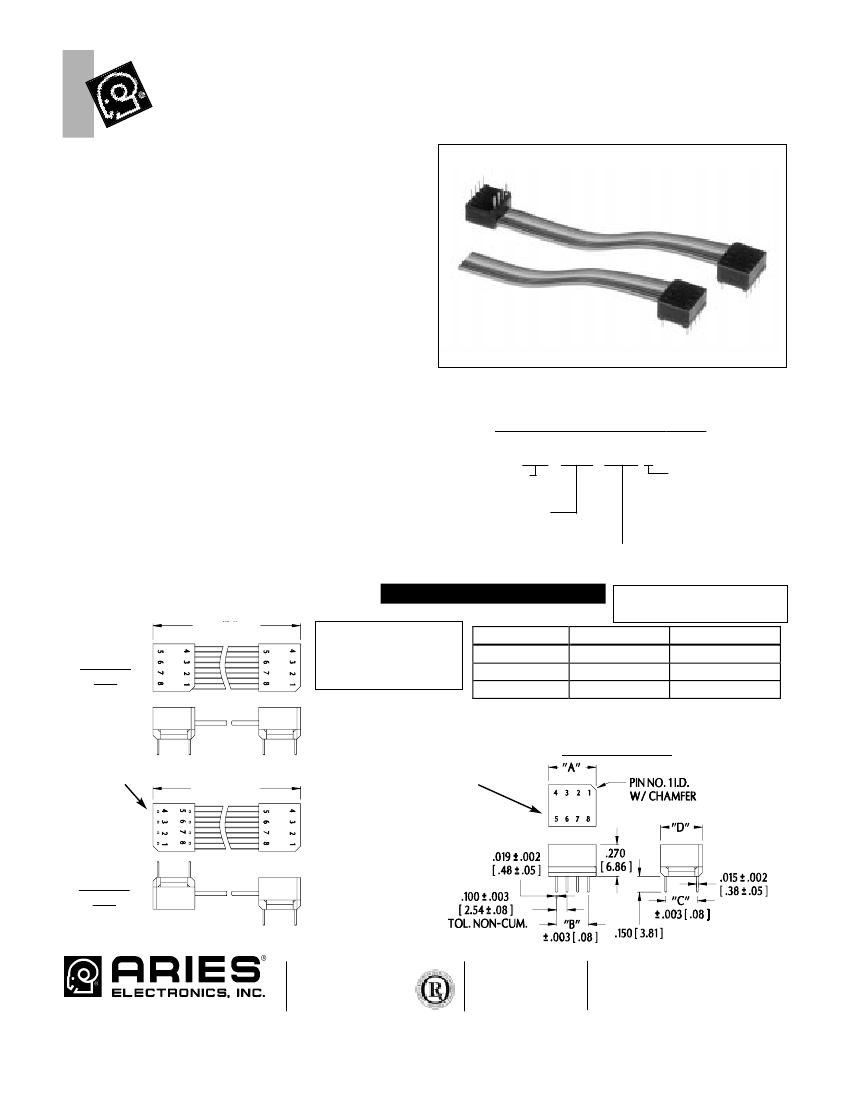

Series 100 thru 111 DIP Jumpers
FEATURES:
• Aries offers a wide array of DIP jumper configurations and
wiring possibilities for all your programming needs.
• Reliable, electronically tested solder connections.
• Protective covers are ultrasonically welded on and
provide strain relief for cables.
• 10-color cable allows for easy identification and tracing.
• Consult factory for jumper lengths under 2.000 [50.80].
SPECIFICATIONS:
• Header body is red UL 94-HB Glass-filled Nylon. Consult
factory for UL 94V-0 rated material.
• Header pins are Brass, 1/2 hard.
• Pin plating is 10µ [.25µm] min. Gold per MIL-G-45204 over
50µ [1.27µm] min. Nickel per QQ-N-290.
• Cable insulation is UL Style 2697 Polyvinyl Chloride (PVC).
•Laminate is clear PVC, self-extinguishing.
**
Note: Aries specializes in custom design and production. In addition to the standard
products shown on this page, special materials, platings, sizes, and configurations
• .050 [1.27] pitch conductors are 28 AWG, 7/36 strand,
can be furnished, depending on
Tinned Copper per ASTM B 33 (.039 [.99] pitch conductors
uct specifications without notice. quantities. Aries reserves the right to change prod-
are 26 AWG, 7/34 strand).
ORDERING INFORMATION
• Cable current rating=1 Amp @ 10°C [50°F] above
ambient.
XX-XXX-XXXX
• Cable voltage rating=300 Volts.
Optional suffix:
• Cable temperature rating=176°F [80°C].
No. of conductors
T=Tin plated header pins
• Cable capacitance=13.0 pf/ft. [42.7pf/meter] nominal
(see table)
F=flat cable
@1 MHz.**
Length “L”
TW=twisted pair cable
• Crosstalk: 10’ sample, 5 ns rise time with 2 lines driven.
in inches
ST=stripped and Tinned
Near end=4.7%; Far end=4.3% nominal.**
(min. length
ends (Series 106-111)
• Propagation delay=1.5 ns/ft. [4.9 ns/meter] nominal.**
Jumper
=2.000 [50.80])
• Insulation resistance=1010 Ohms (10 ft. [3 meters] min.).
series
**Note: Applies to .050 [1.27] pitch cable only.
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
MOUNTING CONSIDERATIONS:
All tolerances ± .005 [.13]
•Suggested PCB hole size=.033 ± .002 [.86 ± .05].
unless otherwise specified
“L”
± .125
SERIES
100
See Data Sheet No.
11007 for other
configurations and
additional information.
Centers “C”
.300 [7.62]
.400 [10.16]
.600 [15.24]
Dim. “D”
.395 [10.03]
.495 [12.57]
.695 [17.65]
Available Sizes
4 thru 20
22
24, 28, 40
Numbers
shown pin
side for
reference
only.
“A”=(NO. OF CONDUCTORS X .050 [1.27) + .095 [2.41]
“B”=(NO. OF CONDUCTORS - 1) X .050 [1.27]
Note: 10, 12, 18, 20, & 28
HEADER DETAIL
conductor jumpers do not
have numbers on covers.
“L”
± .125
SERIES
101
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
UK/IRELAND/GB
TEL: +44 870 240 0249
FAX: +44 1653 600493
uking@arieselec.com
EUROPE/MAINLAND/HOLLAND
TEL: +31 78 615 94 65
FAX: +31 78 615 43 11
11006
europe@arieselec.com
REV.B
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

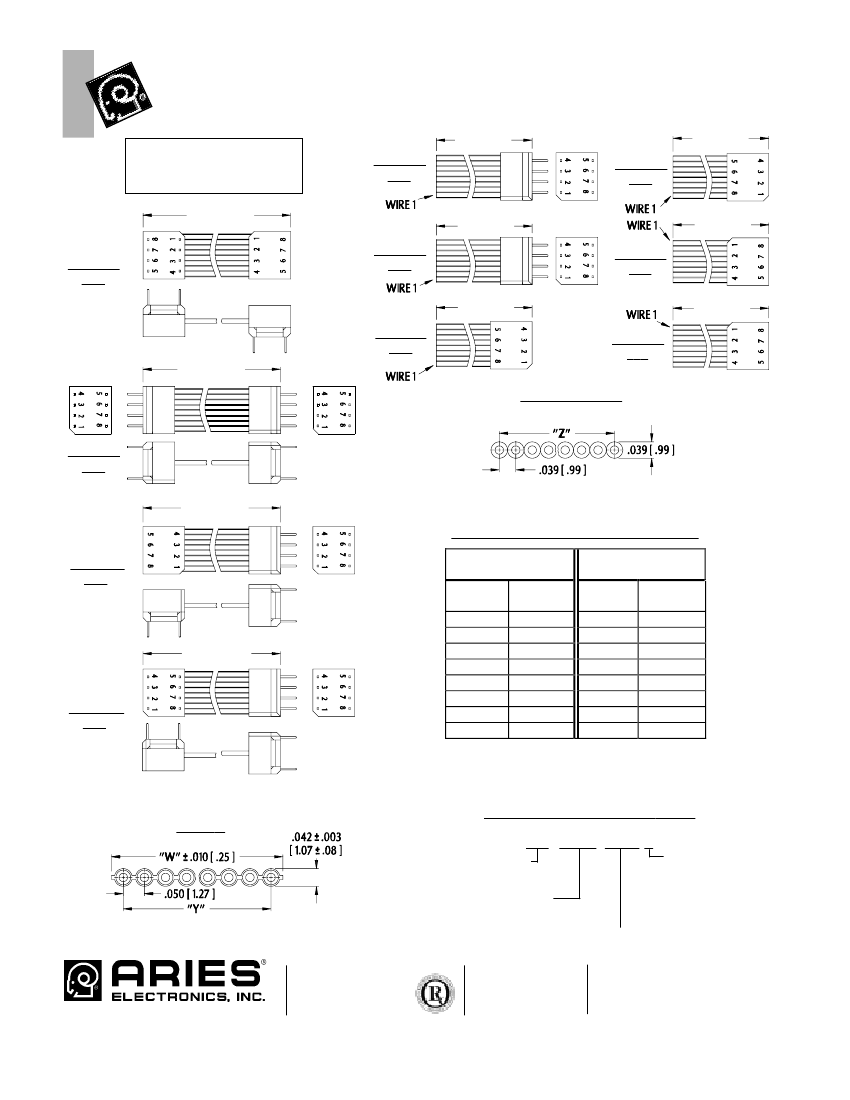

Series 100 thru 111 DIP Jumpers (cont.)
See Data Sheet No. 11006
for other configurations and
additional information.
“L” ± .125
“L” ± .125
“L” ± .125
SERIES
106
SERIES
109
“L” ± .125
“L” ± .125
SERIES
102
SERIES
107
“L” ± .125
SERIES
110
“L” ± .125
SERIES
108
“L” ± .125
SERIES
111
CABLE DETAIL
(Series 107/109/111)
SERIES
103
“L” ± .125
“Z”=(NO. OF CONDUCTORS - 1) X .039 [.99]
SINGLE END DIP JUMPER WIRE LIST
SERIES
104
Series 106, 108, 110
Wire
No.
1
2
3
4
5
6
7
8
Header
Pin No.
1
8
2
7
3
6
4
5
“L” ± .125
SERIES
105
Series 107, 109,
111
Wire
Header
No.
Pin No.
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
ORDERING INFORMATION
CABLE DETAIL
XX-XXX-XXXX
No. of conductors
(see table)
Length “L”
in inches
(min. length
=2.000 [50.80])
UK/IRELAND/GB
TEL: +44 870 240 0249
FAX: +44 1653 600493
uking@arieselec.com
Optional suffix:
T=Tin plated header pins
F=flat cable
TW=twisted pair cable
ST=stripped and Tinned
ends (Series 106-111)
“W”=(NO. OF CONDUCTORS X .050 [1.27]) + .005 [.08]
“Y”=(NO. OF CONDUCTORS - 1) X .050 [1.27]
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
Jumper
series
http://www.arieselec.com • info@arieselec.com
REV.C
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
EUROPE/MAINLAND/HOLLAND
TEL: +31 78 615 94 65
FAX: +31 78 615 43 11
11007
europe@arieselec.com
