HBSTCR-235-D-090-14-T-100 datasheet, PDF

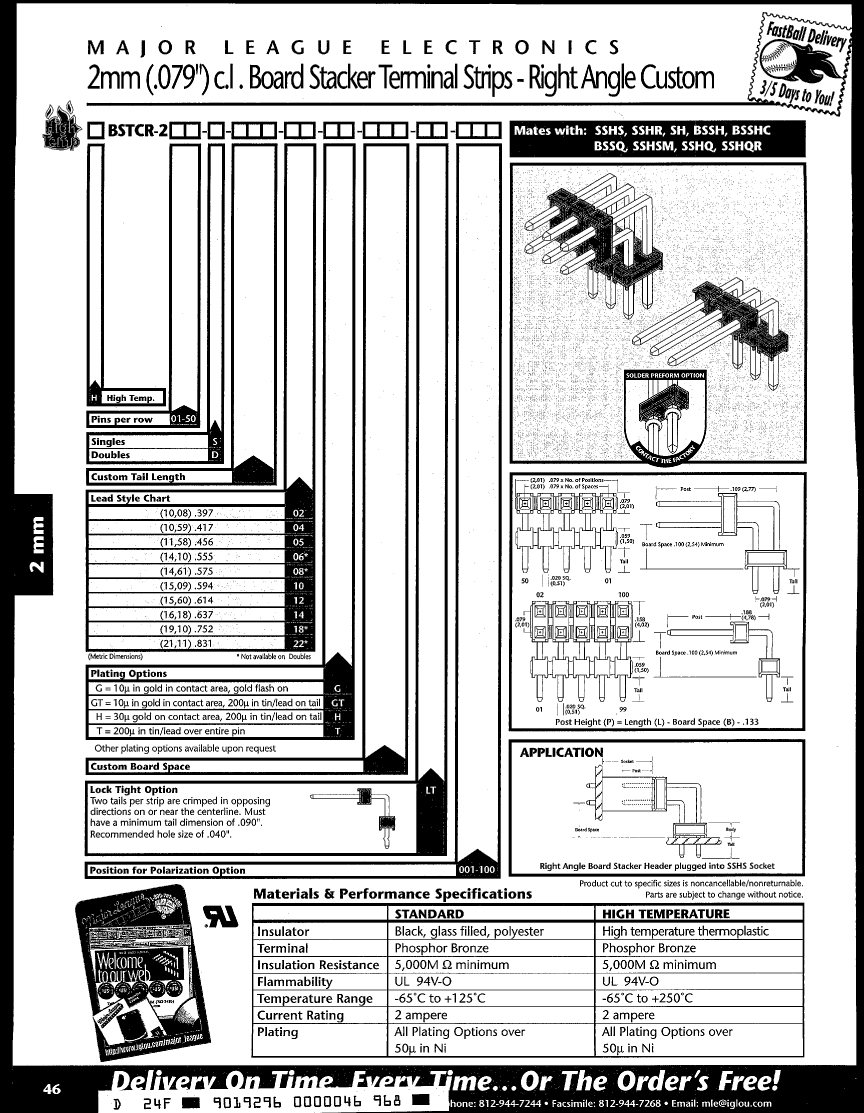

HBSTCR-235-D-090-14-T-100: DescriptionBoard Connector, 70 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size160KB，1 Pages; ManufacturerMajor League Electronics; Websitehttp://www.mlelectronics.com/

Download Datasheet Parametric View All

HBSTCR-235-D-090-14-T-100 Overview

Board Connector, 70 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BOARD STACKING CONNECTOR
body width	0.219 inch
subject depth	0.188 inch
body length	2.765 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL (50)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	BSTCR
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	250 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	200u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	70
