5962R9574201TXC: DescriptionHCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDFP16, CERAMIC, FP-16; Categorylogic logic; File Size92KB，3 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

5962R9574201TXC Overview

HCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDFP16, CERAMIC, FP-16

5962R9574201TXC Parametric

Parameter Name	Attribute value
Objectid	1530375712
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	unknown
Counting direction	UP
series	HCT
JESD-30 code	R-CDFP-F16
JESD-609 code	e4
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Sup	20000000 Hz
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class T
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
width	6.73 mm

Preview

Download Datasheet

View All

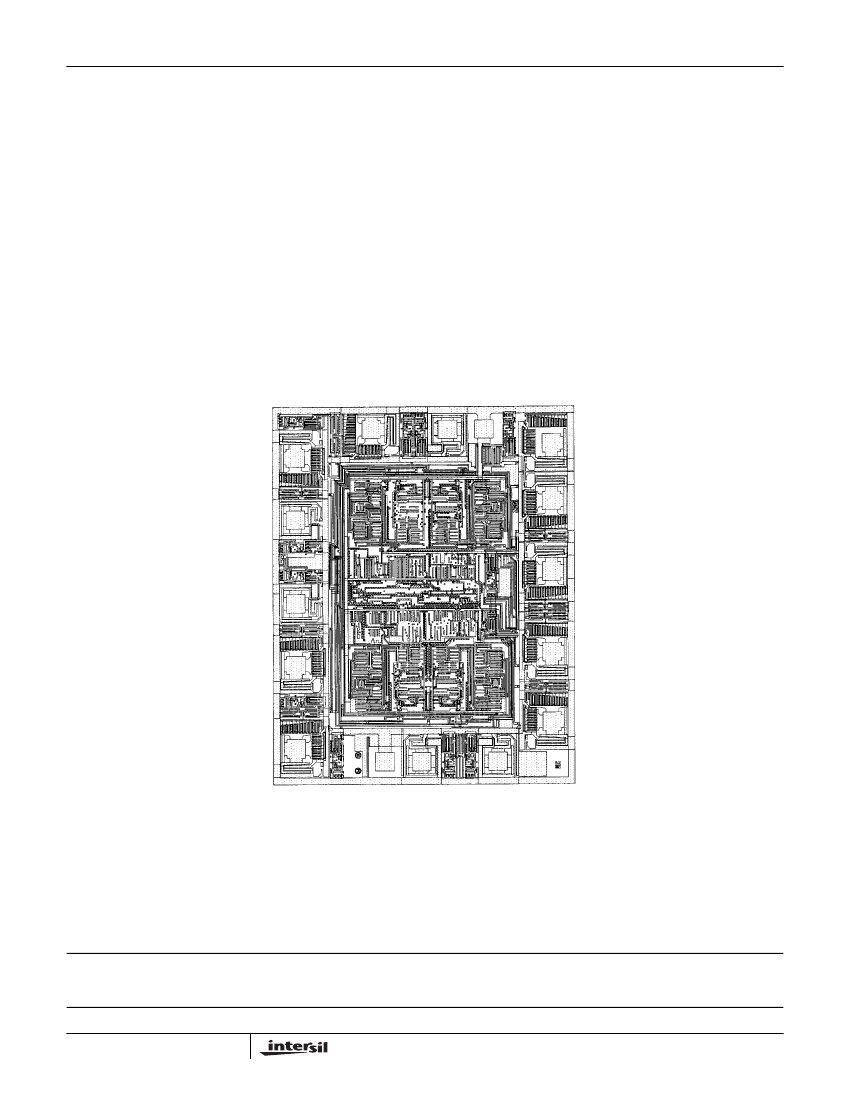

HCTS160T

Data Sheet

July 1999

File Number

4626.1

Radiation Hardened Synchronous

Counter

Intersil’s Satellite Applications

(SAF) devices are fully

tested and guaranteed to 100kRAD total dose. These QML

Class T devices are processed to a standard ﬂow intended

to meet the cost and shorter lead-time needs of large

volume satellite manufacturers, while maintaining a high

level of reliability.

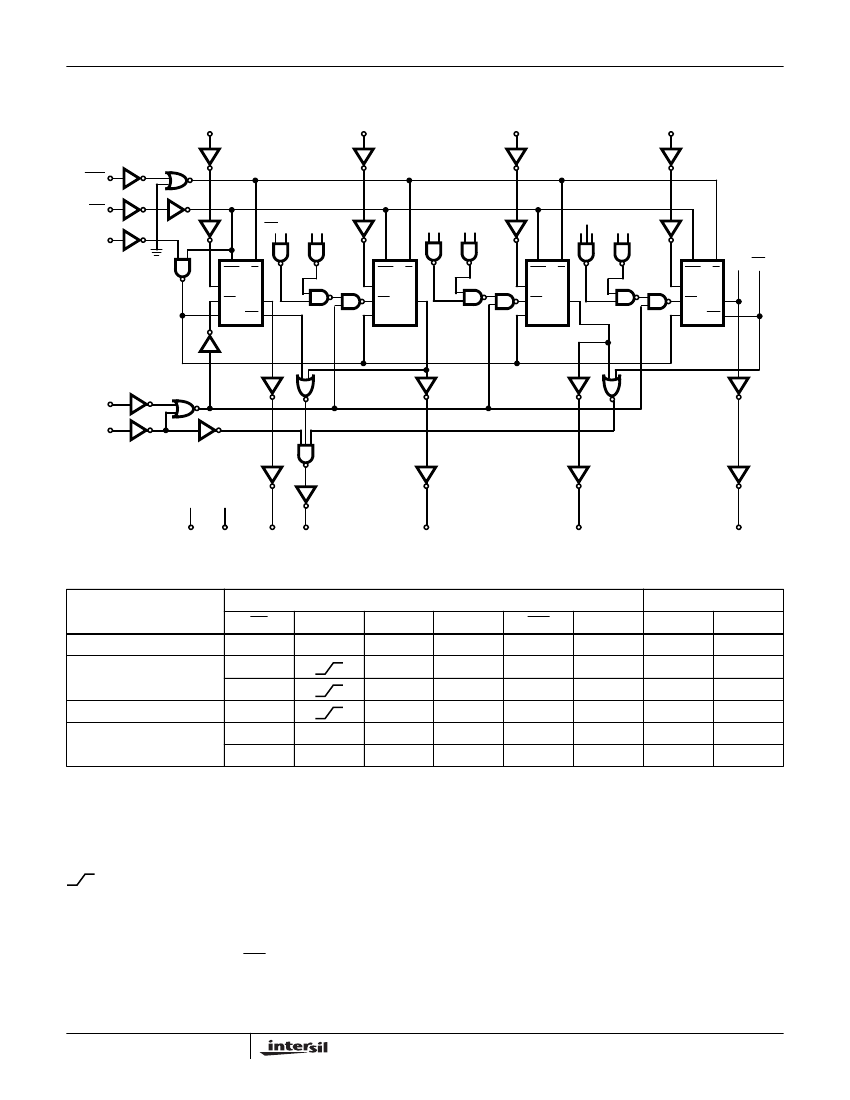

The Intersil HCTS160T is a Radiation Hardened High Speed

Presettable BCD Decade Synchronous Counter that

features an asynchronous reset and look-ahead carry logic.

Counting and parallel presetting are accomplished

synchronously with the low-to-high transition of the clock. A

low level on the synchronous parallel enable input, SPE,

disables counting and allows data at the preset inputs, P0 -

P3, to be loaded into the counter. The counter is reset by a

low on the master reset input, MR. Two count enables, PE

and TE are provided for n-bit cascading. TE also controls the

terminal count output, TC. The terminal count output

indicates a maximum count for one clock pulse and is used

to enable the next cascaded stage to count.

Flow

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose (γ) 1 x 10

RAD(Si)

- Latch-Up Free Under Any Conditions

- SEP Effective LET No Upsets: >100 MEV-cm

/mg

- Single Event Upset (SEU) Immunity < 2 x 10

-9

Errors/Bit-Day (Typ)

• 3 Micron Radiation Hardened SOS CMOS

• Fanout (Over Temperature Range)

- Standard Outputs 10 LSTTL Loads

• Signiﬁcant Power Reduction Compared to LSTTL ICs

• DC Operating Voltage Range: 4.5V to 5.5V

• LSTTL Input Compatibility

- V

= 0.8V Max

- V

= V

CC/2

Min

• Input Current Levels Ii

≤

5mA at V

, V

Pinouts

HCTS160DTR (SBDIP), CDIP2-T16

TOP VIEW

MR 1

CP 2

16 V

15 TC

14 Q0

13 Q1

12 Q2

11 Q3

10 TE

9 SPE

Speciﬁcations

Speciﬁcations for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the HCTS160T are

contained in SMD 5962-95742.

A “hot-link” is provided from

our website for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Intersil‘s Quality Management Plan (QM Plan), listing all

Class T screening operations, is also available on our

website.

www.intersil.com/quality/manuals.asp

P0 3

P1 4

P2 5

P3 6

PE 7

GND 8

Ordering Information

ORDERING

NUMBER

5962R9574201TEC

5962R9574201TXC

PART NUMBER

HCTS160DTR

HCTS160KTR

TEMP.

RANGE

(

-55 to 125

HCTS160KTR (FLATPACK), CDFP4-F16

TOP VIEW

SPE

NOTE:

Minimum order quantity for -T is 150 units through

distribution, or 450 units direct.

GND

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

www.intersil.com or 407-727-9207

Intersil Corporation 1999

Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.
