HIF3BAE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HIF3BAE

HIF3BAE: DescriptionBoard Connector, Male, IDC Terminal, Plug; CategoryThe connector The connector; File Size96KB，3 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

HIF3BAE Overview

Board Connector, Male, IDC Terminal, Plug

HIF3BAE Parametric

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown
Other features	LATCHED, POLARIZED, MAX CONTACTS (SERIES)=60, MAX ROWS (SERIES)=2
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HIF3BAE
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Termination type	IDC
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

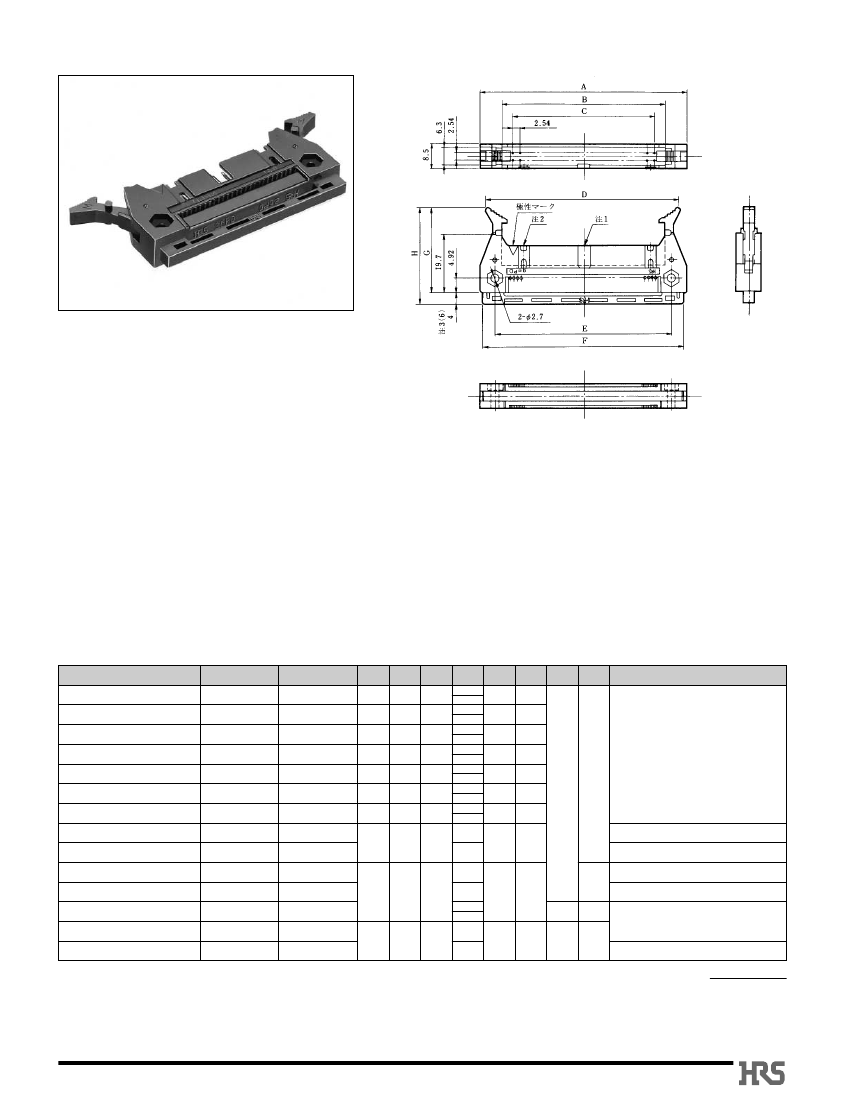

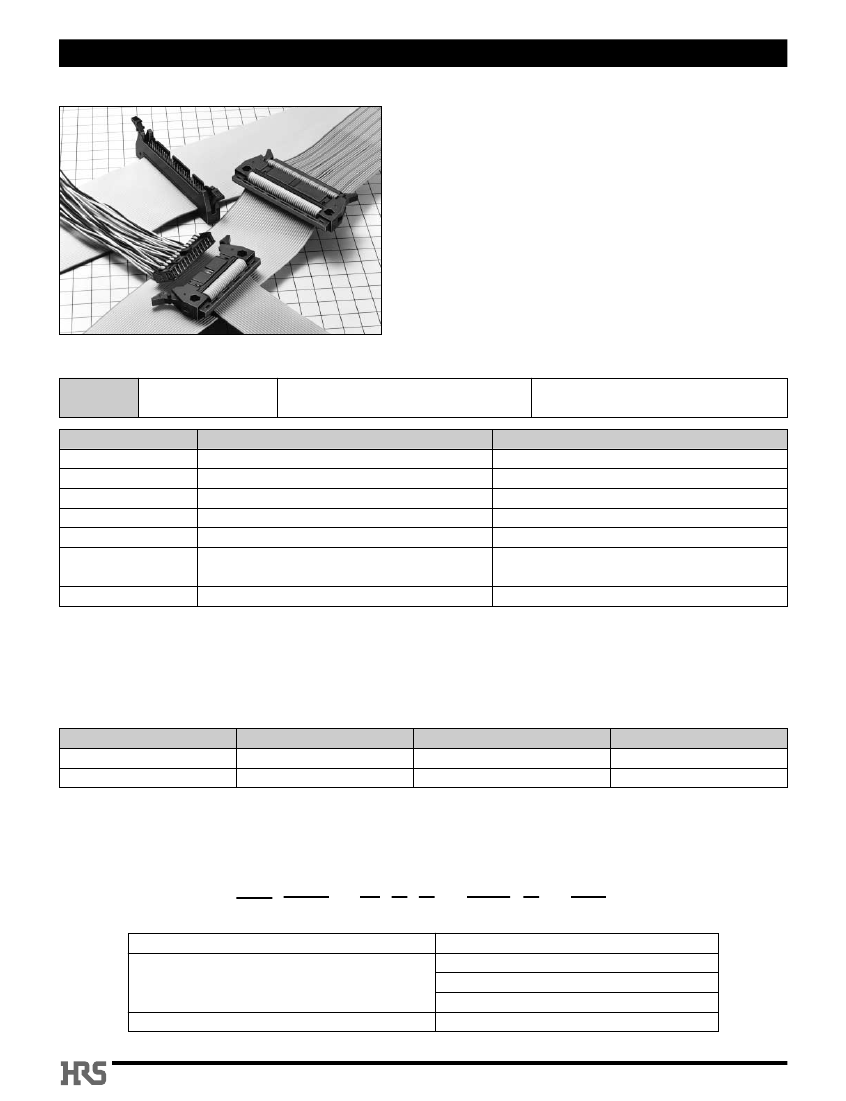

HIF3B In-line Type Ribbon Cable Connector

sFeatures

1. In-line Type

This connector can be used for internal wiring cable to cable within

equipment.

2. Compatibility

This connector is compatible with HIF3A series as well as HIF3B

series socket.

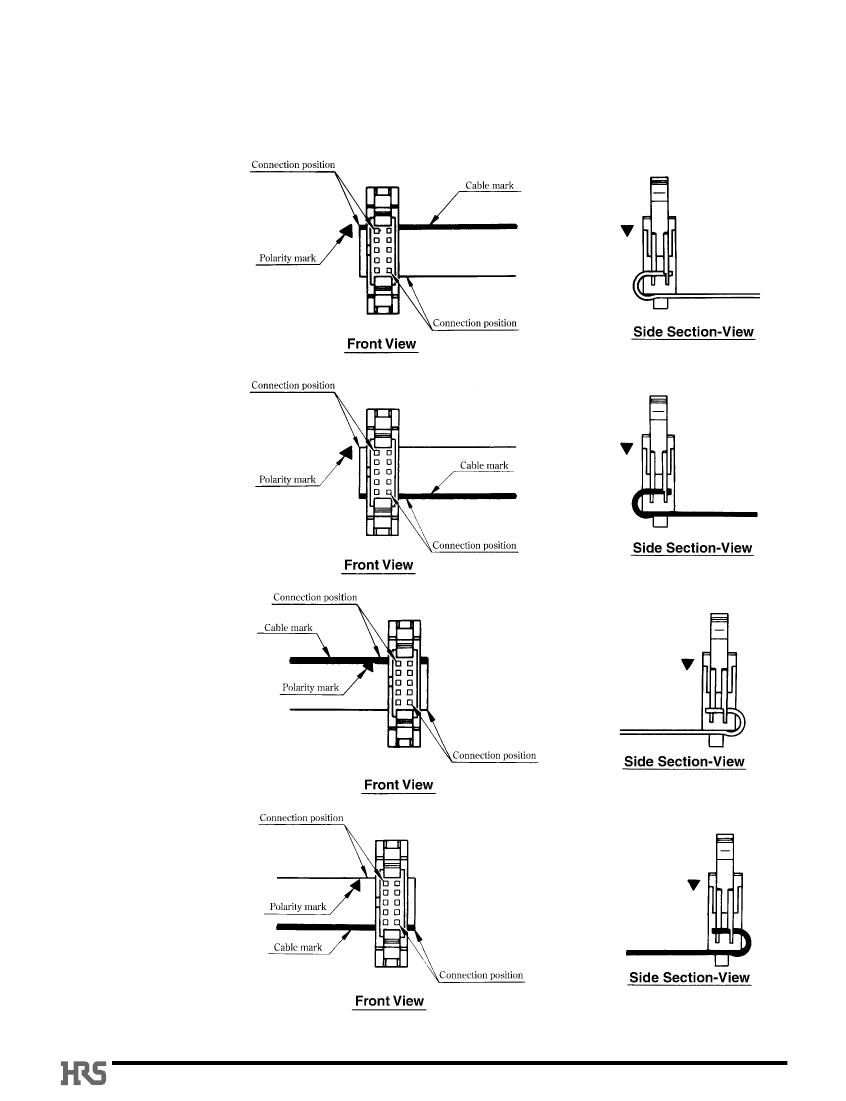

3. Applicable Cable

The applicable cable is UL2651 AWG#28 flat cable

(7 pcs./6.127mm, jacket diameter: 0.8

1.0mm).

sProduct

Specifications

Rating

Current rating : 1A

Operating Temperature Range :

–55 to +85ç

(Note 1) Storage Temperature Range :

–10 to +60ç

(Note 2)

Storage Humidity Range : 40

70% (Note 2)

Condition

500V DC

650V AC/1 minute

0.1A

Voltage rating : 200V AC Operating Moisture Range : 40

80%

Item

1. Insulation Resistance

2. Withstanding voltage

3. Contact Resistance

4. Vibration

1000M

ohms

min.

Specification

No flashover or insulation breakdown.

15m

ohms

max.

No electrical discontinuity of 1µs or more

Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.

96 hours at temperature of 40ç and humidity of 90% to 95%

(-65ç: 30 minutes

➝

35ç: 5 minutes max.

125ç: 30 minutes

➝

35ç: 5 minutes max.) 5 cycles

500 cycles

Humidity (Steady state)

Insulation resistance: 1000M

ohms

min.

6. Temperature Cycle

7. Operating Life

No damage, cracks, or parts looseness.

Contact resistance: 15m

ohms

max.

Note 1: Includes temperature rise caused by current flow.

Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and

Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.

sMaterial

Part

Insulator

Plug Contact

Material

PBT

Beryllium copper

Finish

Black

gold plating

Remarks

UL94V-0

––––––

sOrdering

Information

HIF 3BA -

P D - 2.54 R - MC

Series Name

Series No.

: HIF

: 3BB (50, 60, 64 contacts only)

3BD (10 contacts only)

3BAE (60 contacts only)

P : Plug

D : contact alignment : D : Double

Contact Pitch

Connection type

: 2.54mm

: Ribbon cable

: Mold clamp

Number of Contacts : 10, 16, 20, 26, 30, 34, 40, 50, 60 and 64

B42

HIF3BAE Related Products

	HIF3BAE	HIF3BA	HIF3BB
Description	Board Connector, Male, IDC Terminal, Plug	Board Connector, Female; Male, Right Angle; Straight, Crimp; IDC; Solder; Wire Wrap Terminal, Socket	Board Connector, Female; Male, Right Angle; Straight, Crimp; IDC; Solder; Wire Wrap Terminal, Socket
Maker	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	unknown	unknown
Other features	LATCHED, POLARIZED, MAX CONTACTS (SERIES)=60, MAX ROWS (SERIES)=2	COMPATIBLE CONTACTS: HIF3-2226SC; HIF3-2226SCA; HIF3-2428SC; HIF3-2428SCA, LATCHED, POLARIZED, MAX CONTACTS (SERIES)=64, MAX ROWS (SERIES)=2	COMPATIBLE CONTACTS: HIF3-2226SC; HIF3-2226SCA; HIF3-2428SC; HIF3-2428SCA, LATCHED, POLARIZED, MAX CONTACTS (SERIES)=64, MAX ROWS (SERIES)=2
Body/casing type	PLUG	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	FEMALE; MALE	FEMALE; MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	YES	YES
Manufacturer's serial number	HIF3BAE	HIF3BA	HIF3BB
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation type	CABLE	BOARD; CABLE	BOARD; CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	CRIMP; IDC; SOLDER; WIRE WRAP	CRIMP; IDC; SOLDER; WIRE WRAP
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	-
Installation method	-	RIGHT ANGLE; STRAIGHT	RIGHT ANGLE; STRAIGHT
Terminal pitch	-	2.54 mm	2.54 mm
