O45.0-JT53L-CD-2.5-LF datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> O45.0-JT53L-CD-2.5-LF

O45.0-JT53L-CD-2.5-LF: DescriptionClipped Sine Output Oscillator, 45MHz Nom,; CategoryPassive components oscillator; File Size597KB，2 Pages; ManufacturerJauch; Websitehttp://www.jauchusa.com/; Environmental Compliance

Download Datasheet Parametric View All

O45.0-JT53L-CD-2.5-LF Overview

Clipped Sine Output Oscillator, 45MHz Nom,

O45.0-JT53L-CD-2.5-LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1148450336
Reach Compliance Code	compliant
Ageing	1 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	1.5%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	45 MHz
Maximum operating temperature	85 °C
Minimum operating temperature
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	5mm x 3.2mm x 1.05mm
power supply	2.5 V
Certification status	Not Qualified
Maximum slew rate	2.5 mA
Maximum supply voltage	2.6 V
Minimum supply voltage	2.4 V
Nominal supply voltage	2.5 V
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

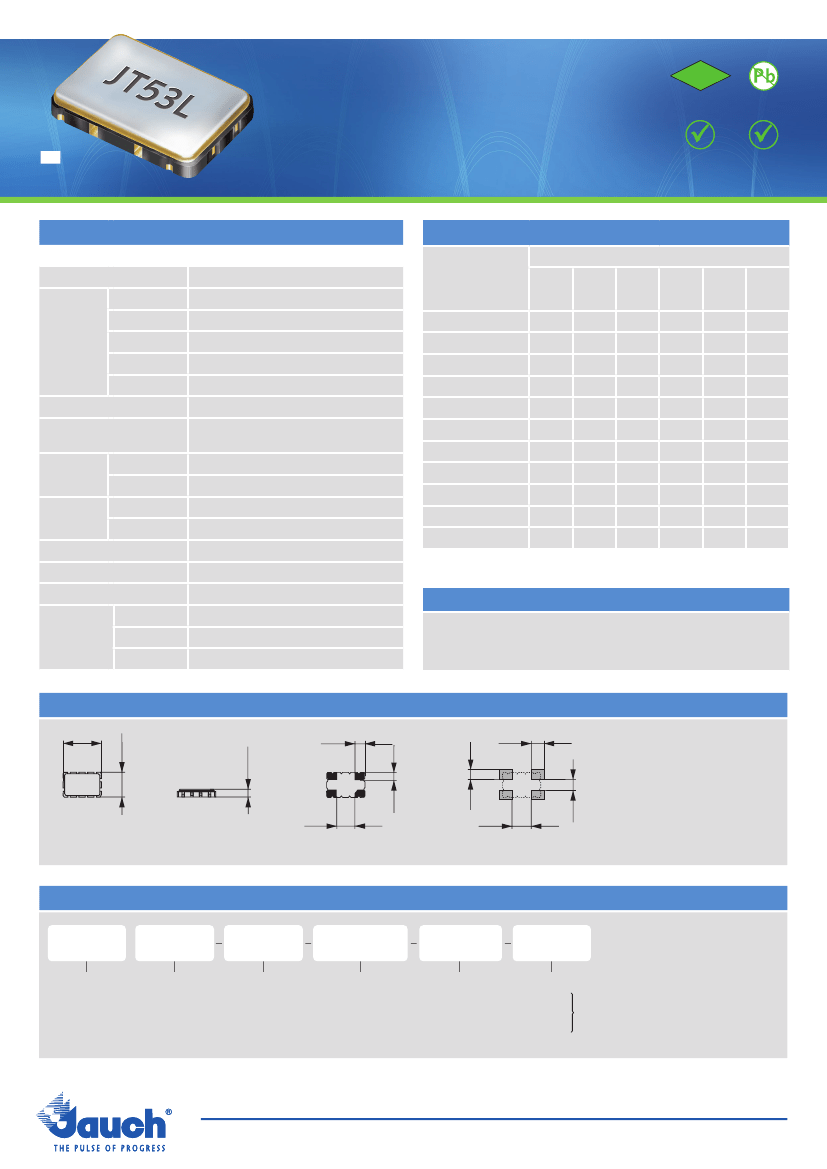

Oscillator JT53L(V) · (VC)TCXO

- Temp. Compensated Crystal Oscillator, 5.0 x 3.2 mm

- low power VCTCXO or TCXO

- temperature range -40 °C ~ +85 °C available

- reflow soldering temperature: 260 °C max.

- ceramic/metal package

2011/65/EC

RoHS

RoHS compliant

Pb free

actual size

REACH

compliant

Conflict

mineral free

GENERAL DATA

TYPE

frequency range

frequency

stability

at +25°C

temperature

aging first year

supply voltage

load change

current consumption

supply voltage V

temperature

operating

storage

output

load nom.

level min.

external tuning range JT53LV

external tuning voltage

start-up time max.

phase noise

at ƒo

13 MHz

at 100 Hz

at 1 KHz

at 10 KHz

JT53L / JT53LV

6.0 ~ 45.0 MHz

± 0.5 ppm

± 1 ppm ~ ± 5 ppm (table 1)

± 1 ppm

± 0.2 ppm (at V

± 5 %)

± 0.2 ppm

2.5 mA max.

2.5 V (± 4%) and 2.8 V / 3.0 V /

3.3 V (± 5%)

see table 1

-45 °C ~ +85 °C

10 KΩ // 10 pF

0.8 Vpp (clipped sine)

± 8 ppm min.

1.5 V ± 1.0 V

2.5 ms

-113 dBc/Hz typ.

-135 dBc/Hz typ.

-140 dBc/Hz typ.

TABLE 1: FREQUENCY STABILITY VS. TEMPERATURE

frequency stability code / ppm

operating

temperature code

-30 °C ~ +80 °C

-20 °C ~ +70 °C

-10 °C ~ +60 °C

0 °C ~ +85 °C

0 °C ~ +55 °C

± 5.0



± 3.0



± 2.5



± 2.0



± 1.5



± 1.0



-10 °C ~ +70 °C

-30 °C ~ +75 °C

-20 °C ~ +75 °C

-40 °C ~ +85 °C

-20 °C ~ +85 °C

-30 °C ~ +85 °C



on request

NOTE

- TCXO JT53L: pin #1 connected to ground

- VCTCXO JT53LV: pin #1 connected to control voltage

- external AC coupling for output recommended

DIMENSIONS

3.2

±0.2

5.0

±0.2

1.1

±0.1

1.05

±0.1

0.7

±0.1

1.0

±0.1

1.3

±0.1

2.6

±0.1

2.6

±0.1

top view

side view

bottom view

pad layout

1.6

±0.1

TCXO

JT53L

# 1: GND

# 2: GND

# 3: output

# 4: V

VCTCXO

JT53LV

# 1: Vcontrol

# 2: GND

# 3: output

# 4: V

pin connection

in mm

ORDER INFORMATION

Oscillator

frequency

6.0 ~ 45.0 MHz

type

JT53L = TCXO

JT53LV = VCTCXO

frequency stability

code

A-Z

see table 1

operating temp.

code

A-M

see table 1

supply voltage

2.5 = 2.5 V ± 4%

2.8 = 2.8 V

3.0 = 3.0 V ± 5%

3.3 = 3.3 V

Example: O 26.0-JT53L-A-B-3.3-LF

(Suffix LF = RoHS compliant / Pb free)

21102020

Jauch Quartz GmbH • e-mail: info@jauch.de • full data can bedata can be found under:

info@jauch.com

full found under: www.jauch.com

All specifications are subject to change without notice

www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
