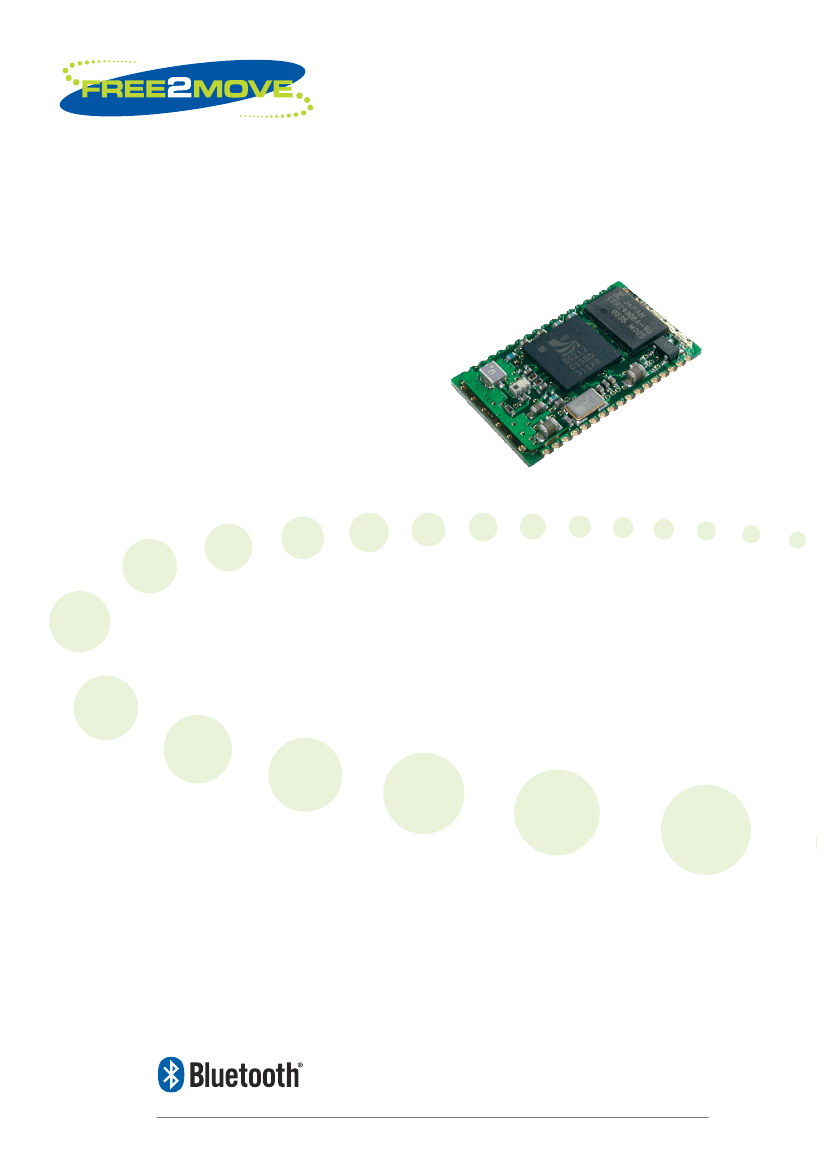

CLASS 2 BLUETOOTH
®
MODULE - F2M03C2
FEATURES
•
Available with complete Bluetooth
software stack
•
Wireless UART functionality without
extra protocol
•
•
Headset functionality available
Serial interface, 8 digital and
2 analog I/O
•
PCM interface for up to
3 simultaneous voice channels
•
•
Nominal 20 m range
Transmit power up to +4 dBm
(Bluetooth Class2)
•
•
4 low power modes
Piconet and Scatternet capability,
support for up to seven slaves
•
•
•
Physical size: 25x14 mm
Surface mountable
Bluetooth v1.1 compliant
GENERAL DESCRIPTION
This module is a Class 2 Bluetooth
device; surface mountable in an auto-
matic mounting line or manually for
prototyping. It provides a fully Bluetooth
compliant device for data and voice
communications. The interfaces to a
host (UART and USB) can support full
Bluetooth data rate of 723.2kbps. A
13-bit PCM, 8 k samples/s, synchro-
APPLICATIONS
Prototyping and volume production of:
•
•
•
•
•
Industrial and domestic appliances
Stand alone sensors
Embedded systems
Cordless headsets
Computer peripherals
(Mice, Keyboards, USB dongles etc)
•
Handheld, laptop and desktop
computers
•
Mobile phones
nous bidirectional audio interface is
available. Digital and analog I/O and I2C
interface are supported by the module.
The module is available with a number of
different firmware versions: The Wire-
less UART firmware implements the
Serial Port Profile (SPP) with an easy to
use command interface. All information
sent to the serial interface is trans-
mitted transparently via Bluetooth to
the connected remote device.
Other firmware versions are: Headset,
HCI, RFCOMM and the possibility to get
customized standalone applications
implemented on the module.
BLUETOOTH is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Free2move.
© Free2move
www.free2move.se
2003.09
