251R15W202MV4U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 251R15W202MV4U

251R15W202MV4U: DescriptionCeramic Capacitor, Multilayer, Ceramic, 250V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.002uF, 0805,; CategoryPassive components capacitor; File Size619KB，2 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric View All

251R15W202MV4U Overview

Ceramic Capacitor, Multilayer, Ceramic, 250V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.002uF, 0805,

251R15W202MV4U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	843566832
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.8
capacitance	0.002 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.4 mm
JESD-609 code	e3
length	2.03 mm
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Embossed Plastic, 13 Inch
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
series	HIGH-VOLT(SMT)
size code	0805
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	1.27 mm

Preview

Download Datasheet

View All

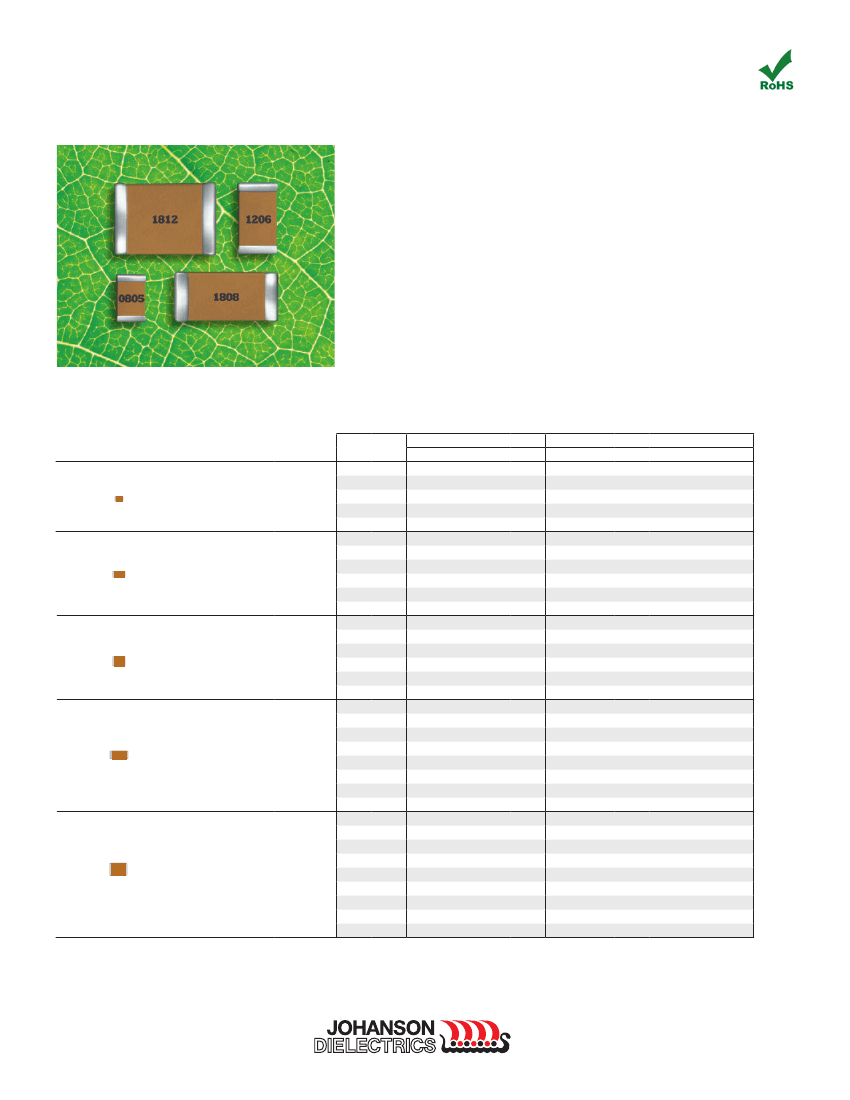

NEXT GENERATION

HigH Voltage

MLCC

250 - 6,000 VDC

eXteNDeD CaPaCitaNCe RaNges

HigHeR Voltage RatiNgs

sMalleR Case siZes

• Micro-Polished For redUced sUrFAce Arc

• hiGh Ac WiThsTANdiNG cAPABiliTY

• FleXiBle TerMiNATioNs AVAilABle

• FAil-sAFe desiGNs AVAilABle

MechaNical chaRacteRiSticS

Rated

Voltage

Inches

.080 ±.010

.050 ±.010

.055 Max.

.020 ±.010

Inches

.125 ±.010

.062 ±.010

.067 Max.

.020 ±.010

Inches

.125 ±.010

.095 ±.010

.080 Max.

.020 ±.010

(mm)

(2.03 ±.25)

(1.27 ±.25)

(1.40)

(0.51±.25)

(mm)

(3.17 ±.25)

(1.57 ±.25)

(1.70)

(0.51±.25)

(mm)

(3.18 ±.25)

(2.41 ±.25)

(2.03)

(0.51±.25)

250

500

630

1000

250

500

630

1000

2000

3000

250

500

630

1000

2000

3000

500

630

1000

2000

3000

4000

5000

6000

250

500

630

1000

2000

3000

4000

5000

6000

VDC

10 pF

1.0 pF

100 pF

10 pF

aVailable caPacitaNce

NPo dielectRic

Minimum

Maximum

680 pF

560 pF

390 pF

1500 pF

1200 pF

1000 pF

220 pF

82 pF

3900 pF

2700 pF

1800 pF

560 pF

220 pF

4700 pF

3300 pF

2200 pF

820 pF

470 pF

180 pF

75 pF

8200 pF

6800 pF

5600 pF

1800 pF

1000 pF

390 pF

150 pF

Minimum

1000

100

X7R dielectRic

old Max

New Max

0.022

8200

3900

2700

µF

0.022

0.010

6800

4700

0.068

0.047

0.027

0.018

4700

1000

0.220

0.100

0.056

0.047

3900

2700

0.100

0.068

0.047

8200

3900

2200

1000

µF

R15/0805

R18/1206

E/B

S41/1210

E/B

R29/1808

E/B

Inches

.189 ±.010

.080 ±.010

.085 Max.

.020 ±.010

(mm)

(4.80 ±.25)

(2.03 ±.25)

(2.16)

(0.51±.25)

S43 / 1812

E/B

Inches

.180 ±.010

.125 ±.010

.110 Max.

.025 ±.015

(mm)

(4.57 ±.25)

(3.17 ±.25)

(2.80)

(0.64±.38)

1000 pF

100 pF

1000 pF

100 pF

1000 pF

100 pF

47 pF

0.010 µF

1000 pF

100 pF

10 pF

0.068 µF

0.027 µF

0.010 µF

5600 pF

1000 pF

220 pF

0.120 µF

0.047 µF

0.027 µF

0.010 µF

2200 pF

560 pF

0.056 µF

0.039 µF

0.018 µF

6800 pF

3300 pF

270 pF

120 pF

100 pF

0.270 uF

0.150 uF

0.100 µF

0.022 µF

6800 pF

4700 pF

1500 pF

680 pF

0.470 µF

0.330 uF

0.180 µF

0.100 µF

0.010 µF

6800 pF

2200 pF

1000 pF

680 pF
