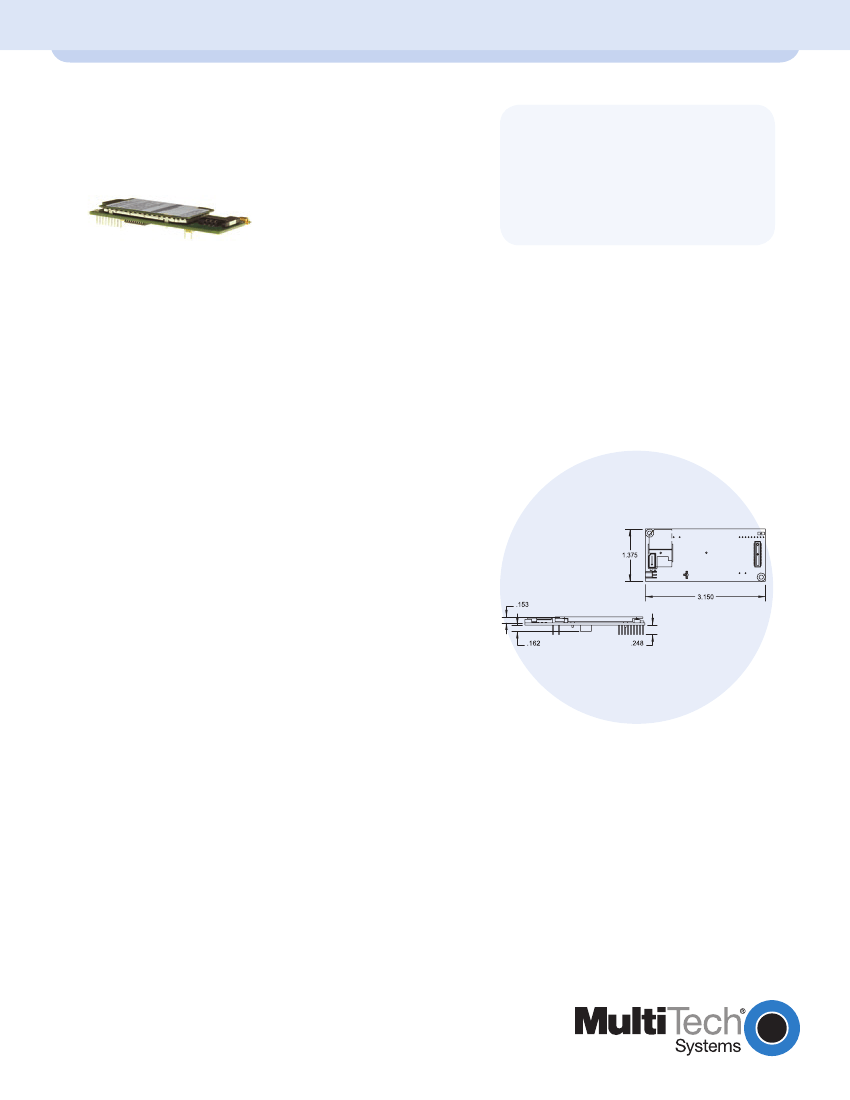

SocketModem GPRS
®
Benefits
• Easy integration
• Quick time-to-market
• Carrier approved
• Universal socket connectivity
Embedded Wireless Modem
The SocketModem
®
GPRS wireless modem is a complete, ready-to-integrate module that offers standards-based
multi-band GSM/GPRS Class 10 performance. This quick-to-market module allows developers to add wireless
communication to products with a minimum of development time and expense. The SocketModem GPRS wireless
modem is based on industry-standard open interfaces and utilizes Multi-Tech's universal socket design.
Features
• GPRS Class 10
• Dual-band 850/1900 or 900/1800 MHz GSM/GPRS
• Packet data up to 85.6K bps
• Embedded TCP/IP stack
• Circuit-switched data up to 9600 bps transparent and non-
transparent
• GSM Class 1 and Class 2 Group 3 Fax
• Short Message Services (SMS)
• Advanced management features include phone book
management, fixed dialing number, real time clock and
alarm management
• MMCX antenna connector and SIM socket
• SIM card holder
• Serial interface supports DTE speeds to 115.2K bps
• AT command compatible
• MNP 2 error correction, V.42bis compression
• Universal socket connectivity
• Two-year warranty
Highlights
Applications.
The SocketModem GPRS wireless modem is
targeted at applications that periodically need to send or
receive data over a wireless network. It is ideal for:
• Appliances
• Asset tracking
• ATM terminals
• Automotive
• Data collection
• Industrial and medical
remote monitoring systems
• Remote diagnostics
• Remote metering
• Security systems
• Vending/gaming machines
• Other devices requiring
wireless connectivity
Developer's Kit.
The Developer's Kit allows you to plug in the
module and use it for testing, programming and evaluation.
The kit includes one development board with RS-232 DB-25
connector, universal power supply, antenna and RS-232 cable.
Specifications
Packet Data Features
GPRS Class 10, PBCCH support
Coding Schemes: CS1 to CS4
Embedded TCP/IP stack
Circuit Switched Data/Fax Features
Asynchronous, transparent & non-transparent up to
14.4K bps, MNP2 & V.42 bis
Group 3 Fax, Class 1 & Class 2
Integration Reduces Space, Power and Cost.
The SocketModem
GPRS wireless modem integrates the controller, RF
transceiver, antenna interface and SIM socket in one module.
This integration requires low power, low real estate and
provides an overall reduction in costs.
Reduces Development Time.
The SocketModem GPRS
wireless modem enhances your product while you focus on
developing its core features. It actually provides faster time-
to-market because it relieves the burden and expense of
obtaining PTCRB and RF approvals.
Internet-enabled.
The SocketModem GPRS wireless modem
includes an embedded TCP/IP protocol stack to bring
embedded Internet connectivity to any device. Using the
Internet protocols and the wireless connection to an IP
network, it sends and receives data over the Internet.

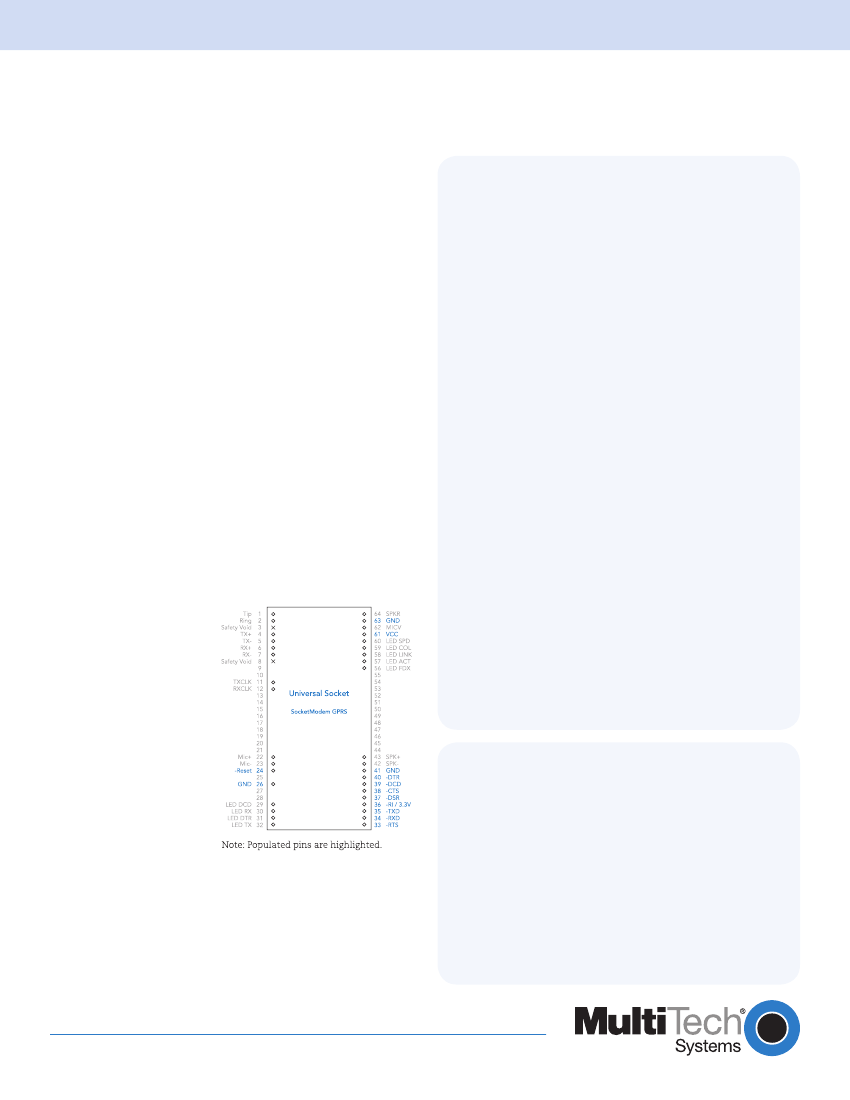

SocketModem GPRS Pin-Out.
The SocketModem GPRS wireless
modem interfaces easily with existing products through
a standard serial communication channel. The serial DTE
channel is capable
of transfer speeds
to 115.2K bps and
can be interfaced
directly to a UART or
microcontroller. The
complete on-board RF
transceiver interfaces
with an antenna for
direct connection to
wireless SMS,
circuit-switched
dial-up, or packet
data networks. It also
includes an onboard
LED to display network
status.
Universal Socket Connectivity.
Multi-Tech's Universal
Socket flexible comm-port architecture provides analog
dial-up, ISDN, wireless or Ethernet socket connectivity with
interchangeable modules. This allows you to utilize one
system design and populate it with your communication
module of choice. In addition, you are assured seamless
migration to future technologies.
World Headquarters
Tel: (763) 785-3500
(800) 328-9717
www.multitech.com
3/05 86002038
SMS Features
Text & PDU, Point-to-Point, cell broadcast
Connectors
Antenna: MMCX
SIM: Standard 3V SIM receptacle
IP Protocols Supported
ARP, Dial-in PPP, DNS Resolve, FTP client, ICMP, IP, IPCP,
LCP, POP 3 (receive mail), PPP, SMTP (send mail), TCP
socket, Telnet client, Telnet server, UDP socket, CHAP,
PAP
Power Requirements
5VDC; 300mA typical, 1.3A maximum
Physical Description
3.1" L x 1.4" W x 0.5" H; 1 oz.
(8.0 cm x 3.5 cm x 1.2 cm; 26 g)
Operating Environment
-30° to +70° C
Certifications
CE Mark, R&TTE
EMC: FCC Part 2, 15, 22, 24, EN 55022, EN 55024
Safety: cUL, EN 60950, UL 60950
Network: PTCRB
Ordering Information
Product
MTSMC-G*
Ordering Codes
-F1
-F2
-AWS
Description
GSM/GPRS Modem
Description
900/1800 MHz GSM/GPRS
850/1900 MHz GSM/GPRS
For AT&T Networks (USA)
Region
Regional
* Use ordering codes for specific build options. Check with your local carrier to
see which frequency bands are required. Go to www.multitech.com for detailed
product model numbers.
Made in Mounds View, MN, U.S.A.
