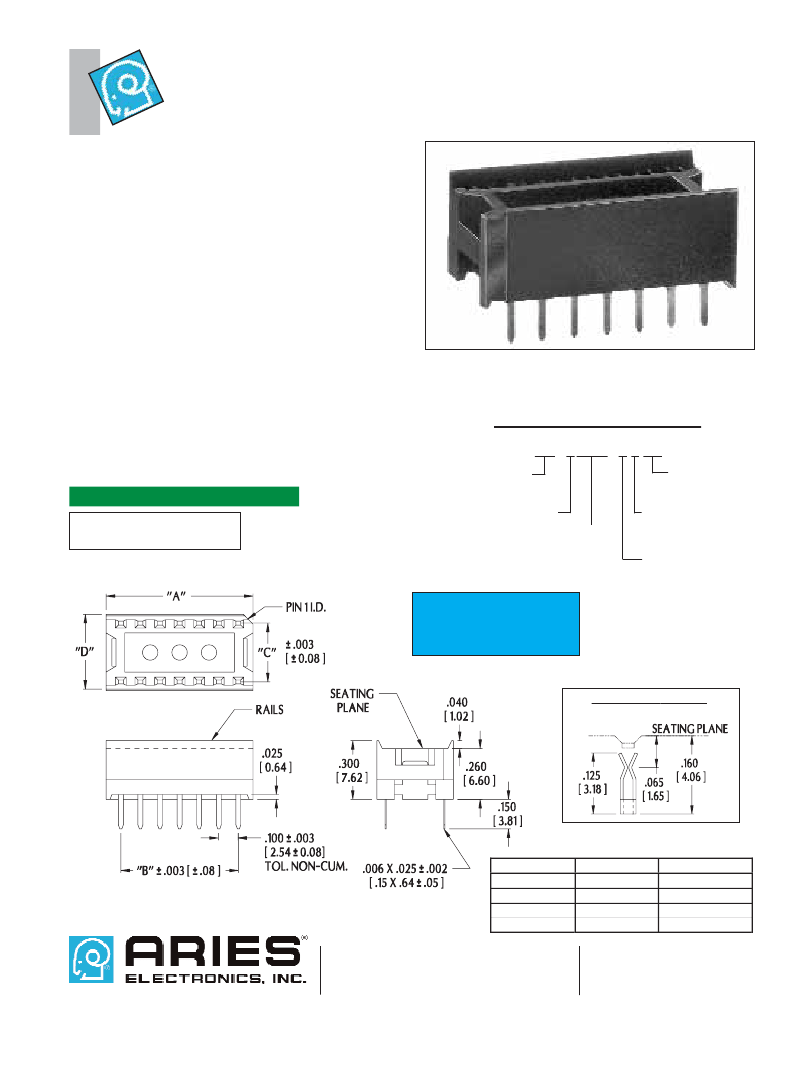

Series 511 Standard DIP Sockets with
Solder Tail Bifurcated Contacts
FEATURES:
• Standard DIP sockets are available with solder tail or wire
wrap pins, all with bifurcated contacts. Consult Data Sheet
No. 12005 for wire wrap pins.
• Aries offers these standard DIP sockets in more sizes than
any other manufacturer.
SPECIFICATIONS:
• Standard body material is red UL 94-HB Glass-filled Nylon.
• High temperature body material is black UL 94v-0 4/6 Nylon.
• Bifurcated contacts are Grade A spring-tempered Phosphor
Bronze per QQ-B-750.
• Contact plating is either 50-150μ [1.27-3.81μm] 60/40
Tin/Lead Alloy, or 10μ [.25μm] min. Gold per MIL-G-45204
over 50μ [1.27μm] min. Nickel per QQ-N-290.
• Contact current rating=1 Amp.
• Operating temperature=221°F [105°C] Tin plating,
=257°F [125°C] Gold plating.
• Insertion Force=110 grams/pin average; Withdrawal
Force=75 grams/pin average.
• Accepts flat leads up to .014 thk. x .020 wide
[.36 x .51], round leads up to .020 [.51] in diameter.
• Socket accepts lead lengths from seating plane from .075-
.160 [1.91-4.06].
Mounting Considerations:
•Suggested PCB hole size=.035 ± .002 [.89 ± .05]. dia.
Note: Aries specializes in custom design and production. In addition to the stan-
dard products shown on this page, special materials, platings, sizes, and configu-
rations can be furnished, depending on quantities. Aries reserves the right to
change product specifications without notice.
ORDERING INFORMATION
X X - X 5 1 1 - 1 X X X
Optional suffix:
No. of pins
(see table)
Row-to-row spacing:
2: ”C”=.200 [5.08]
3: “C”=.300 [7.62]
4: “C”=.400 [10.16]
6: “C”=.600 [15.24]
WR=Without rails
V0=UL 94V-0
plastic
Plating:
0=Tin
1=Gold
Solder tail pin
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Series
Consult Data Sheet No.
12005 for standard DIP
sockets with wire wrap
bifurcated contacts.
CONTACT DETAIL
Centers “C”
.200 [5.08]
.300 [7.62]
.400 [10.16]
.600 [15.24]
Width “D”
.290 [7.36]
.390 [9.90]
.490 [12.45]
.690 [17.54]
Available Sizes
8, 10
8, 14-20
22
8-24, 28-40, 48
