LAP5100-2101F: DescriptionAudio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack,; CategoryThe connector The connector; File Size67KB，2 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

LAP5100-2101F Overview

Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack,

LAP5100-2101F Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknow
Body/casing type	JACK
Configuration	2X1 VERTICAL
Connector type	AUDIO/RCA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	LAP5100
Installation type	BOARD
Number of poles	6
Number of ports	2
Options	GENERAL PURPOSE
Termination type	SOLID LEAD
Base Number Matches	1

Preview

Download Datasheet

View All

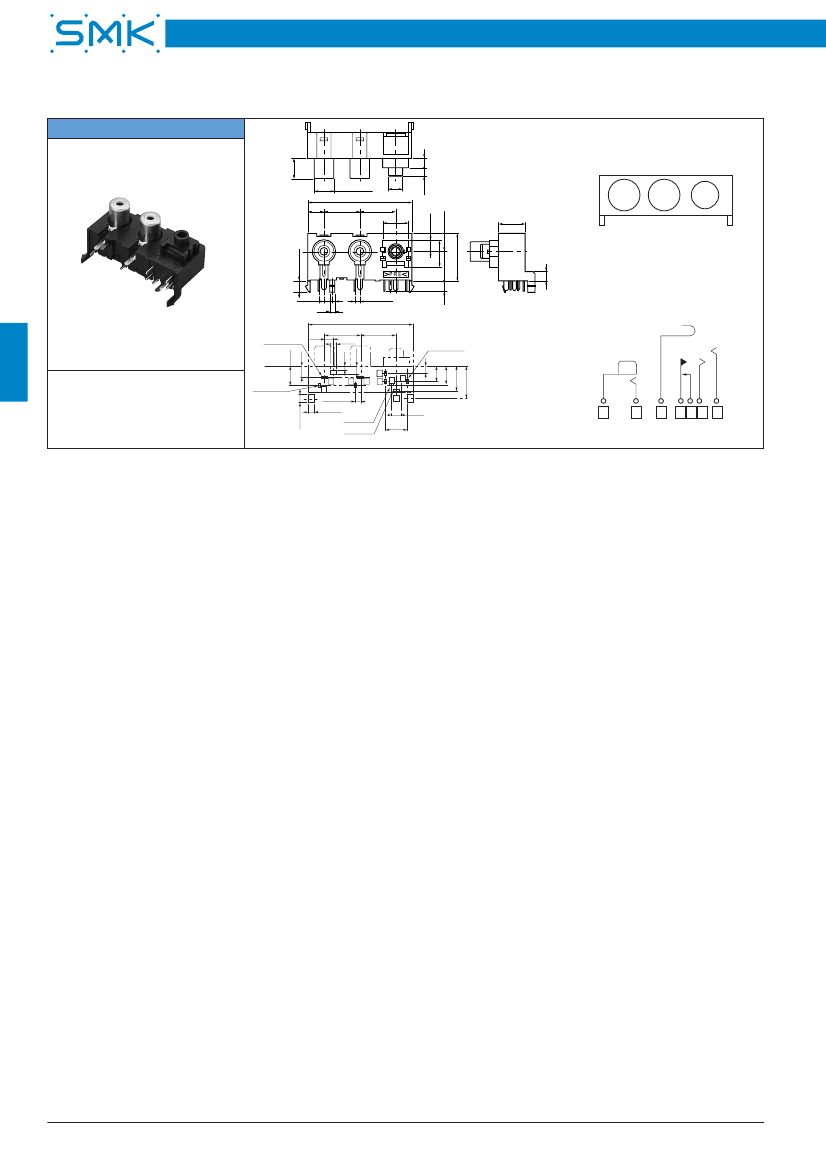

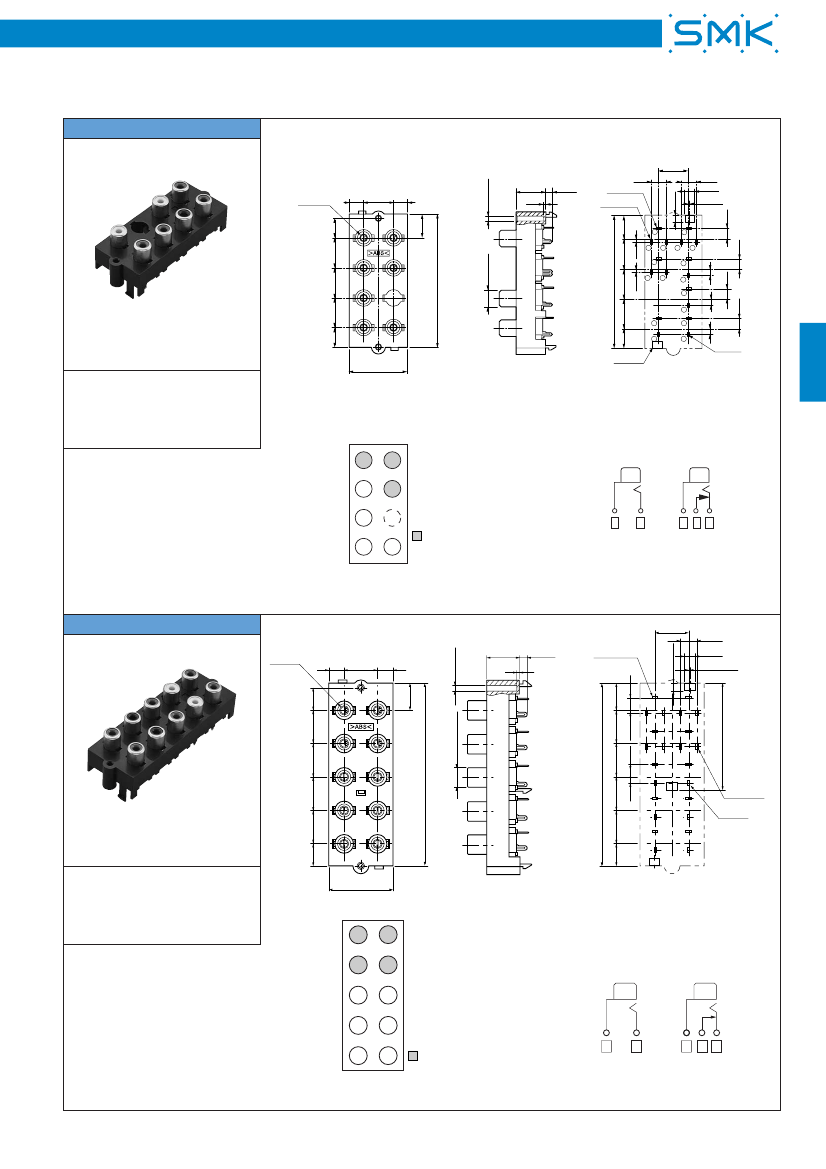

Combined Jack Boards

LAP5030-0202F

15

2-ø2.5

3.5

7

15

7

12

15

1

3.5

7.5

7-1x2.6

6-2.5x1

12

a

c

6

8

c

2

5

7-ø3.4

10

7.5

4.75

0.625

a

d

a

4

c

1

3

d

a

5.4

3

4-2x1

5.4

15

7-ø8.3

15

1.5

d

10

7

9

12

(67)

15

1.5

b

a

b

a

b

15

11

15

a

15

13

14

16

10

b

10

17

(29)

8-R0.2

[t=1.6]

P.C. Board Dimension

(Bottom View)

Red

White

Yellow

Red

White

a

With Switch

b

a d c

White

Red

Pin Jack

(A1-A4)

Pin Jack

(B1-B3)

Color Layout

Circuits (With Switch)

LAP5030-0401F

10–ø3.4

7

15

7

12

2–ø2.5

15

1

3.5

10–1x2.6

12

5.4

3.5

7.5

4.75

0.625

a

d

a

b

a

b

a

b

8–2.5x1

6–2x1

48.1

10

a

c

a

c

a

b

a

b

a

b

d

c

d

c

15

1.5

15

10–ø8.3

a

(82)

82

15

10

(29)

10

15

Vertical (10P)

Red

B1

White

B2

White

B3

Red

B4

Red

A1

Blue

A2

Blue

A3

Green

A4

Green

a

With Switch

(Break)

15

3

15

5.4

15

[t=1.6]

P.C. Board Dimension

(Bottom View)

b

a d c

Pin Jack

(B1-B4)

A5

A6

Pin Jack

(A1-A6)

Color Layout

Circuits (With Switch)

30

Pin Jacks

Vertical (7P)

LAP5100-2101F Related Products

	LAP5100-2101F	LAP5030-0401F	LAP5030-0202F
Description	Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 4 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 4 Pole(s), Solid Lead Terminal, Jack,
Maker	SMK	SMK	SMK
Reach Compliance Code	unknow	unknown	unknown
Body/casing type	JACK	JACK	JACK
Configuration	2X1 VERTICAL	5X2 VERTICAL	4X2 VERTICAL
Connector type	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	LAP5100	LAP5030	LAP5030
Installation type	BOARD	BOARD	BOARD
Number of poles	6	4	4
Number of ports	2	10	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLID LEAD	SOLID LEAD	SOLID LEAD
Base Number Matches	1	1	1
