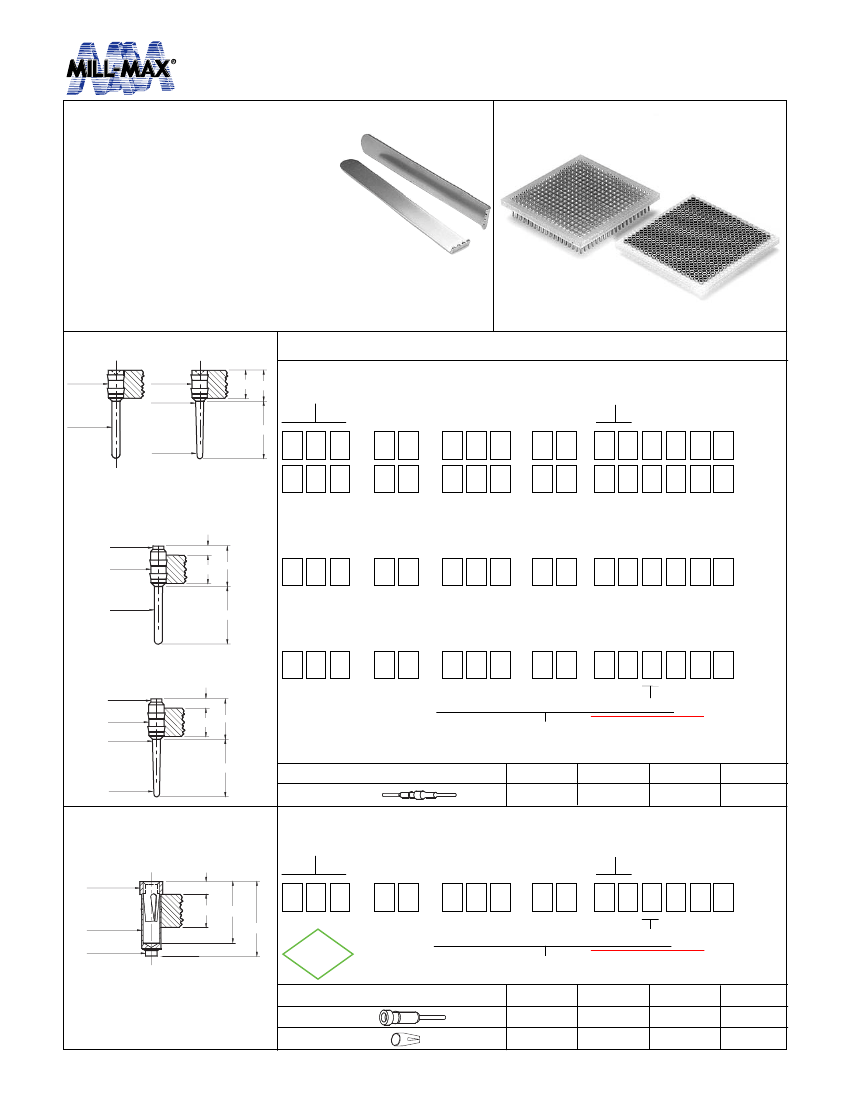

BALL GRID ARRAYS
For .050” Grid
Male Pin Adapters & Female Socket
•
BGA adapter/socket systems are a reliable way to make BGAs pluggable,
they may also be used as a high density board-to-
board interconnect.
•
The BGA device is soldered to a 8737/4048
adapter (or a 4098/4054 adapter is soldered
to a PCB); and then either one can be plugged
into a 8214 surface mount socket.
•
Both socket and adapter have the same footprint as the
BGA device.
•
Insertion force is .40N per pin for standard pins 8737/4098.
Tapered EZ-IN pins 4048/4054 reduce insertion force to only .08N,
and are recommended for pin counts greater than 500.
A pry-bar tool (part #828-01-010) is available for extraction.
•
Insulator material is FR-4 epoxy having a TCE to match the BGA device
and circuit board.
BGA MOUNT ADAPTER PINS
.034 DIA.
.034 DIA.
.016 DIA.
.018 DIA.
.013 DIA.
.127
.062 .068
Series 587, 582
Ordering Information
FOR BGA MOUNT ADAPTER PINS
Series
Plating
Code
Window
5 8 7
5 4 0
STANDARD
PIN
#8737
EZ-IN
PIN
#4048
-
-
-
-
1 0
1 0
-
-
-
-
No. of pins
-
-
-
-
-
-
-
-
Grid size
Pattern #
4 3 7
4 4 8
STAN-
DARD
EZ-IN
PIN
PCB MOUNT STANDARD
ADAPTER
PIN
#4098
.022 DIA.
.034 DIA.
.023
.062 .091
FOR PCB MOUNT STANDARD ADAPTER PIN
5 4 0
1 0
4 9 8
.018 DIA.
.127
FOR PCB MOUNT EZ-IN ADAPTER PIN
PCB MOUNT EZ-IN
ADAPTER
PIN
#4054
.022 DIA.
.034 DIA.
.016 DIA.
.023
.062 .091
5 4 0
1 0
4 5 4
Determined from footprint pattern pages 113 to 115
PLATING CODE XX=
.127
.013 DIA.
10
10μ” Au
Pin Plating
FOR BGA FEMALE SOCKET
SMT RECEPTACLE
TYPE
#8214
.043 DIA.
.024
.062 .115
.036 DIA.
.022 DIA.
.140
Series
Plating
Code
Window
5 8 2
-
1 1
-
No. of pins
-
11
10μ” Au
10μ” Au
-
Grid size
Pattern #
4 1 4
Determined from footprint pattern pages 113 to 115
SPECIFY PLATING CODE XX=
Sleeve (Pin)
Contact (Clip)
w w w. m i l l - m a x . c o m
112
516-922-6000

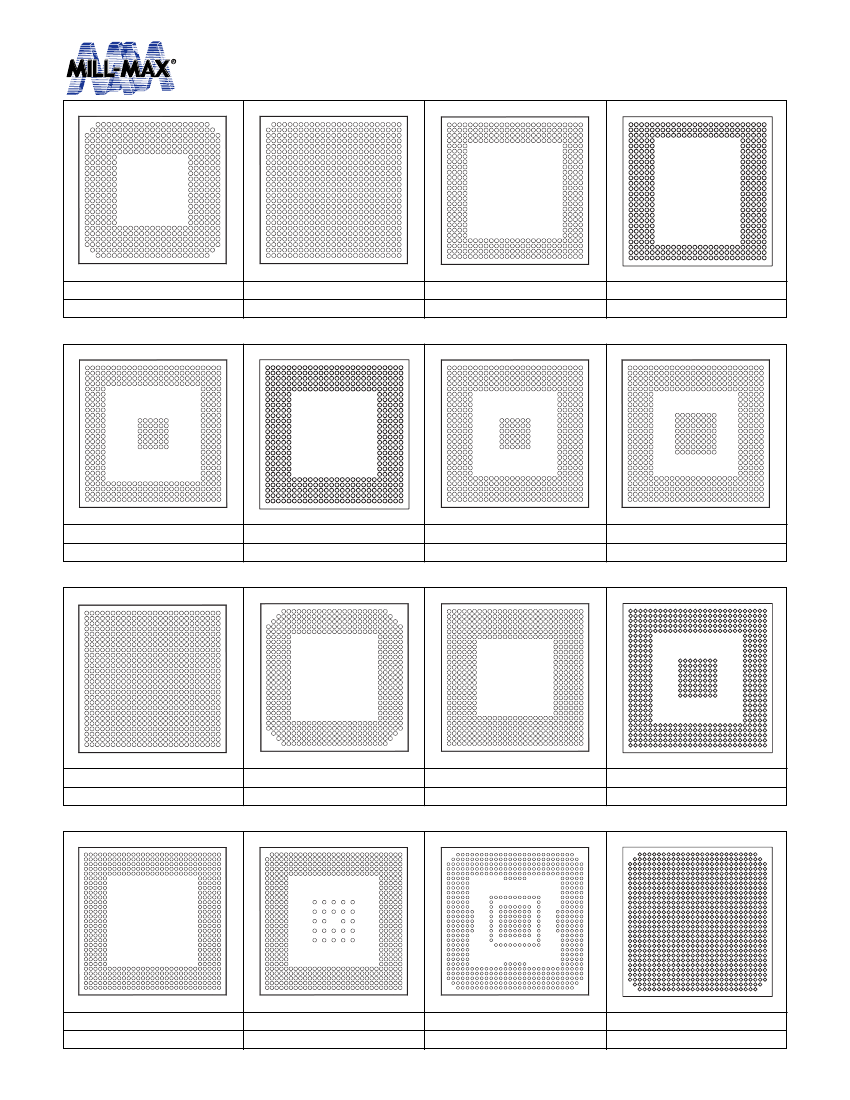

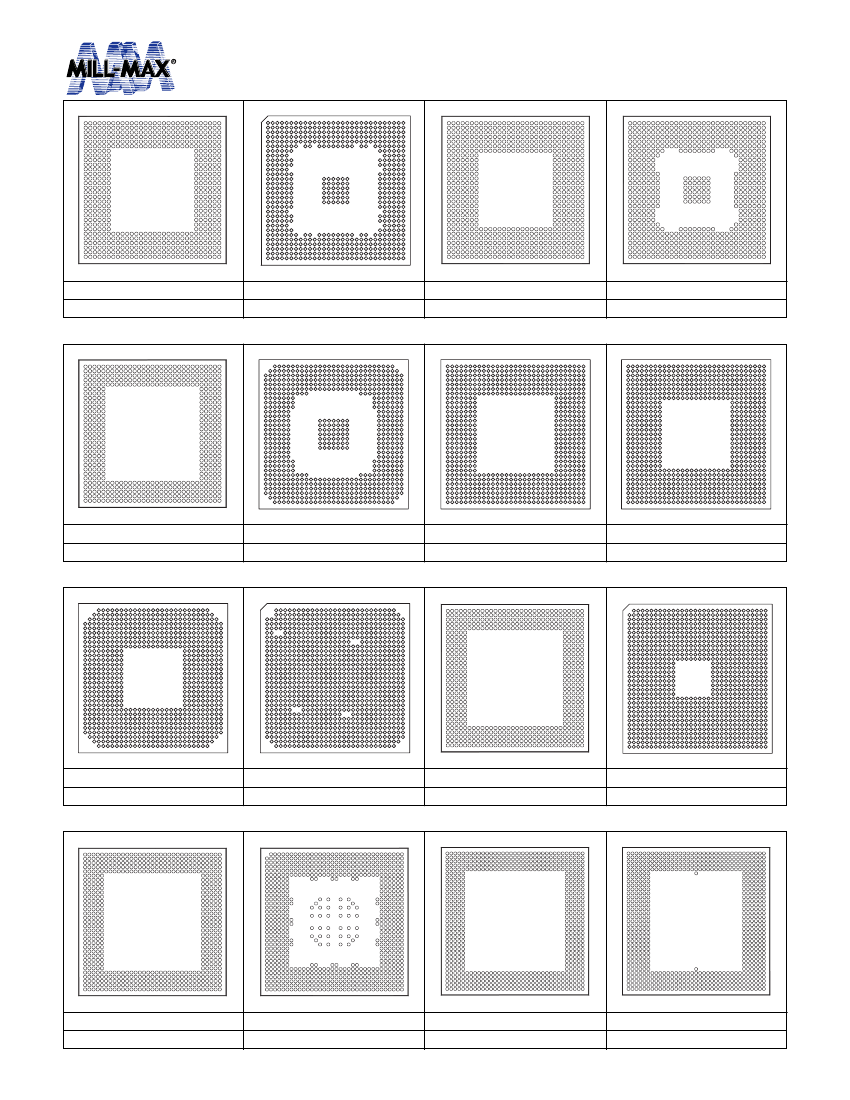

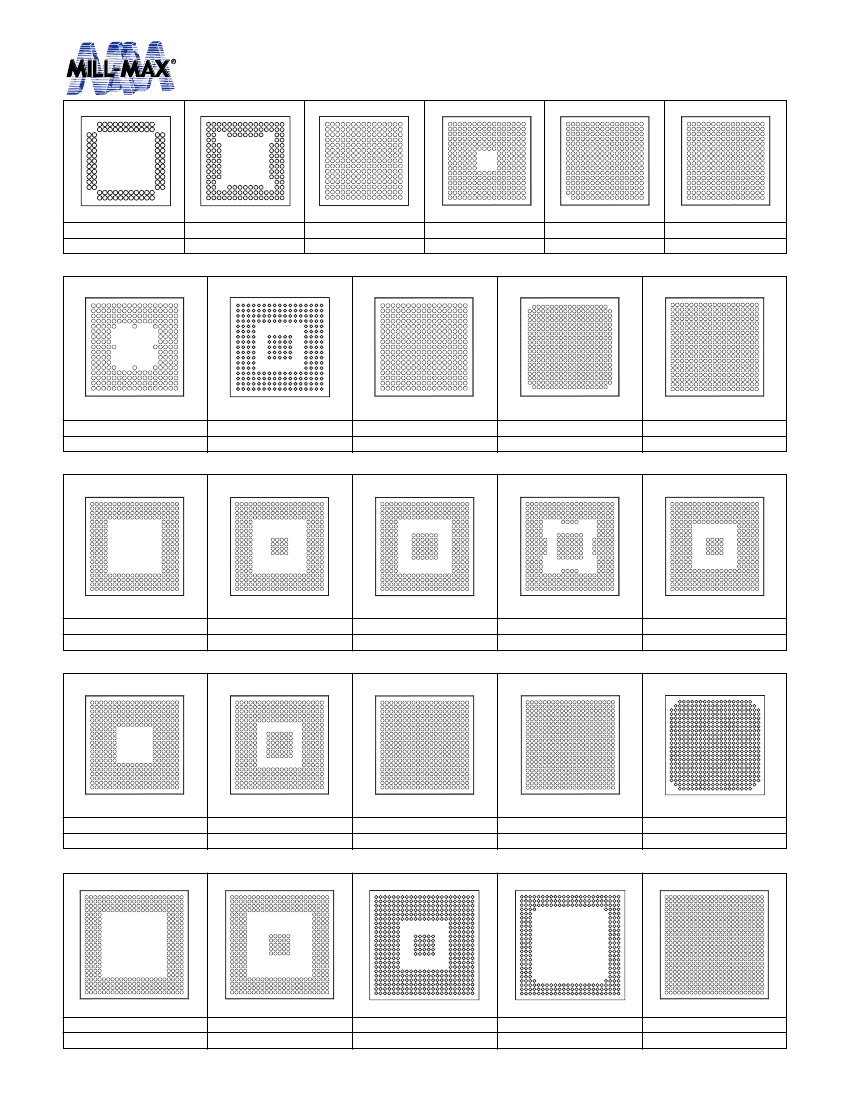

BALL GRID ARRAY FOOTPRINTS (.050” GRID)
Top view shown. Many other standard footprints are available.
Visit
www.mill-max.com
for a complete selection.
15 X 15
15 X 15
16 X 16
16 X 16
16 X 16
15 X 15
XXX-XX-088-07-005 XXX-XX-132-08-005 XXX-XX-225-07-006 XXX-XX-240-08-005 XXX-XX-255-08-005 XXX-XX-256-08-005
17 X 17
XXX-XX-216-09-005
17 X 17
XXX-XX-233-09-005
17 X 17
XXX-XX-289-09-000
19 X 19
XXX-XX-357-09-005
19 X 19
XXX-XX-361-10-005
20 X 20
XXX-XX-256-10-005
20 X 20
XXX-XX-272-10-005
20 X 20
XXX-XX-292-10-005
20 X 20
XXX-XX-308-10-005
20 X 20
XXX-XX-316-10-005
20 X 20
XXX-XX-336-10-005
20 X 20
XXX-XX-336-10-007
20 X 20
XXX-XX-400-10-005
21 X 21
XXX-XX-441-11-005
22 X 22
XXX-XX-472-11-005
23 X 23
XXX-XX-304-11-005
23 X 23
XXX-XX-329-12-005
23 X 23
XXX-XX-433-12-005
24 X 24
XXX-XX-256-12-006
24 X 24
XXX-XX-576-12-005
w w w. m i l l - m a x . c o m
113
516-922-6000
BALL GRID ARRAY FOOTPRINTS (.050” GRID)
Top view shown. Many other standard footprints are available.
Visit
www.mill-max.com
for a complete selection.
25 X 25
XXX-XX-444-13-005
25 X 25
XXX-XX-624-13-005
26 X 26
XXX-XX-352-13-005
26 X 26
XXX-XX-356-13-006
26 X 26
XXX-XX-388-13-005
26 X 26
XXX-XX-420-13-005
26 X 26
XXX-XX-456-13-005
26 X 26
XXX-XX-484-13-005
26 X 26
XXX-XX-676-13-005
27 X 27
XXX-XX-416-14-005
27 X 27
XXX-XX-504-14-005
28 X 28
XXX-XX-524-14-005
29 X 29
XXX-XX-480-15-005
29 X 29
XXX-XX-503-15-005
29 X 29
XXX-XX-576-15-007
29 X 29
XXX-XX-829-15-005
w w w. m i l l - m a x . c o m
114
516-922-6000
BALL GRID ARRAY FOOTPRINTS (.050” GRID)
