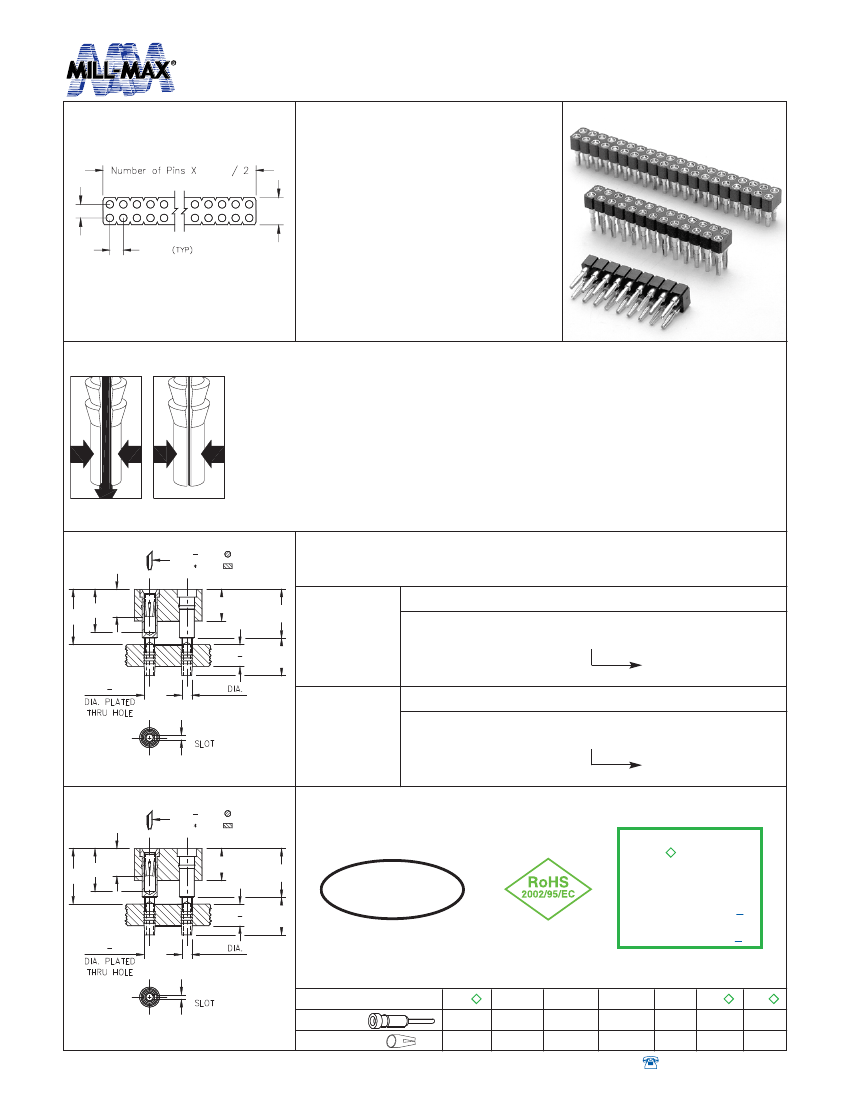

SINGLE-IN-LINE SOCKETS
Compliant Tail
Double Row
•
Compliant tail solderless
press-fit: M-M# 4612 or 4613 pins.
Use series 446...012 for 1,52 - 3,05
thick boards, and series 446...013
for 2,29 - 3,3 boards .See page 131
for details.
•
Compliant tail receptacles can be
inserted and removed without
degradation of the plated-thru-hole.
•
Hi-Rel, 4-finger #30 BeCu contact
is rated at 3 amps. See page 208 for
details.
APPLICATION OF COMPLIANT TAIL PINS
Series 446
2,54
2,54
2,54
5,08
Mill-Max’s patented* compliant tail features precision machined pins that are
hollow and slotted to conform to a 1,02 ± 0,08 diameter PTH. As the pin is
inserted, the slot compresses to fit the PTH, thus avoiding damage (see illustration
at left). The pin’s tail has fine serrations that form a perfect “gas tight” connection
that doesn’t require soldering. And since the pin doesn’t damage the hole,
compliant tail sockets and connectors can be easily replaced.
*Patent No. 4,799,904.
0,38 0,64
0,25 0,46
Ordering Information
Series 446...012
4,39
4,95
3,81
2,57
2,79
Fig. 1
1,52 2,54
0,94 1,09
0,89
3,05
446-XX-2_ _-41-012000
Specify # of pins
Series 446...013
02-64
0,46
Fig. 2
446-XX-2_ _-41-013000
Specify # of pins
02-64
Fig. 1
0,38 0,64
0,25 0,46
4,95
3,81
2,57
2,79
4,39
2,29 3,3
0,94 1,09
0,89
XX=Plating Code
See Below
4,45
For RoHS compliance,
select
plating
code.
For the all gold option
(XX=13) also change
part number from
446-XX-2XX-41-01X000
to
446-13-2XX-41-01X100
0,46
SPECIFY PLATING CODE XX=
13
0,76µm Au
91
10µ” Au
93
99
41
43
44
Sleeve (Pin)
0,25µm Au
200µ” Sn/Pb
5,08µm Sn/Pb 5,08µm Sn/Pb
200µ”Sn
5,08µm Sn 5,08µm Sn
0,76µm Au 5,08µm Sn/Pb
10µ” Au
0,76µm Au 5,08µm Sn
Fig. 2
Contact (Clip)
w w w. m i l l - m a x . c o m
55
516-922-6000
