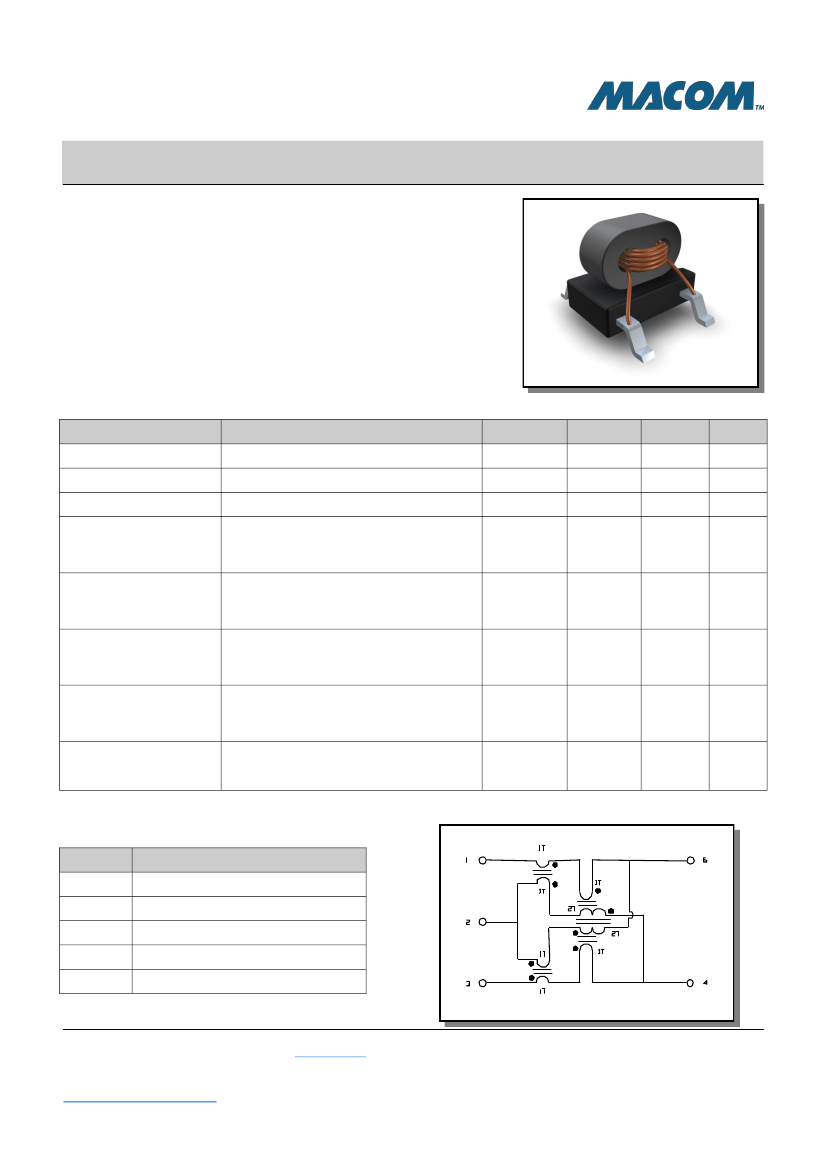

MABA-011032
Transformer, 1:3
40 MHz - 1000MHz
Features
1:3 impedance ratio
Surface mount
Available on tape and reel
260°C reflow compatible
RoHS Compliant and Pb free
Excellent temperature stability
Can be used on 50Ω and 75Ω systems
Rev. V2
Electrical Specifications:
Z
0
= 75Ω, T
A
= 25°C, P
in
= 0dBm
Parameter
Frequency Range
Impedance
Impedance Ratio
Insertion Loss1
(Pin4 to Pin3)
Insertion Loss2
(Pin4 to Pin1)
Amplitude Unbalance
40 - 500 MHz
500 - 1000 MHz
40 - 500 MHz
500 - 1000 MHz
40 - 500 MHz
500 - 1000 MHz
40 - 500 MHz
500 - 1000 MHz
ͦ
dB
dB
40 - 500 MHz
500 - 1000 MHz
dB
dB
dB
dB
dB
dB
ͦ
-
-
-
-
-
-
-
-
13
11
Conditions
Units
MHz
Ω
Min
40
75
1:3
1.0
1.2
1.5
2.0
0.5
0.8
11
22
17
13
1.7
2.5
2.0
3.2
± 1.3
± 1.7
±21
±32
-
-
Typ
Max
1000
Phase Balance
Input Return Loss
Pin Configuration
Pin No.
1
2
3
4
6
1
Schematic
Function
Output 2
Centre tap
Output 1
Input
Ground
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MABA-011032
Transformer, 1:3
40 MHz - 1000MHz
Insertion Loss: Pin4—Pin3
0.0
-0.5
-1.0
Rev. V2
Insertion Loss: Pin4—Pin1
0.0
-0.5
-1.0
dB
dB
-1.5
-2.0
-2.5
-3.0
-3.5
-4.0
40
147
253 360 467
573
680 787 893 1000
-1.5
-2.0
-2.5
-3.0
-3.5
-4.0
40
147 253
360 467
573 680
787 893 1000
Frequency (MHz)
Frequency (MHz)
Amplitude Balance
2.0
1.5
1.0
0.5
0.0
-0.5
-1.0
-1.5
-2.0
40
147 253
360 467 573
680
787 893 1000
Phase Balance
dB
Frequency (MHz)
Return Loss: Input
0
-5
-10
dB
-15
-20
-25
-30
40
147
253
360 467
573
680
787 893 1000
Frequency (MHz)
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MABA-011032
Transformer, 1:3
40 MHz - 1000MHz
Outline Drawing
Rev. V2
1.
2.
3.
4.
Dimensions in mm.
Tolerance: ±0.2mm unless otherwise noted.
Model number and lot code are printed on the reel.
Finish: CuSn6
Application Circuit
Recommended Footprint
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MABA-011032
Transformer, 1:3
40 MHz - 1000MHz
Tape & Reel Information
Parameter
Qty per reel
Reel size
Tape width
Pitch
A
0
B
0
K
0
Orientation
Units
-
mm
mm
mm
mm
mm
mm
-
Value
2000
330
12.00
8.00
4.50
5.40
4.70
F28
Rev. V2
Ordering Information
Part Number
MABA–011032
Description
Tape & Reel
Recommended Maximum Ratings
Parameter
Input Power
DC Current
Operating Temperature Range
Temperature data available on request
Units
mW
mA
°C
Min
Max
250
200
-40
+85
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MABA-011032
Transformer, 1:3
40 MHz - 1000MHz
Rev. V2
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
5
