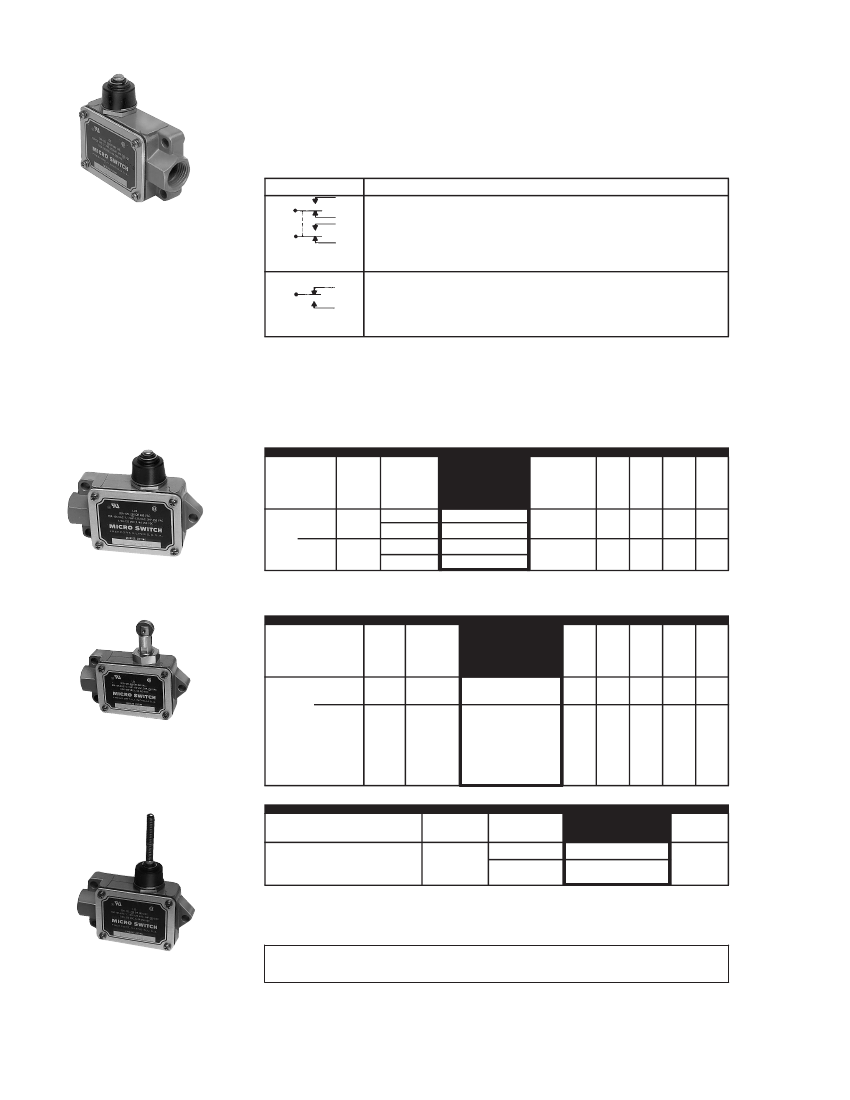

Limit and Enclosed Switches
High Capacity Enclosed Switches
FEATURES
Up to 20 ampere capacity
Cast aluminum housing with 3-hole
mounting
Right or left-hand (sealed or unsealed)
actuators
ELECTRICAL RATING
Circuitry
B
Electrical Rating
UL/CSA Rating:
10 amps, 125 or 250 VAC;
0.3 amp, 125 VDC; 0.15 amp, 250 VDC.
BAF1 Series
Cover seal, captive cover screws
Momentary or maintained contact
UL Recognized, file #E12252
CSA Certified, file #LR41372
Grounding screw
NEMA 1, 3*, 4*, and 13*
(* except BAF1-2RQ9 listings)
The elastomer boot on sealed actuator ver-
sions protects the actuating mechanism
and the internal basic switch from contami-
nants. There is a seal gasket between the
cover plate and the enclosures on all ver-
sions.
The cover plate is removed for ease of wiring
and switch replacement without demount-
ing the switch.
The actuator position is designated ‘‘right’’
or ‘‘left,’’ when looking at the nameplate.
Double-pole
Double-throw
D
High Capacity
SPDT
UL/CSA Rating:
20 amps, 125, 250 or 480 VAC;
1 Hp, 125 VAC; 2 Hp, 250 VAC;
1
⁄
2
amp, 125 VDC;
1
⁄
4
amp, 250 VDC;
Lamp Load — 10 amps, 125 VAC.
STRAIGHT PLUNGER ACTUATED SWITCHES
ORDER GUIDE
O.P.
mm
in.
53,19±0,76
2.094±.030
52,07±1,0
2.050±.040
O.F. P.T.
max. max.
N
mm
lbs.
in.
11,2 2,39
2.5
.094
11,2
2.5
3,59
.141
O.T.
min.
mm
in.
5,56
.219
3,96
.156
D.T.
max.
mm
in.
0,26
.010
1,53
.060
Description
With
seal
boot.
With seal boot, right-hand actuator
SPDT
DPDT
Elec.
Rating
D
B
Actuator
Position†
Right
Left
Right
Left
Catalog
Listing
BAF1-2RN-RH
BAF1-2RN-LH
DTF2-2RN-RH
DTF2-2RN-LH
ROLLER PLUNGER ACTUATED SWITCHES
ORDER GUIDE
Actuator
Posi-
tion†
Right
Left
Right
Left
O.P.
mm
in.
64,69
2.547
64,69
2.547
O.F. P.T.
max. max.
N
mm
lbs.
in.
11,1
2.5
35,6
8
2,39
.094
3,18
.125
O.T.
min.
mm
in.
3,96
.156
4,75
.187
D.T.
max.
mm
in.
0,25
.010
0,19
.0075
Description
Without
seal
boot.
Field
adjust-
able
360°
horizon-
tally.
SPDT
Has
O-ring
actuator
seal
SPDT
Elec.
Rating
D
D
Catalog
Listing
BAF1-2RQ9-RH
BAF1-2RQ9-LH
BAF1-2RQN8-RH
BAF1-2RQN8-LH
Without seal boot,
right-hand actuator
FLEXIBLE ROD ACTUATED SWITCHES
ORDER GUIDE
Description
With seal boot. Operates from
any direction, except direct pull.
SPDT.
N Newtons
† When looking at nameplate.
Elec.
Rating
D
Actuator
Position†
Right
Left
Catalog
Listing
BAF1-2RN18-RH
BAF1-2RN18-LH
P.T.
max.
15°
Characteristics: O.F. — Operating Force; P.T. —
Pretravel; O.T. — Overtravel; D.T. — Differential Travel;
O.P. — Operating Position
With seal boot,
right-hand actuator
For rapid response – off the shelf service, all
bold face
listings are normally stocked
items.
A104
Honeywell
Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Limit and Enclosed Switches
High Capacity Enclosed Switches

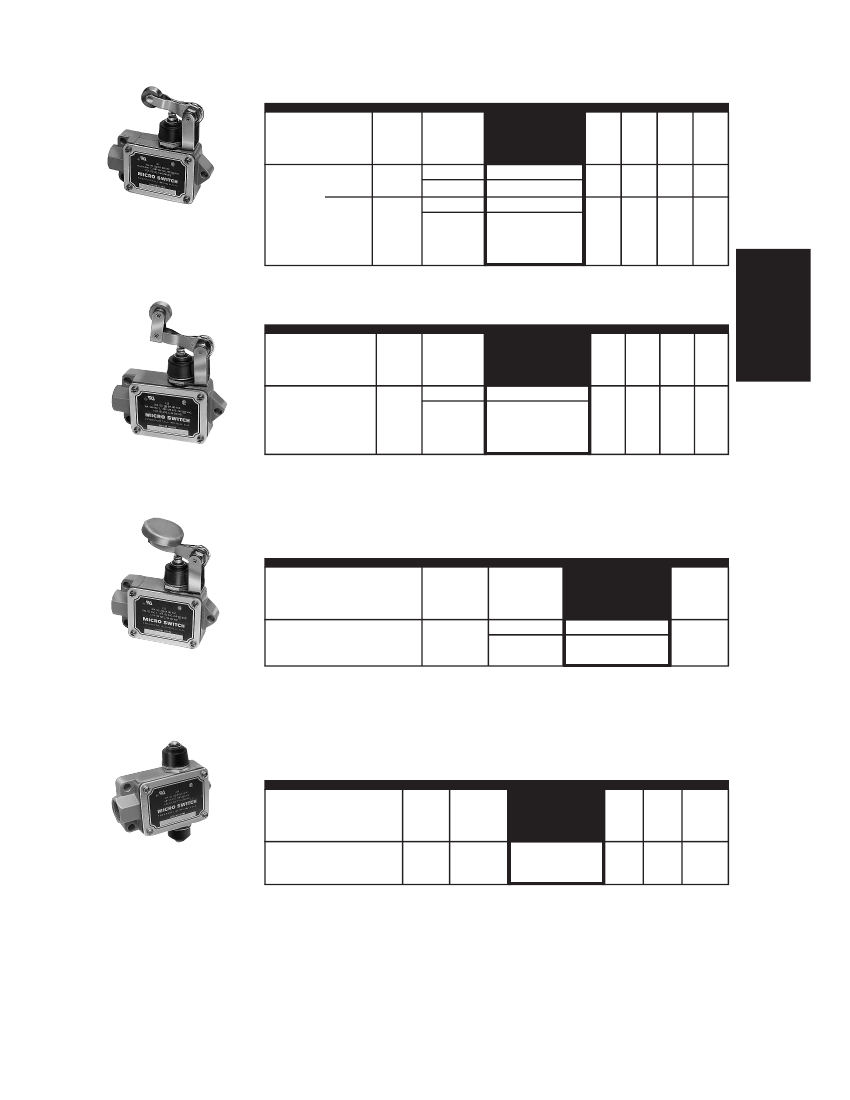

ROLLER LEVER ACTUATED SWITCHES
ORDER GUIDE
O.F.
max.
N
lbs.
8,90
2
11,1
2.5
BAF1 Series
Description
With seal
boot. Field
adjustable
360°
horizontally
and 225°
vertically.
SPDT
Elec.
Rating
D
B
Actuator
Position†
Right
Left
Right
Left
Catalog
Listing
BAF1-2RN2-RH
BAF1-2RN2-LH
DTF2-2RN2-RH
DTF2-2RN2-LH
P.T.
max.
mm
in.
5,56
.219
7,93
.312
O.T.
min.
mm
in.
6,35
.250
5,56
.219
D.T.
max.
mm
in.
0,51
.020
3,05
.120
With seal boot,
right-hand actuator
DPDT
Limit/Enclosed
ONE-WAY ROLLER LEVER ACTUATED SWITCHES
ORDER GUIDE
O.F.
max.
N
lbs.
8,90
2
P.T.
max.
mm
in.
5,56
.219
O.T.
min.
mm
in.
6,35
.250
D.T.
max.
mm
in.
0,51
.020
Description
With seal boot. Field
adjustable 360°
horizontally and 180°
vertically. SPDT.
With seal boot
right-hand actuator
Elec.
Rating
D
Actuator
Position†
Right
Left
Catalog
Listing
BAF1-2RN28-RH
BAF1-2RN28-LH
MANUALLY ACTUATED SWITCHES
ORDER GUIDE
Has 1.5 inch (38,1 mm) diameter button.
O.F.
max.
N
lbs.
8,90
2
Description
With seal boot. Field adjustable
360° horizontally and 180°
vertically. SPDT.
Elec.
Rating
D
Actuator
Position†
Right
Left
Catalog
Listing
BAF1-2RN4-RH
BAF1-2RN4-LH
With seal boot,
right-hand actuator
MAINTAINED CONTACT (RESET) PLUNGER ACTUATED SWITCHES
ORDER GUIDE
Contact transfer is maintained after either plunger is operated. (Top plunger provides
more accurate and uniform characteristics.)
O.F.
max.
N
lbs.
7,79
1.75
P.T.
max.
mm
in.
2,39
.094
O.T.
min.
mm
in.
4,45
.219
Description
With seal boots,
right-hand actuator
With seal boot on both top
and bottom (reset)
plungers. SPDT.
N Newtons
† When looking at nameplate.
Elec.
Rating
D
Actuator
Position†
Right
Catalog
Listing
BAF1-3RNX1
Characteristics: O.F. — Operating Force; P.T. —
Pretravel; O.T. — Overtravel; D.T. — Differential Travel
Honeywell
Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
A105
Limit and Enclosed Switches
High Capacity Enclosed Switches
REPLACEMENT PARTS
Basic Packets include mounting hardware,
an insulator, and a cover seal ring. The plun-
ger seal boot and retaining hardware may
be ordered separately as
10PA2.
CONDUIT SEALING PACKETS
Catalog
Listing
Packet
2PA6
2PA16
2PA1
Switch Type
BAF1-2RN
BAF1-2RQ9
BAF1-2RQN8
BAF1-2RN18
BAF1-2RN2
BAF1-2RN28
BAF1-2RN4
BAF1-3RNX1
DTF2-2RN
DTF2-2RN2
* Includes basic packet.
** Includes seal boot.
BAF1 Series
Catalog Listing
Replacement Part Numbers
Switching Unit*
BA-2R708-P7
BA-2R708-P7
BA-2R708-P7
BA-2R708-P7
BA-2R708-P7
BA-2R708-P7
BA-2R708-P7
BA-3RX717
DT-2R-A7
DT-2R-A7
Basic Packet
1PA10
1PA10
1PA10
1PA10
1PA10
1PA10
1PA10
1PA23
—
—
Actuator
8PA1**
8PA10
8PA52
6PA20**
6PA2**
6PA16**
6PA9**
8PA1**
8PA32**
6PA2**
Cable O.D. Inches
.400 –.435
.435 –.470
.530 –.570
(See page A41 for description.)

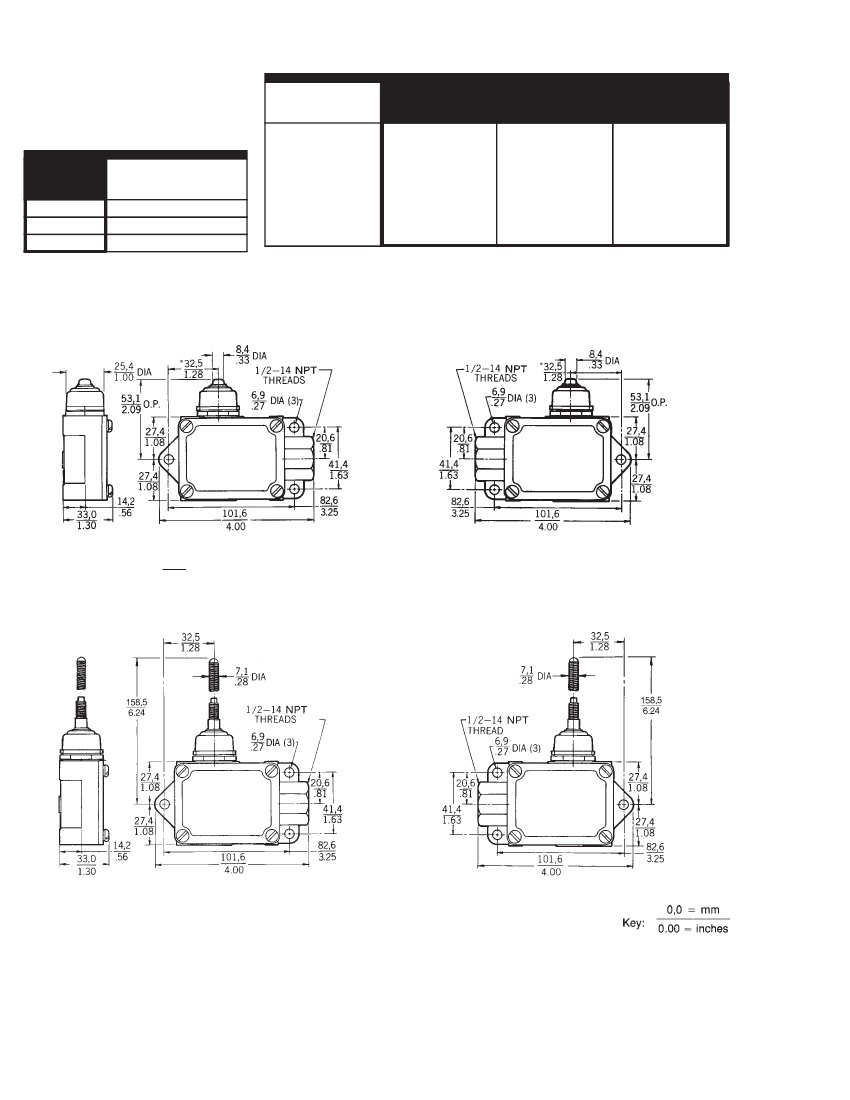

MOUNTING DIMENSIONS
(For reference only)
PLUNGER (with seal boot)
Left-hand
*28,2
on DTF2 Types
1.11
Right-hand
COIL SPRING (with seal boot)
Left-hand
Right-hand
A106
Honeywell
Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Limit and Enclosed Switches
High-Capacity Enclosed Switches

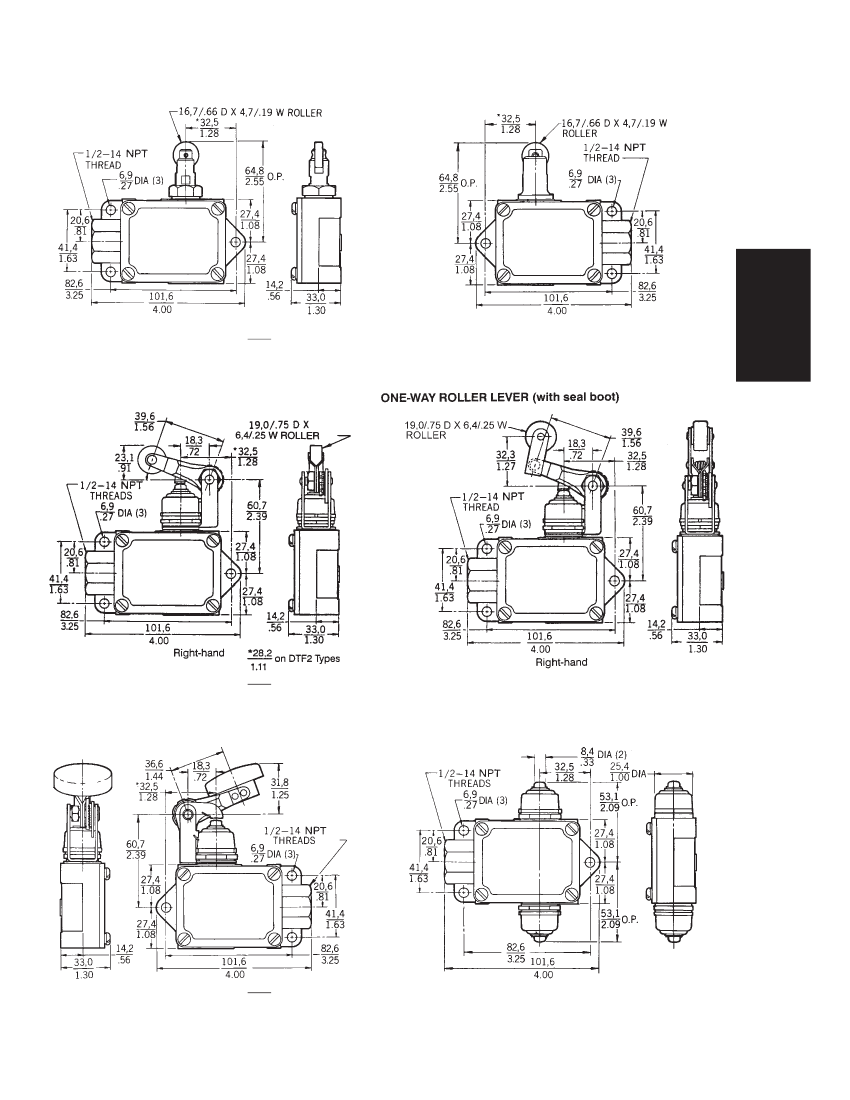

MOUNTING DIMENSIONS
(For reference only)
ROLLER PLUNGER (without seal boot)
BAF1 Series
Limit/Enclosed
Right-hand
*28,2
on DTF2 Types
1.11
Left-hand
ROLLER LEVER (with seal boot)
Right-hand
*28,2
on DTF2 Types
1.11
Right-hand
MANUAL (with seal boot)
PLUNGER (Reset)
(with seal boot)
Left-hand
*28,2
on DTF2 Types
1.11
Right-hand
Honeywell Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
A107
