Crystal oscillator
Epson Toyocom
Product Number (please contact us)
X1G002861xxxx00

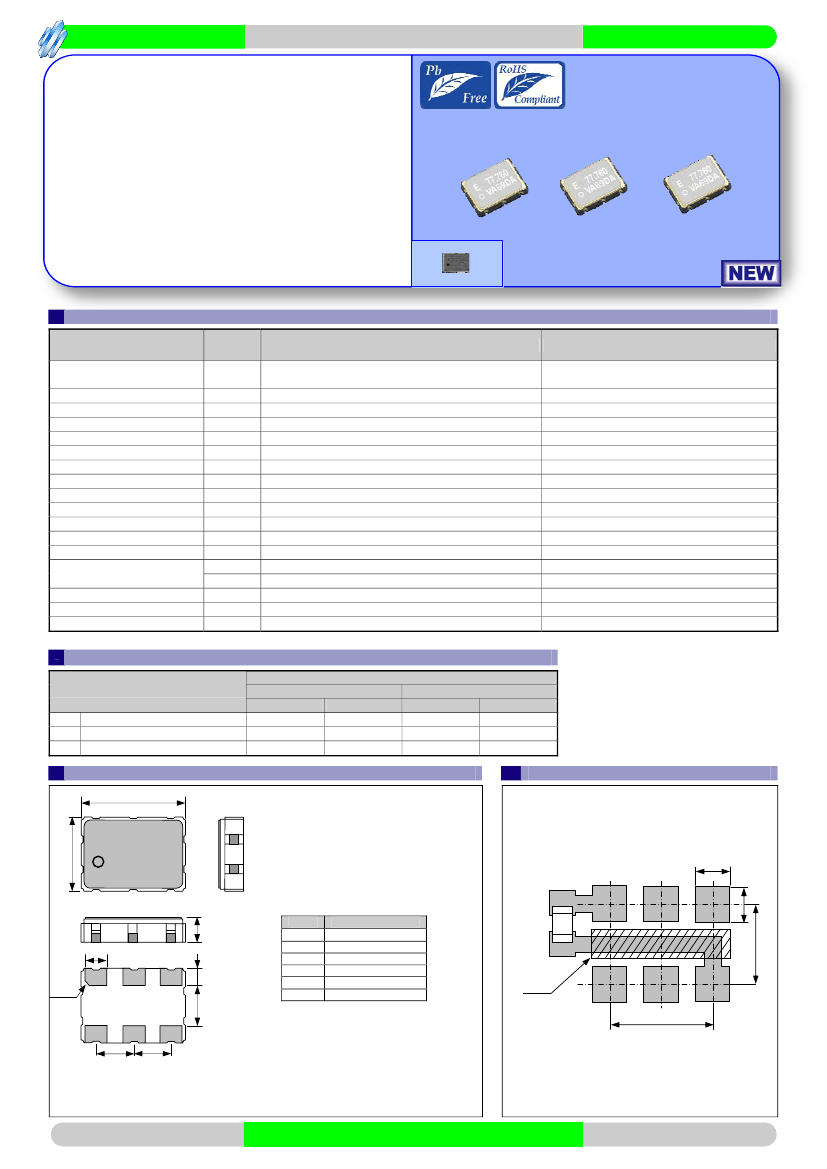

VOLTAGE -CONTROLLED CRYSTAL OSCILLATOR (VCXO)
VG - 4512CA
•Frequency
range
•Supply
voltage
•Absolute
pull range
•External
dimensions
•Function
•Output
:
:
:
:
:
70 MHz to 200 MHz
3.3 V
-6
-6
50 × 10 , 100 × 10
7.0 × 5.0 × 1.6 mm
Output enable(OE)
Active High or Low
: LV-PECL
Actual size
Specifications (characteristics)
Item
Output frequency range
Symbol
Specifications
70.000 MHz to 200.000 MHz
Remarks
Please contact us for inquiries regarding
available frequencies.
Store as bare product after unpacking
Includes frequency aging (20 years)
No load condition.
V
C
= 1.65 V
±
1.5 V
DC level
V
C
= 0.15 to 3.15 V
–
–
–
–
*2
*2
20 % V
CC
to 80 % V
CC
level
Time at minimum supply voltage to be 0 s
+25
°C,
V
CC
=3.3 V, 20 years
f
O
Supply voltage
V
CC
3.3 V
±0.165
V
Storage temperature range
T_stg
-55
°C
to +125
°C
Operating temperature range
T_use
As per below table.
-6
Frequency tolerance
f_tol
±50 ×
10 Max.
Current consumption
I
CC
70 mA Max.
Absolute pull range
APR
As per below table.
Input resistance
Rin
100 kΩ Min.
Frequency change polarity
-
Positive slope
Symmetry
SYM
45 % to 55 %
High output voltage
V
OH
Vcc-1.1 V Min.
Low output voltage
V
OL
Vcc-1.5 V Max.
Output load condition (ECL)
L_ECL
LV-PECL
Output enable / disable input
V
IH
70 % V
CC
Min.
voltage
V
IL
30 % V
CC
Max.
Rise time / Fall time
t
r
/
t
f
1.0 ns Max.
Start-up time
t_str
10 ms Max.
Frequency aging
f_aging
This is included frequency tolerance
*1
Please keep V
C
pin open or ground while powering up V
CC
.
Operating temperature range
Operating temperature range
G
J
K
-40 °C to +85 °C
-20 °C to +70 °C
0 °C to +70 °C
Absolute pull range
±50 × 10
-6
Min.
±100 × 10
-6
Min.
Active High
Active Low
Active High
Active Low
GGCT
GGCL
GHCT
GHCL
JGCT
JGCL
JHCT
JHCL
KGCT
KGCL
KHCT
KHCL
(Unit :mm)
External dimensions
7.0±0.2
#6
#5
#4
Footprint (Recommended)
(Unit :mm)
5.0±0.2
E 155.520
VAG674A
C (ex. 0.01 µF)
#1
#2
#3
#6
#5
1.8
#4
2.0
1.6±0.2
Pin map
Pin
1
2
3
4
5
6
Connection
Vc
OE
GND
OUT1(Positive)
OUT2(Negative)
Vcc
C
4.2
Resist
#1
Note (*2).
●Active
High
OE pin = "H" or "open" : Specified frequency output.
OE pin = "L" : Output is high impedance, oscillation stops.
●Active
Low
OE pin = "L" or "open" : Specified frequency output.
OE pin = "H" : Output is high impedance, oscillation stops.
1.4
C0.5
2.6
1.2
#2
5.08
#3
2.54
2.54
To maintain stable operation, provide a 0.01uF to 0.1uF
by-pass capacitor at a location as near as possible to the
power source terminal of the crystal product (between Vcc
- GND).
