COPAL ELECTRONICS
PRESSURE SWITCHES WITH GAUGE
PS60
■
ENVIRONMENTAL CHARACTERISTICS
Test item
Vibration
Shock
Moisture resistance
Pressure cycling
Test conditions
10 ~ 500 Hz, 1.5 mm maximum/98.1 m/s
2
, 3 directions for 2 hours each
490 m/s
2
, 3 directions for 3 times each
40 °C, 90 ~ 95 %RH, 240 hrs.
0 ~ Rated pressure, 10
6
cycles
Permissible change
Pressure indication and switch operating output :
±
2 %F.S., maximum each after test
EMC
EMI : EN55011: 2007, A2 : 2007 Group 1, class B
EMS : EN61326-1 : 2006 Table 2
Pressure indication and switch operating output, alalog
output :
±
5 %F.S., maximum during test
■
CIRCUIT DIAGRAMS
●
NPN open collector
1
2
●
PNP open collector
1
2
LED
Indicator
Power
B
Load
Load
LED Indicator
Power
B
S.Output1
S.Output2
Load
Load
Pressure
Sensor
Main circuit
S.Output1
S.Output2
Common
Pressure
Sensor
Main circuit
Common
LED
Pressure indication
LED
Pressure indication
■
SWITCH OUTPUT MODE
Output
Mode
Operation
Separate
SW1
Window comparator
Separate
SW2
Window comparator
Separate mode
（HI
operation）
ON
OFF
-Pr
P1: SW1
H
P2: SW2
Pr
H
Window comparator mode
（A
operation）
ON
OFF
P1
-Pr
H
H
P2
Pr
ON
HI
LO
A
B
HI
LO
A
B
1
2
3
4
5
6
7
8
Pressure setting
(Operating point)
Setting 1
(Lower limit) : Setting 1
(Upper limit) : Setting 2
Setting 2
(Lower limit) : Setting 1
(Upper limit) : Setting 2
（LO
operation）
ON
OFF
Pr
H
H
（B
operation）
ON
P1: SW1
-Pr
P2: SW2
OFF
-Pr
P1
H
H
P2
OFF
Pr
P1≦P2 or P1≧P2
H：Switch
hysteresis、
P1＝Setting
1、P2＝Setting 2
P1≦P2–2H
Note 1. In the Separate Mode, setting 1 corresponds to SW1, and
Setting 2 corresponds to SW2.
Note 2. In the Window Comparator Mode, the minimum value for
SW1 and SW2 corresponds to Setting 1 and the maximum
value corresponds to Setting 2.
Number
Rated pressure range
102R
–100 ~ 100
—
–75 ~ 75
302R
–100 ~ 300
—
–75 ~ 225
103R
—
–0.10 ~ 1.00
—
–1.0 ~ 10.0
–14 ~ 145
—
■
DISPLAY RANGE
●
Display range can be selected as the table.
Note) “–” on the table indicates that it is not selectable in relation to resolution and display lines.
❈
: In terms of setting display range, please verify the default mode.
1 (kPa)
2 (MPa)
3
4
5
6
–1.00 ~ 1.00 –1.00 ~ 3.00
–14.5 ~ 14.5 –14.5 ~ 43.5
29.5 ~ 0.0
※
29.5 ~ 0.0
※
※
Atmospheric pressure
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
PRESSURE SWITCHES WITH GAUGE
PS60
■

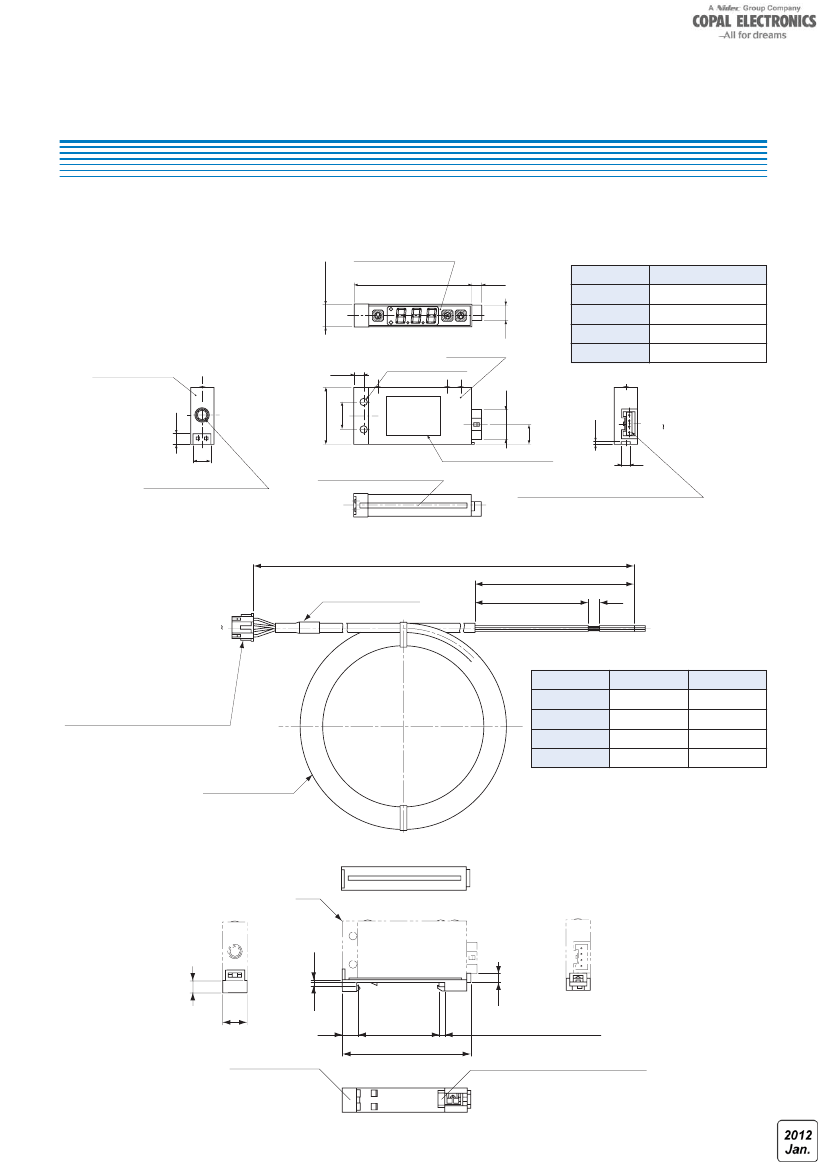

OUTLINE DIMENTIONS
●
Pressure port M type
(NMCN, PMCN)
0
–0.2
Unless otherwise specified, tolerance :
±
0.5
Panel seet (Polyester)
10.2
(52.5)
4.5
(Unit: mm)
Terminal no.
4
3
Connection
SW output 1
SW output 2
Power (DC10.8 ~ 26.4 V)
Common
(7)
2
1
Housing (PBT)
Pressure port (PA MXD6)
4.5
2 –
φ
3.1 Mounting hole
13.2
25
–0.2
4.6
1.1
< Terminal No. >
4
1
4
0
12
8
Pressure port (BSBM, Ni-plated)
Insert screw : M5 depth 5
DIN rail adapter (accessory)
Part No. (Laser marking)
Connector : Pitch / 4 poles
Housing : Manufactured by JST (XAP-04V-1)
■
Accessories
●
Connector cable
Length : 1500
±
50
Heat shrink tube (Black)
4
1
70
±
20
50
±
10
(5)
9
Pin no.
Housing : Manufactured by JST (XAP-04V-1)
Contact : Manufactured by JST (SXA-001T-P0.6L)
Wire color
Black
White
Blown
Blue
Connection
SW output 1
SW output 2
Power
B
Common
4
3
2
1
4-core cable (
φ
4)
AWG26 ULNo.2844
●
DIN rail adapter
PS60
5
1.5
10
1.1
6.5
DIN base : PBT
DIN rail (width 35)
adaptaion
54.2
Tolerated stroke 2 maximuum
Slide (DIN stopper) : POM
