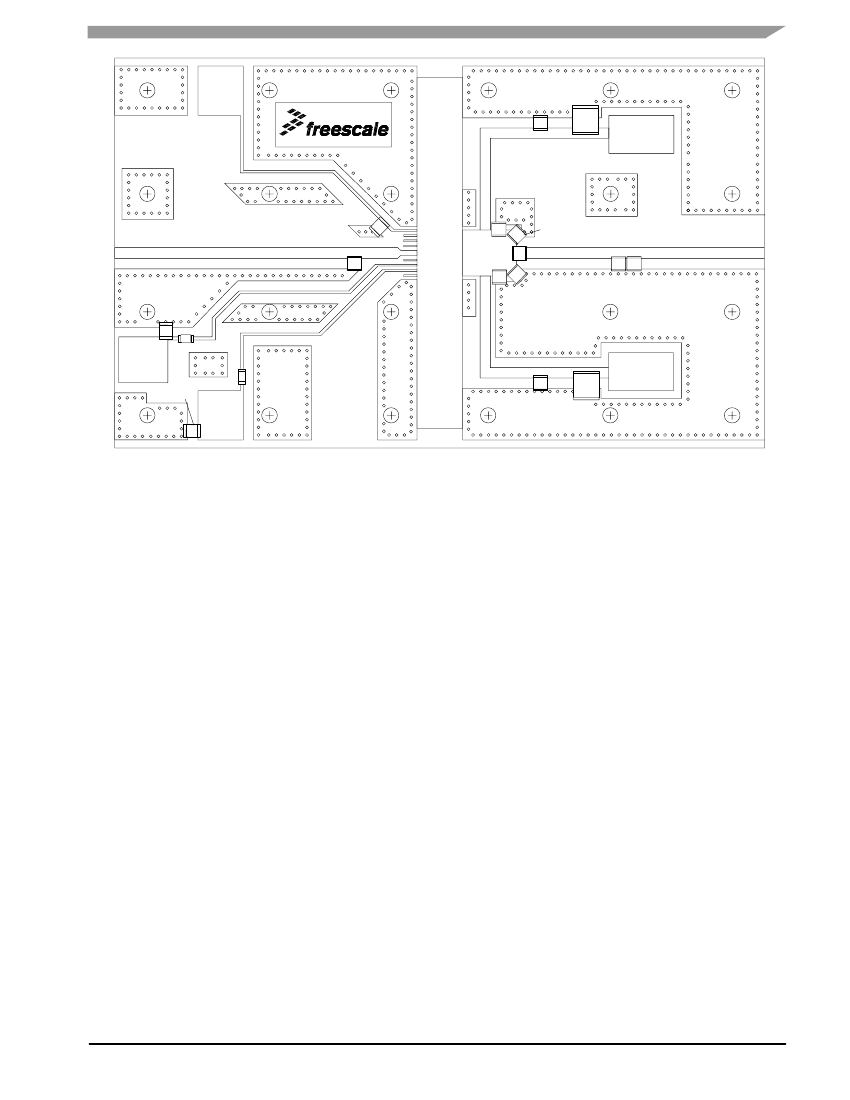

MW6IC2015GMBR1

Description
IC pwr amp RF 26v 15w to272-16gw
CategoryTopical application    Wireless rf/communication
File Size1MB,28 Pages
ManufacturerFREESCALE (NXP)
Download Datasheet Parametric Compare View All

MW6IC2015GMBR1 Overview

IC pwr amp RF 26v 15w to272-16gw

MW6IC2015GMBR1 Parametric

Parameter NameAttribute value
Datasheets
MW6IC2015NBR1,GNBR1
Standard Package500
CategoryRF/IF and RFID
FamilyRF Amplifiers
PackagingTape & Reel (TR)
Frequency1.8GHz ~ 1.99GHz
P1dB-
Gai26dB
Noise Figure-
RF TypeCellular, W-CDMA, GSM, EDGE, TDMA, CDMA
Voltage - Supply26V
Current - Supply100mA
Test Frequency-
Package / CaseTO-272-16 Variant, Gull Wing
Supplier Device PackageTO-272 WB-16 GULL
Freescale Semiconductor
Technical Data
Document Number: MW6IC2015N
Rev. 3, 12/2008
The MW6IC2015N wideband integrated circuit is designed for base station
applications. It uses Freescale’s newest High Voltage (26 to 32 Volts) LDMOS
IC technology and integrates a multi - stage structure. Its wideband on - chip
design makes it usable from 1805 to 1990 MHz. The linearity performances
1805 - 1990 MHz, 15 W, 26 V
cover all modulation formats for cellular applications: GSM, GSM EDGE, PHS,
GSM/GSM EDGE, CDMA
TDMA, CDMA, W - CDMA and TD - SCDMA.
RF LDMOS WIDEBAND
Final Application
INTEGRATED POWER AMPLIFIERS
Typical Two - Tone Performance: V
DD
= 26 Volts, I
DQ1
= 100 mA, I
DQ2
=
170 mA, P
out
= 15 Watts PEP, f = 1930 MHz
Power Gain — 26 dB
Power Added Efficiency — 28%
IMD — - 30 dBc
CASE 1329 - 09
Driver Application
TO - 272 WB - 16
Typical GSM EDGE Performance: V
DD
= 26 Volts, I
DQ1
= 130 mA, I
DQ2
=
PLASTIC
170 mA, P
out
= 3 Watts Avg., Full Frequency Band (1805 - 1880 MHz or
MW6IC2015NBR1
1930 - 1990 MHz)
Power Gain — 27 dB
Power Added Efficiency — 19%
Spectral Regrowth @ 400 kHz Offset = - 69 dBc
Spectral Regrowth @ 600 kHz Offset = - 78 dBc
EVM — 0.8% rms
CASE 1329A - 04
Capable of Handling 3:1 VSWR, @ 26 Vdc, 1990 MHz, 15 Watts CW
TO - 272 WB - 16 GULL
Output Power
PLASTIC
Stable into a 3:1 VSWR. All Spurs Below - 60 dBc @ 100 mW to 8 W CW
MW6IC2015GNBR1
P
out
.
Features
Characterized with Series Equivalent Large - Signal Impedance Parameters
and Common Source Scattering Parameters
On - Chip Matching (50 Ohm Input, DC Blocked, >5 Ohm Output)
Integrated Quiescent Current Temperature Compensation with
Enable/Disable Function
(1)
Integrated ESD Protection
Designed for Lower Memory Effects and Wide Instantaneous Bandwidth Applications
225°C Capable Plastic Package
RoHS Compliant
In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel
RF LDMOS Wideband Integrated
Power Amplifiers
MW6IC2015NBR1
MW6IC2015GNBR1
V
DS1
RF
in
RF
out
/V
DS2
GND
V
DS1
NC
NC
NC
RF
in
NC
V
GS1
V
GS2
NC
GND
1
2
3
4
5
6
7
8
9
10
11
16
15
GND
NC
14
RF
out
/
V
DS2
V
GS1
V
GS2
Quiescent Current
Temperature Compensation
(1)
13
12
NC
GND
Figure 1. Functional Block Diagram
(Top View)
Note: Exposed backside of the package is
the source terminal for the transistors.
Figure 2. Pin Connections
1. Refer to AN1977,
Quiescent Current Thermal Tracking Circuit in the RF Integrated Circuit Family
and to AN1987,
Quiescent Current Control
for the RF Integrated Circuit Device Family.
Go to http://www.freescale.com/rf. Select Documentation/Application Notes - AN1977 or AN1987.
©
Freescale Semiconductor, Inc., 2006-2008. All rights reserved.
MW6IC2015NBR1 MW6IC2015GNBR1
1
RF Device Data
Freescale Semiconductor
