NEMA 6 Rated Die-Cast Enclosure Antennas
IAS Systems
DCE-ANT Series
10”
X
7.1”
X

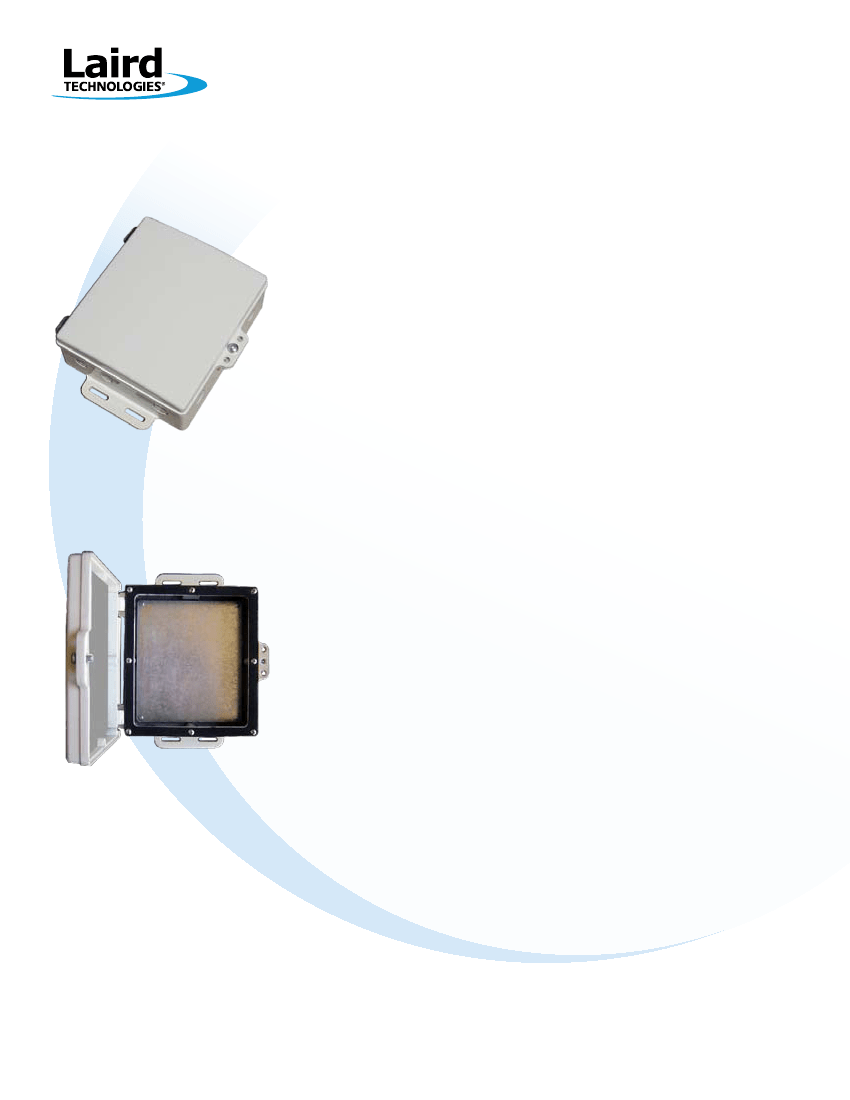

2.25” Die-Cast Waterproof Enclosure
The DCE-ANT series die-cast aluminum enclosures with integrated antenna from Laird Technologies
are designed for extremely long life in outdoor environments. The powder coat paint over aluminum
construction offers unsurpassed resistance to corrosion. The hinged cover/antenna radome is constructed
of UV resistant plastic. The pole mount hardware includes heavy galvanized pole clamps and stainless steel
U-bolts and attachment nuts. The die-cast enclosure has extra heavy duty mounting flanges for reliable
mounting to poles or surface mounting to walls.
The most unique feature is the inclusion of 8 engineered hole knockouts which allow for many different
configurations of connectors and feedthru’s without the need for drilling holes. The knockouts are easily
removed using a Flat Blade Screwdriver and hammer. The enclosures have qty. 4 threaded ¼” tall standoffs
in the base for mounting a user plate (included), which in turn can hold the users electronics. This
configuration provides universal mounting which is fully customizable by the user.
FEATURES
•
Integrated VPOL antennas in UV plastic hinged cover
Choice of:
• 2400-2700MHz
12dBi Wide Band VPOL
• 4940-5850MHz
19dBi Wide Band VPOL
•
2400-2485, 4940-5850MHz Dual Band 12/15 dBi VPOL
•
2300-2700MHz 14 dBi VPOL
•
3300-3800MHz 16 dBi VPOL
•
Die cast aluminum enclosure with white epoxy powder coat paint
•
Qty 8 engineered hole knockouts for many possible configurations. No drilling required!
•
Qty 4 0.25” tall threaded standoffs and mounting plate for mounting of electronics inside enclosure
•
Pole mount or wall mount
•
Nema 6 rated for long term weatherproofing
•
Various connector configurations available from stock
MARKETS
•
Wireless base stations
•
Wireless client radios
•
Mesh networks
•
Public safety wireless systems
•
802.11 a/b/g wireless systems
•
2.5GHz WiMAX
global
solutions:
local
support
USA: +1 800 323.3757
Europe: +46-8-555.722-00
Asia: +886-2-2286-2828
sales@pacwireless.com
www.lairdtech.com
TM
NEMA 6 Rated Die-Cast Enclosure Antennas
Innovative
Technology
for a
Connected
World
DCE-ANT Series
IAS Systems
Nema 6 Die-Cast Enclosure
Specifications
Knockouts (Qty 8)
Knockout Locations
Internal Standoffs
Useable Interior Space
Mounting
Cover Seal
Solar Heat Rise
Overall Size (L x W x H)
Weight
Qty 2 0.810” diameter
Qty 6 0.625” diameter
Qty 3 on bottom, Qty 3 on right side,
Qty 1 on top and Qty 1 in back
(Qty 4) 8-32 tapping, 6.5” x 5.5” centers,
0.25” height
7.125” x 6.125” x 2”
(181 x 156 x 51mm)
1” to 2” pole using included bracket kit,
or wall mount using user supplied screws
High performance EPDM gasket
Internal temperature
≤
4 deg C above
external ambient
10” x 7.1” x 2.25”
(254 x 180 x 57mm)
40oz (1.13kg)

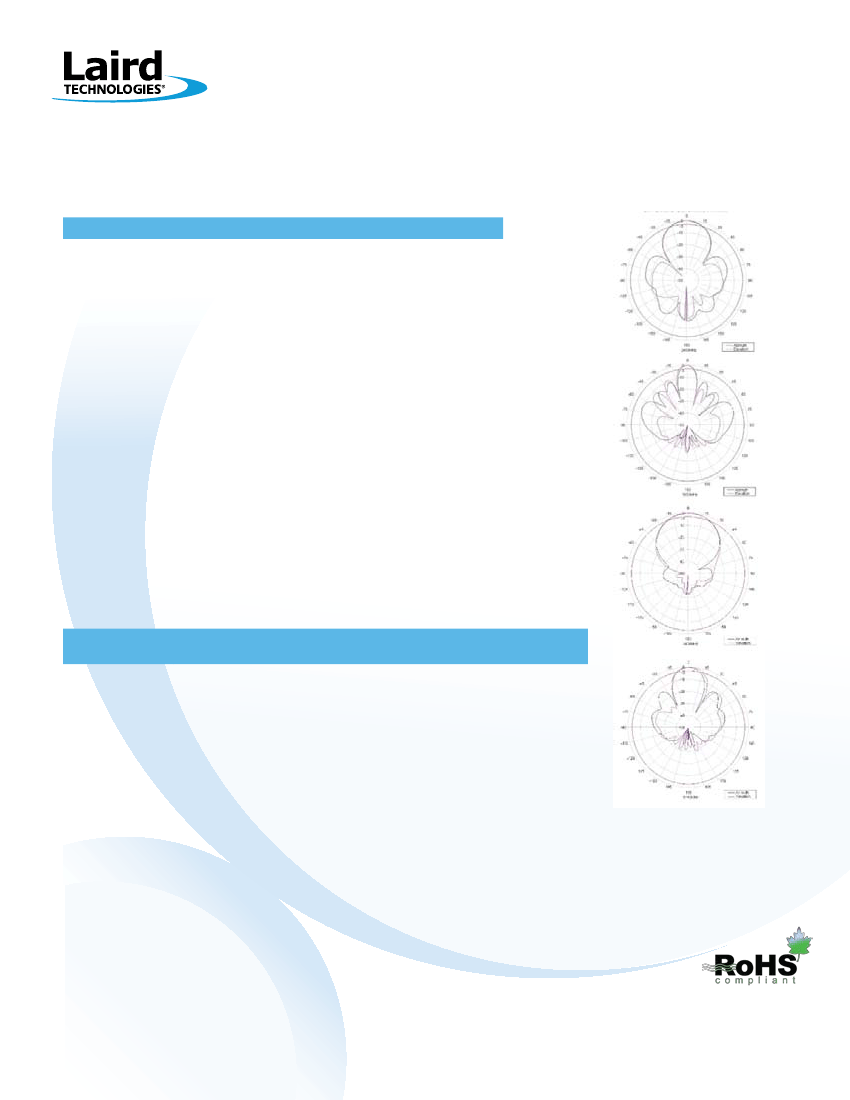

Antenna Patterns
Nema 6 Enclosed Antennas
MODEL
DCE-ANT2412
DCE-ANT5819
DCE-ANT2314
DCE-ANT3516
DCE-ANT2458
Dual Band
Frequency
(MHz)
2400-2485
4940-5850
2300-2700
3300-3800
2400-2485
4940-5850
GAIN
(dBi)
12
19
14
16
12
15
Bmwidth
(deg)
35
15
30
30
43
22
VSWR
1.5:1
1.5:1
2.0:1
1.7:1
1.5:1
Impedance
(Ohms)
50
50
50
50
50
Input
(watts)
10
10
10
10
10
ANT-SPEC-DCE-ANT 1008
