Product Brief
BGA700L16
Low Noise Amplifier for IEEE 802.11a/b/g/n
T h e B G A 7 0 0 L 1 6 is a Wireless LAN dual band Low Noise Amplifier.
The amplifier comprises a single stage amplifier for the 2.45 Ghz band and a two-
stage amplifier to meet the requirements of the 4.9 to 5.95 Ghz band. The complete
circuitry, including a temperature stabilization block, fits on one die and needs no
external matching elements.
One of the challenges of Wireless LAN application designers is to maximize network
coverage and data throughput. The receiver system noise figure determines
sensitivity, network coverage and data throughput.
Applications
■
802.11a/b/g/n
Features
■
■
■
■
Input/output 50
W
matched internally
SiGe:C process
Shut down mode
Temperature stabilization
Benefits
The BGA700L16 uses a combination of Silicon Germanium Carbon epitaxy
proprietary process and a low ohmic on chip ground contact from Infineon
Technologies to deliver the word best-in class noise figure for wireless LAN systems.
The BGA700L16 ships as bare die or in a low profile Tiny Small Leadless Package
code-named TSLP-16. The package dimensions are 2.3 x 2.3 x 0.39 mm
3
.
TSLP-16 Package
2.3 x 2.3 x 0.39 mm
3
■
■
■
■
■
extended coverage
Ultra-low noise figure
Small form factor
high level of integration
Low cost
www.infineon.com/smallsignaldiscretes
Small Signal Discretes
Product Brief

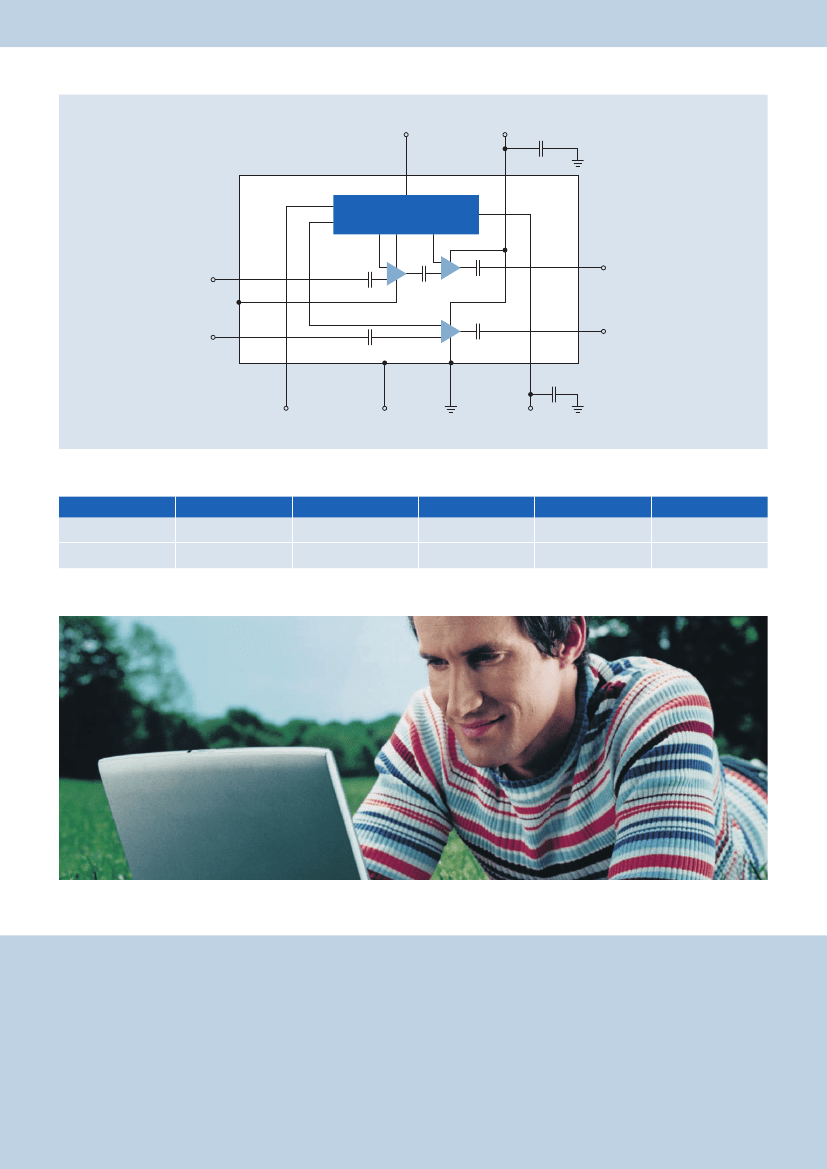

Application Circuit
LNA_ON_52
V
CC2
1 µF
15
Bandgap Reference and
Biasing Circuit
16
RF_IN_52
13
2
RF_OUT_52
RF_IN_24
9
7
0
6
1 µF
LNA_ON_24
Backside_GND
V
CC1
4
RF_OUT_24
Performance
Band [GHz]
2.4
5.6
Supply Voltage [V]
2.4 – 3.3
2.4 – 3.3
Supply Current [mA]
11
17
Gain [dB]
15
21
Noise Figure [dB]
0.9
1.3
Input P1dB [dB]
-10
-10
