W3016 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> W3016

Preview

W3016: Descriptionantenna cer monopole ism 868mhz; CategoryTopical application Wireless rf/communication; File Size119KB，1 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com; Environmental Compliance

Download Datasheet Parametric Compare View All

W3016 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	W3016	-	-	View	Buy Now

W3016 Overview

antenna cer monopole ism 868mhz

W3016 Parametric

Parameter Name	Attribute value
Datasheets
W3016
Product Photos
W3016
Product Training Modules
Surface Mount Antennas
Standard Package	1
Category	RF/IF and RFID
Family	RF Antennas
Packaging	Digi-Reel®
Antenna Type	Chi
Number of Bands	1
Frequency	844MHz ~ 904MHz
VSWR	-
Gai	-2.2dBi
Terminati	Surface Mou
Mounting Type	Surface Mou
Height (Max)	0.157" (4.00mm)
Dynamic Catalog	Pulse - Embedded
Other Names	553-1694-6

Preview

Download Datasheet

View All

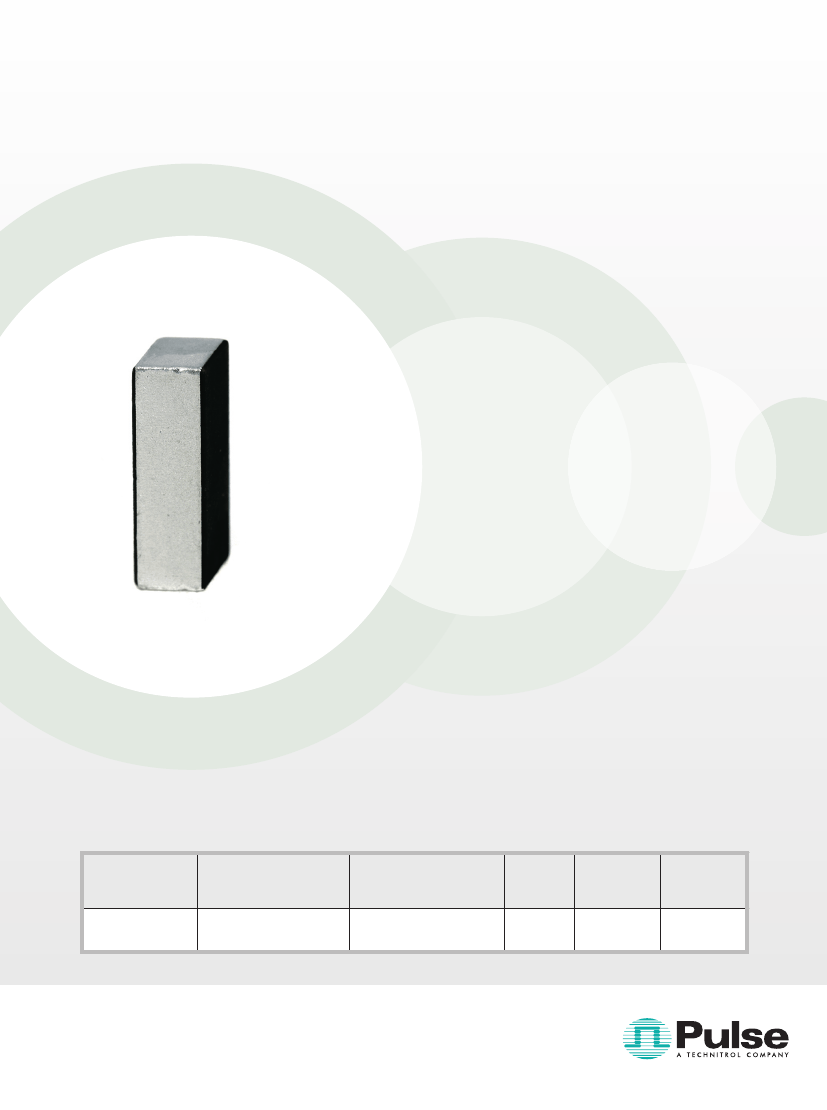

W3016 Datasheet version 1.0. 868MHz Monopole Antenna (11/08)

868MHz Ceramic Chip Antenna

Ground cleared under antenna, clearance area 11.50 mm x 7 mm. Pulse Part Number: W3016

Features

- Low profile

- Compact size W x L x H (10 x 3.2 x 4 mm)

- Low weight (600 mg)

- Lead free materials

- Fully SMD compatible

- Lead free soldering compatible

- Tape and reel packing

- RoHS Compliant Product

Applications

- 868MHz radios

Electrical specifications @ +25 °C

Note: Electrical characteristics depend on test board

(GP) size and antenna positioning on GP

and Ground Clearance area size.

W3016 868MHz

Typical performance (test board size 25 x 25 mm, PWB ground clearance area 11.50 x 7 mm) 6.8nH and 22nH series

inductors used for frequency tuning and 6.8nH shunt inductor used for impedance matching.

Frequency

Range

[MHz]

844 - 904

3D Max Gain

[dBi]

3D Efficiency

[%] / [dB]

24 / -6.1 (peak)

17 / -7.7 (band edges)

Return

loss min.

[dB]

-15

Impedance

[Ω]

Operating

Temperature

[°C]

-40 to +85

-2.2 (peak)

-4.2 (band edges)

50

Pulse Finland Oy

Takatie

6

90440

Kempele, Finland

Tel:

+358 207 935 500

Fax:

+358 207 935 501

www.pulseeng.com/antennas

W3016 Related Products

	W3016	W3016-K
Description	antenna cer monopole ism 868mhz	antenna chip ceramic 868mhz
Standard Package	1	1
Category	RF/IF and RFID	RF/IF and RFID
Family	RF Antennas	RF Antennas
Packaging	Digi-Reel®	Bulk
Antenna Type	Chi	Chi
Number of Bands	1	1
Frequency	844MHz ~ 904MHz	844MHz ~ 904MHz
Gai	-2.2dBi	-2.2dBi
Terminati	Surface Mou	Chi
Mounting Type	Surface Mou	Surface Mou
Height (Max)	0.157" (4.00mm)	0.157" (4.00mm)
