Datasheet> All Categories > The sensor> Sensor/transducer> DCXL20DS

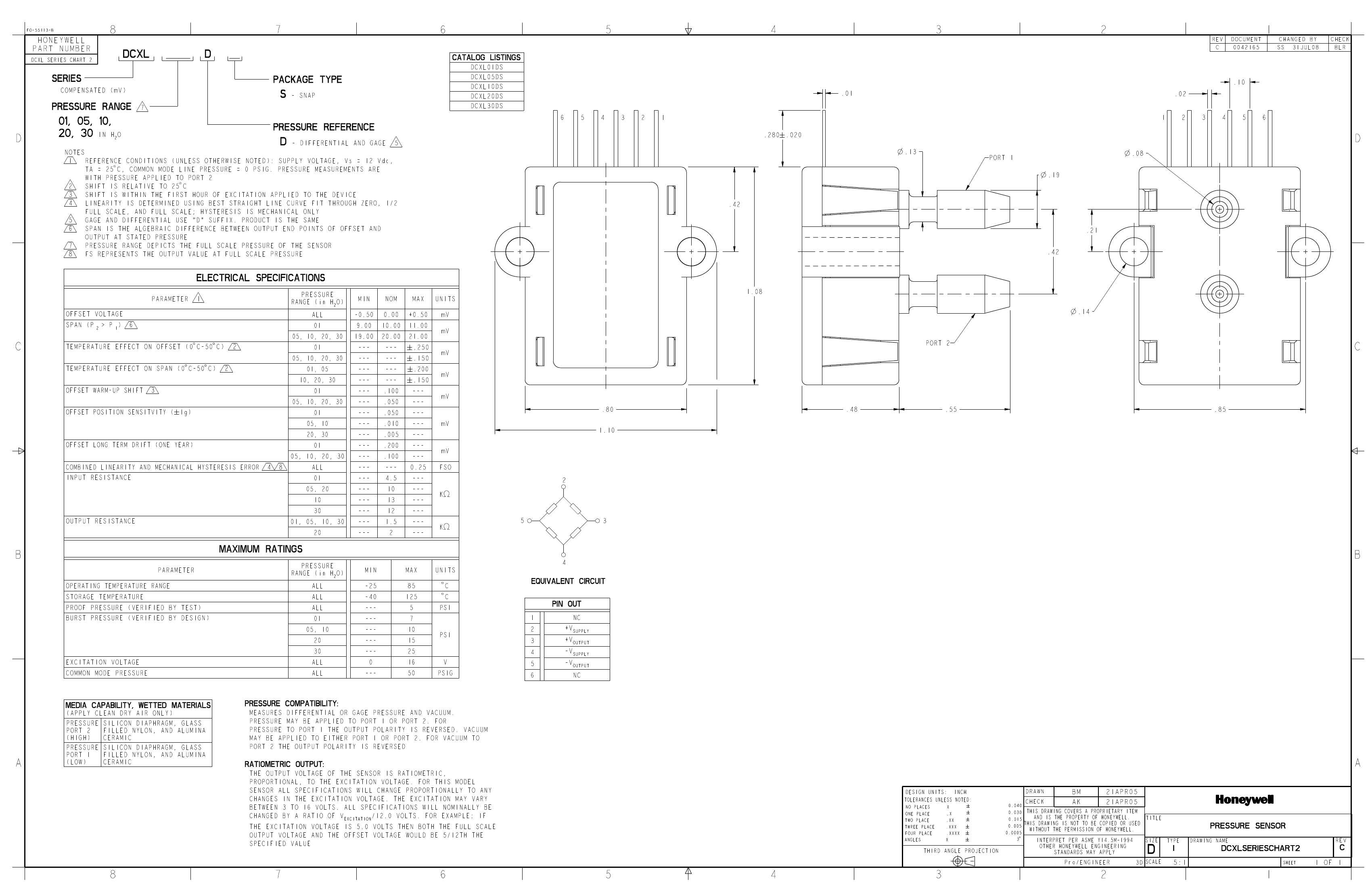

Preview

DCXL20DS: Descriptionsensor press diff 20" h2o 6sip; CategoryThe sensor Sensor/transducer; File Size164KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DCXL20DS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DCXL20DS	-	-	View	Buy Now

DCXL20DS Overview

sensor press diff 20" h2o 6sip

DCXL20DS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honeywell
Reach Compliance Code	unknow
Other features	SENSITIVITY IS 0.005 MILLI VOLT
body width	12.19 mm
body height	27.43 mm
Body length or diameter	21.59 mm
Installation features	THROUGH HOLE MOUNT
Nominal offset	0MV
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Output range	0-20mV
Output type	ANALOG VOLTAGE
Package Shape/Form	RECTANGULAR
port type	BARBED
Maximum pressure range	0.723 Psi
Minimum pressure range
Pressure sensing mode	DIFFERENTIAL
Sensor/Transducer Type	PRESSURE SENSOR,PIEZORESISTIVE
Maximum supply voltage	16 V
Minimum supply voltage
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

DCXL20DS Related Products

	DCXL20DS	DCXL10DS	DCXL01DS	DCXL05DS	DCXL30DS
Description	sensor press diff 20" h2o 6sip	sensor press diff 10" h2o 6sip	sensor pressure diff 1" h2o 6sip	sensor pressure diff 5" h2o 6sip	sensor press diff 30" h2o 6sip
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Honeywell	Honeywell	Honeywell	Honeywell	Honeywell
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown
Other features	SENSITIVITY IS 0.005 MILLI VOLT	SENSITIVITY IS 0.01 MILLI VOLT	SENSITIVITY IS 0.05 MILLI VOLT	SENSITIVITY IS 0.01 MILLI VOLT	SENSITIVITY IS 0.005 MILLI VOLT
body width	12.19 mm	12.19 mm	12.19 mm	12.19 mm	12.19 mm
body height	27.43 mm	27.43 mm	27.43 mm	27.43 mm	27.43 mm
Body length or diameter	21.59 mm	21.59 mm	21.59 mm	21.59 mm	21.59 mm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal offset	0MV	0MV	0MV	0MV	0MV
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Output range	0-20mV	0-20mV	0-10mV	0-20mV	0-20mV
Output type	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE
Package Shape/Form	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
port type	BARBED	BARBED	BARBED	BARBED	BARBED
Maximum pressure range	0.723 Psi	0.361 Psi	0.036 Psi	0.181 Psi	1.084 Psi
Pressure sensing mode	DIFFERENTIAL	DIFFERENTIAL	DIFFERENTIAL	DIFFERENTIAL	DIFFERENTIAL
Sensor/Transducer Type	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PEIZORESISTIVE
Maximum supply voltage	16 V	16 V	16 V	16 V	16 V
surface mount	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
