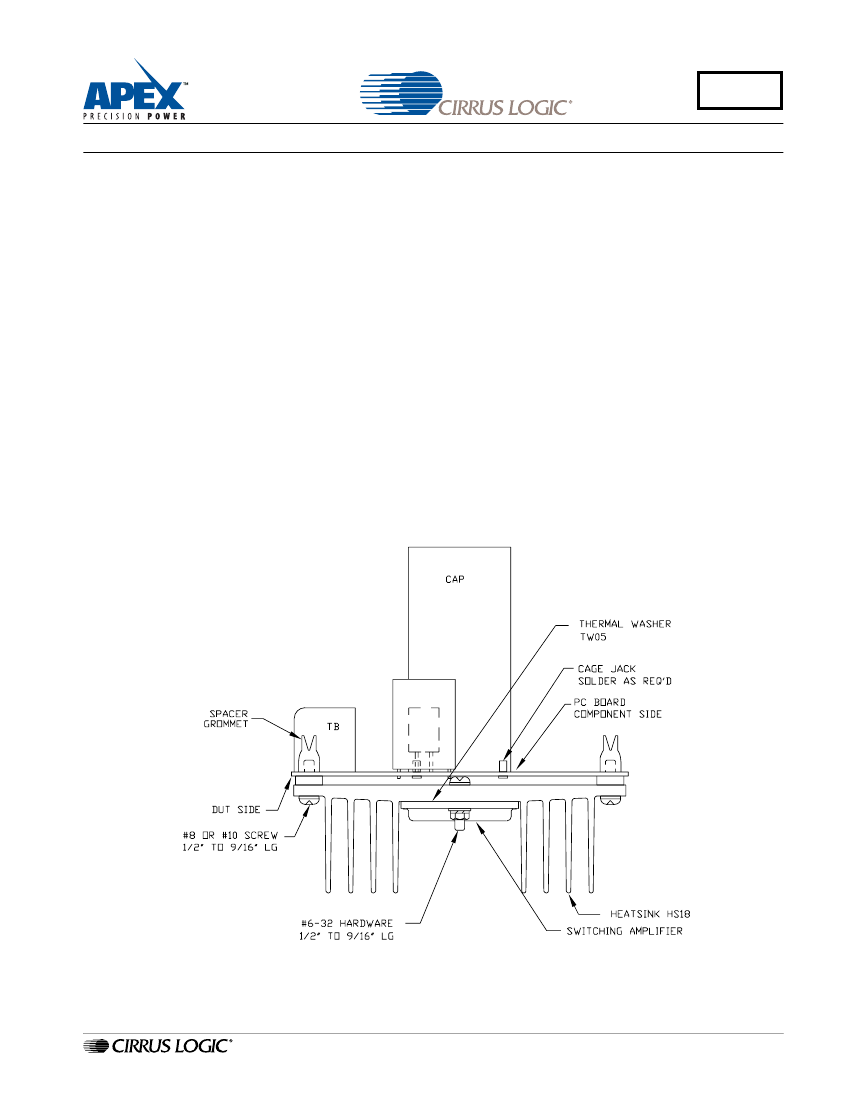

The schematic of Figure 4 can be used to verify the func-
tionality of your amplifier and help you gain a familiarity with
proper operation. At either A Out or B Out, with respect to
ground, you should observe a square wave approximately
30 V in amplitude with a fixed frequency and duty cycle that
varies from approximately 0 to 100% at a rate of 1 Hz. The
current limit is set to 10 amps.
FIGURE 4. FUNCTIONAL TEST CIRCUIT
50 OHM 25 WATT
DUMMY LOAD

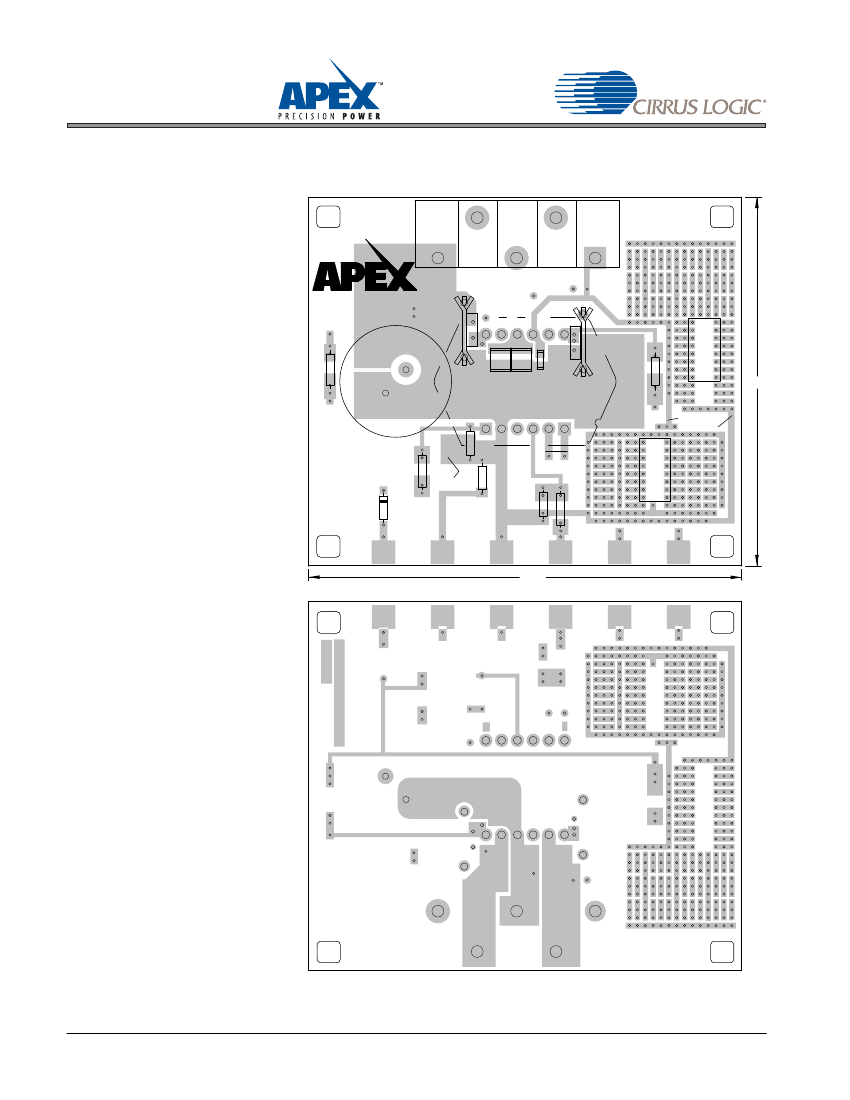

A block diagram of the SA12 is shown in Figure 3 along with pcb
connections of all the commonly used external components. Your
application circuit will not use all of the components. Add those
components required by your circuit. You may have to jumper
some components to make the desired electrical connections.
J1 is an optional way to connect the clock circuit. Power supply
bypassing is particularly important and that is why high quality
ceramic chip capacitors are supplied with the kit. In addition, a
large electrolytic capacitor is included.This capacitor was selected
expressly for this evaluation kit and may not be (and likely won't
be) suitable for your end application. You will need to select an
electrolytic capacitor based on your analysis of the capacitor's
ripple current, ripple current tolerance, operating temperature,
operating voltage, acceptable service life and acceptable supply
ripple. Note that the signal ground and power ground are sepa-
rated and tie together only at the ground pin (5). A breadboarding
area is supplied which can accomodate 1 or 2 IC amplifiers and
associated components. The large terminal pads can be used
to solder wire connections or bannana jacks.

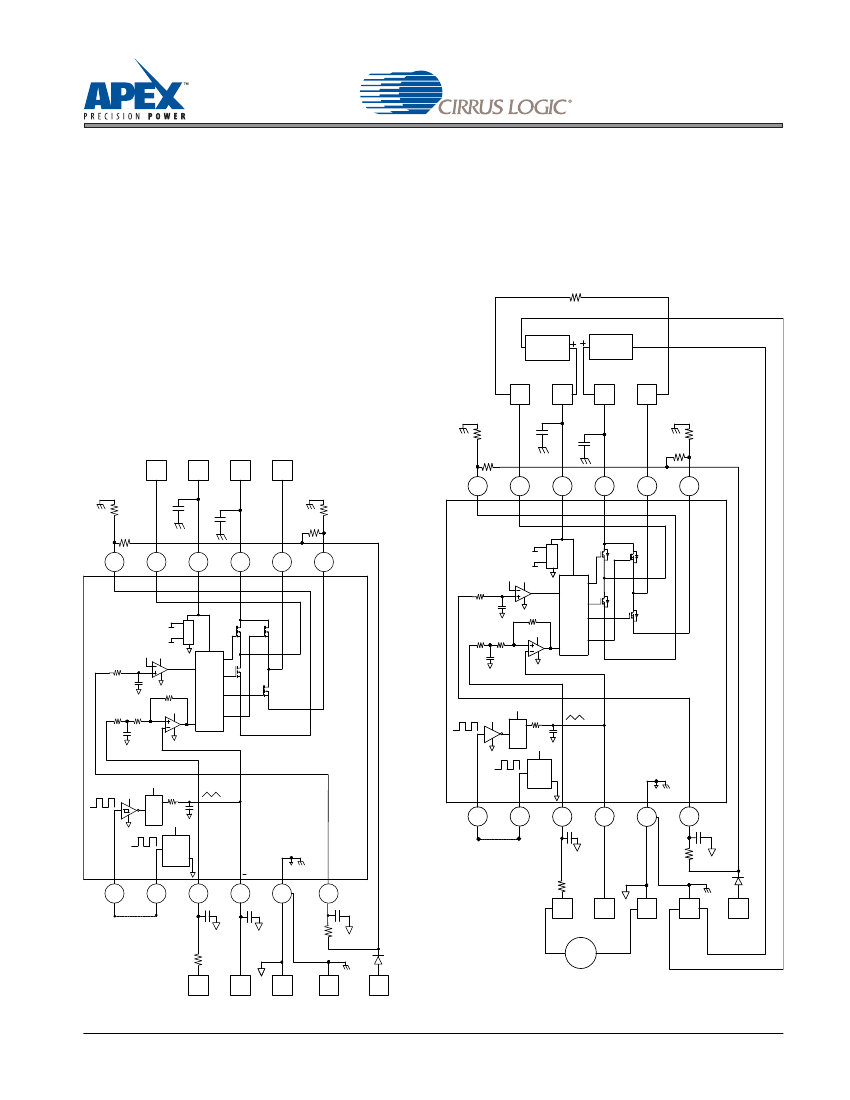

FIGURE 3. PCB SCHEMATIC.
A OUT
Vcc
+ Vs
B OUT
15V
200 mA
SUPPLY
A OUT
Vcc
30V HIGH
AMP
SUPPLY
+ Vs
B OUT
CVcc
1µF
Ra
.02 OHM
R2
5k
CVs1-3
Rb
.02 OHM
R1
5k
CVcc
Ra
R2
CVs1-3
R1
12
11
A OUT
10
Vcc
9
+ Vs
8
B OUT
7
I SENSE B
I SENSE A
12
11
A OUT
10
Vcc
9
+ Vs
8
B OUT
7
I SENSE B
.1V
1k
1000pf
5V
10V
H BRIDGE DRIVER
I SENSE A
10V
50k
910
.01µF
Vcc
5V
.1V
1k
1000pf
10V
10V
H
BRIDGE
DRIVER
50
50k
Vcc
SA12
10V
5V
TL
28.1k
f/2 100pF
5V
CLOCK
50
910
.01µF
SA12
10V
5V
28.1k
f/2 100pF
5V
CLK IN
CLK OUT
+ PWM
FLAG
GND
ILim/SHDN
1
J1
2
3
C1
.01µF
4
5
5K
6
C3
.1µF
CLOCK
CLK IN
CLK OUT
+ PWM
PWM
GND ILim/SHDN
1
J1
2
3
C1
4
C2
5
6
C3
R3
50
D1
+PWM
RAMP/-PWM
OR
FLAG
SIG
GND
PWR
GND
ILIM/SHDN
R4
D1
1 Hz SINE WAVE
+3/+7 V AMPLITUDE
VALLEY TO PEAK
+PWM
RAMP/-PWM
OR
FLAG
SIG
GND
PWR
GND
ILIM/SHDN
EK17U
3
EK17
