4. Mount the DUT to the HS20 by sliding under the head of the
#6 screw and on top of the thermal washer. Tighten the nut
to the specified 8 to 10 in-lbs. (.9 to .13 N*M). Do not over
torque.
5. Install leads of the DUT into the MS06 on the evaluation board.
Use #6 self-tapping screws to secure the evaluation board

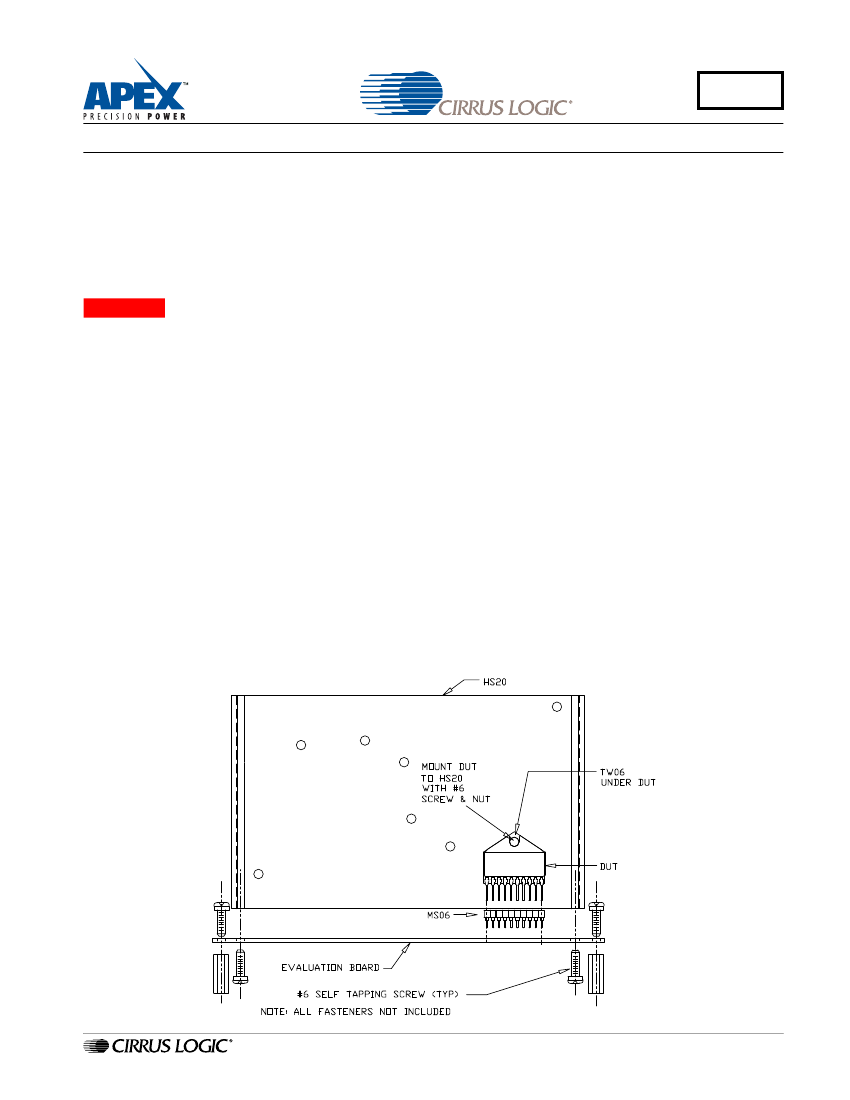

to the HS20 heat sink as shown in the assembly diagram
(Figure 1).

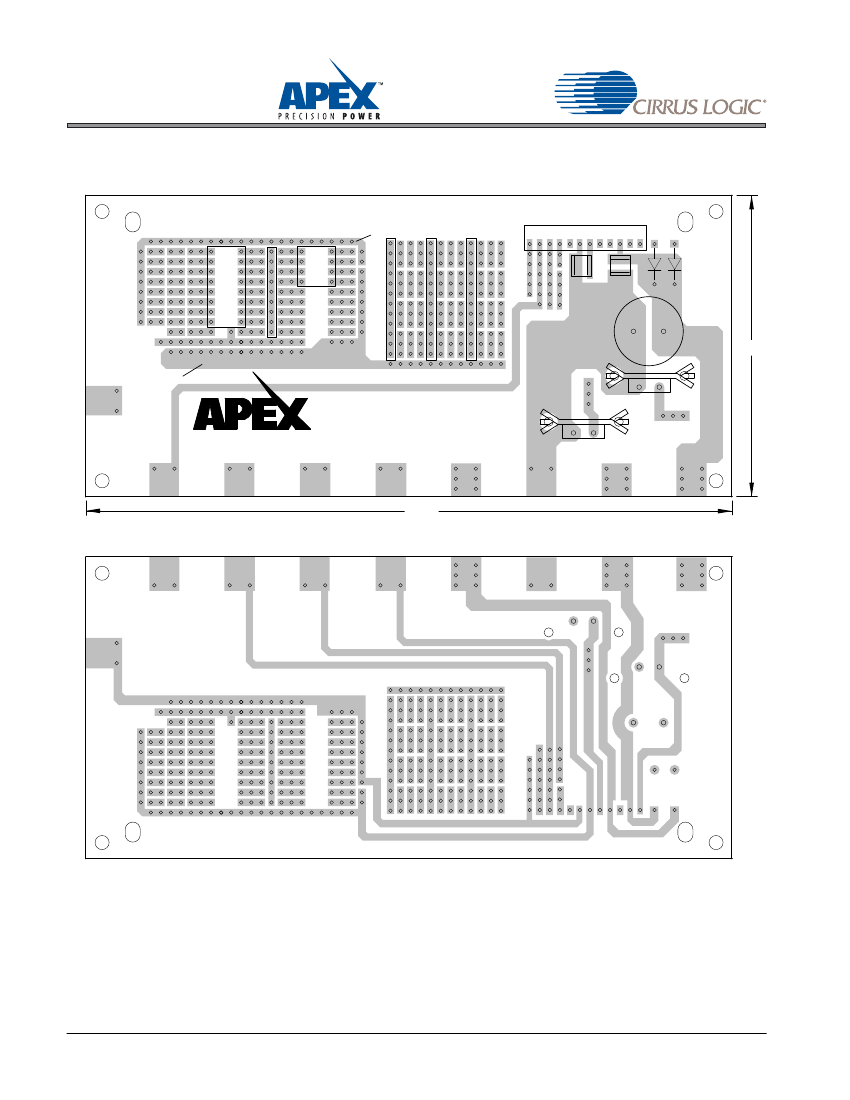

Evaluation Kit for SA60 Pin-Out
INTRODUCTION
Fast and easy breadborading of circuits using the SA60 are
possible with the EK06 evaluation kit. The amplifier may be
mounted vertically with the HS20 heat sink, or horizontally.
Connections are provided for required power supply bypassing
recommended protection components, as well as optional current
sense resistors. A large area for component mounting provides
flexibility and makes a multitude of circuit configurations possible.
CAUTION
ASSEMBLY
Use the supplied thermal washers or ther-
mal grease between the power amplifier
and the heat sink.
PARTS LIST
Part #
HS20
EVAL11
MS06
OX7R105KWN
CSR07
TWO7
HS22
Description
Heatsink
PC Board
Mating Socket
1µF Ceramic Capacitor
.1
Ω
1% Resistor
Thermal Washer
Heatsink
Quantity
1
1
1
2
2
1 package
2
1. On the silk screen side of the evaluation board, insert and
solder the MS06 mating socket in DUT holes 1 – 12. Be sure
each one is fully seated.
2. Solder components for your circuit. Be sure to include proper
bypassing. See the SA60 data sheet for help in selecting
these components. 1uF capacitors and a .10Ω resistor have
been included with the EK06 kit but may be replaced with
other components as necessary. C1, not provided, should
be selected for the voltage required by the application. See
Apex Precision Power Application Note 30 for guidelines in
selecting this bypass capacitor. If current sense resistors are
not used, the I SENSE traces on the EVAL11 board must be
shorted to power ground in place of the resistors.
3. Place the TW07 thermal washer on the heat sink over the
mounting hole for the DUT. Place a #6 screw through the
mounting hole and thread a #6 nut onto the screw at the back
of the heat sink. Do not tighten. Note that there are two sets
of mounting holes on the HS20). Holes on one edge allow
room between the DUT and evaluation board for the MS06
socket. The holes on the other edge are for direct through
hole mounting of the DUT to the evaluation board. It is rec-
ommended that you use the MS06.
FIGURE 1.
BEFORE YOU GET STARTED
• All Apex Precision Power amplifiers should be handled using
proper ESD precautions.
• Always use the heat sink and thermal washers included in
this kit.
• Always use adequate power supply bypassing.
• Do not change connections while the circuit is powered.
• Initially set all power supplies to the minimum operating levels
allowed in the device data sheet.
• Check for oscillations.
• Power ground and signal ground must be separated to avoid
switching noise in the DUT.
