Evaluation Kit for MP38CL and MP39CL
INTRODUCTION
This easy-to-use kit provides a platform for the evaluation
of linear power amplifiers circuits using the MP38CL-39CL
pin- out. With ample bread boarding areas it is flexible enough
to analyze a multitude of standard or proprietary circuit con-
figurations. Critical connections for power supply bypassing
are pre-wired. Components not usually readily available in
engineering labs are provided. External connection to the
evaluation kit can be made via the terminal block and terminal
pads at the edges of the circuit board. The terminal pads are
suitable for soldering standard banana jacks or direct wiring
of wires. Additionally, banana jacks and a BNC connector can
be inserted into the holes at the edge of the board and wired
to the numbered terminal pads.
BEFORE YOU GET STARTED
• All Apex Precision Power amplifiers should be handled using
proper ESD precautions.
• Do not change connections while the circuit is powered.
• Initially set all power supplies to the minimum operating
voltage allowed in the device data sheet.
PARTS LIST
Ref
NA
NA
NA
NA
NA
C1-4
TS1
C2,3
R
LIM
*
R
LIM
*
Apex Part #
HS28
HS18
MS11
EVAL59
60SPG00004
OX7R105KWN
TS02
EC03
CSR18
CSR19
Description/Vendor
Qty
Heat Sink
1
Heat Sink
1
Strip of 30 cage jacks
1
PC Board
1
Spacer Grommets/
4
Micro Plastics
1uF Cap/
4
Novacap
1825B105K201N
Terminal Strip
1
680uF 200V/
2
United Chemi-Con
KMH200VN681M25MX40T 2
0.050 Ohm Resistor/
1
Isotek PBV-R050-1
0.100 Ohm Resistor/
1
Isotek PBV-R100-1
ASSEMBLY
During assembly refer to Figure 1 and the data sheet for the
MP38CL & MP39CL.
1. Note that each side of the circuit board is identified as either
the "component side" or "DUT side".
2. Cut the MS11 into groups of 14 and 16 cage jacks and insert
from the "DUT side" of the board. On the "component side"
of the board, solder all cage jacks having solder pads (3,
5, 7-11, 21, 22, and 27 have no solder pads). Make sure
the cage jacks are fully seated before soldering. Be careful
that solder does not flow into the cage jacks. Remove the
unsoldered cage jacks with the carrier strip segments.
EK59U
http://www.cirrus.com
Copyright © Cirrus Logic, Inc. 2009
(All Rights Reserved)
MAY 2009
1
APEX
−
EK59UREVB
EK59

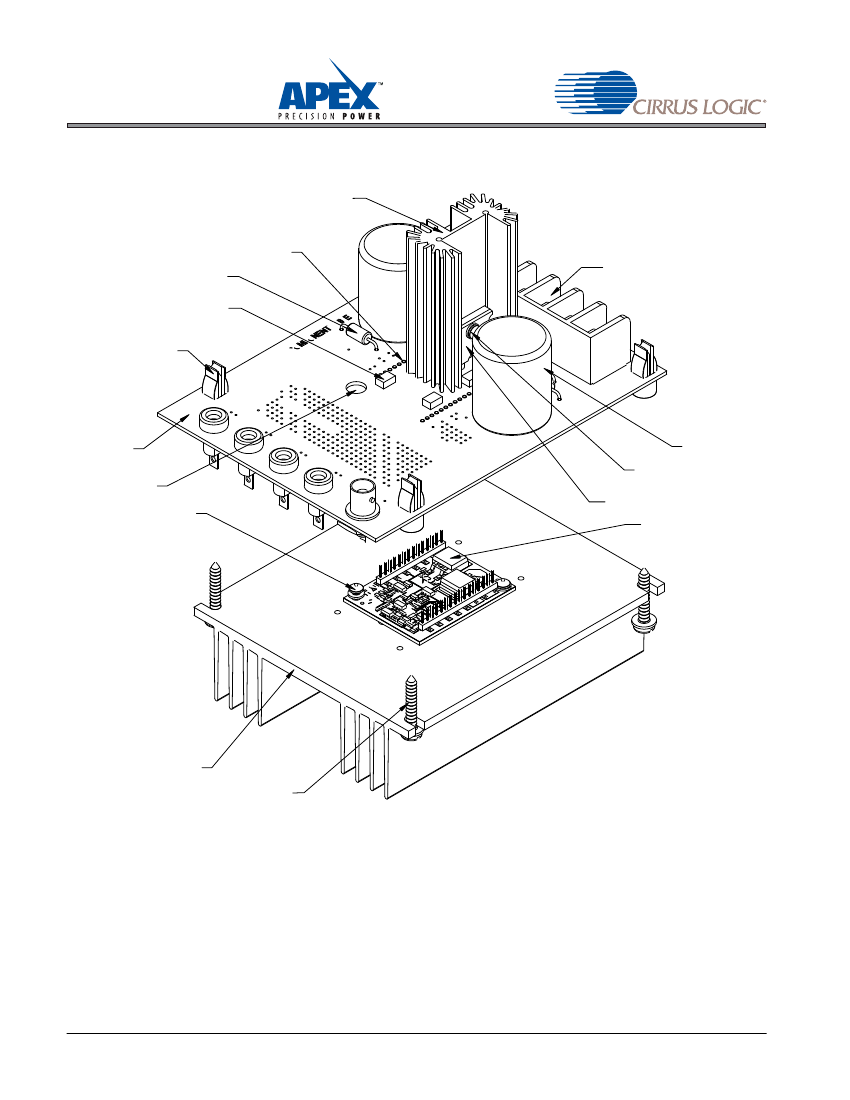

ASSEMBLY CONT.
P r o d u c t I n n o v a t i o nF r o m
used to mount the amplifier. In either case be sure the pins
of the amplifier are engaged with the cage jacks and then
continue pushing the PCB assembly in the area between
the amplifier’s pins until the four spacer grommets at the
four corners of the PCB touch the heatsink. At this point
the PCB should not be bowed.
16. Use #8 X 1" sheet metal screws (not provided) to mount
the PCB to the heat sink at the four spacer-grommets.

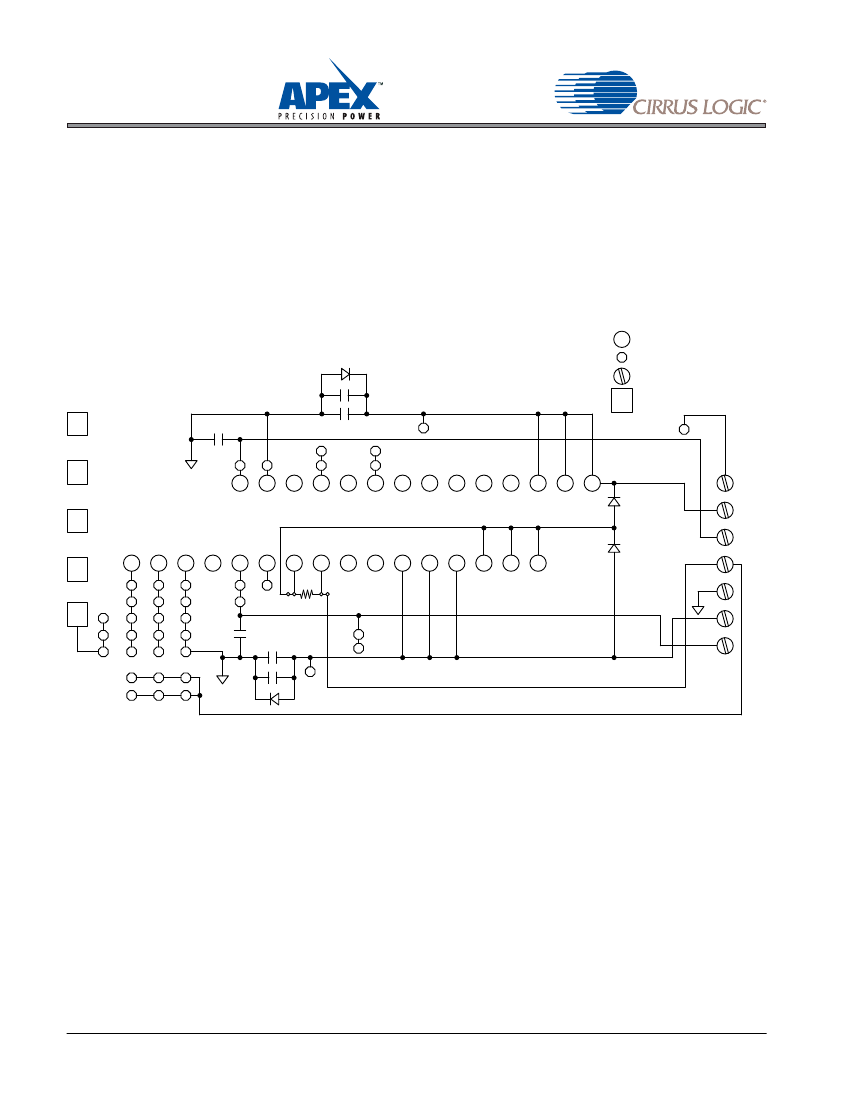

FIGURE 1: SCHEMATIC DIAGRAM
17. Inspect the assembly from the side and check that the PCB
is not bowed toward the heat sink. If the PCB is bowed use
a small tool to carefully pry the PCB away from the heat
sink until the PCB is flat.
18. Hook up power and signals as necessary. The amplifier
is now ready for testing.

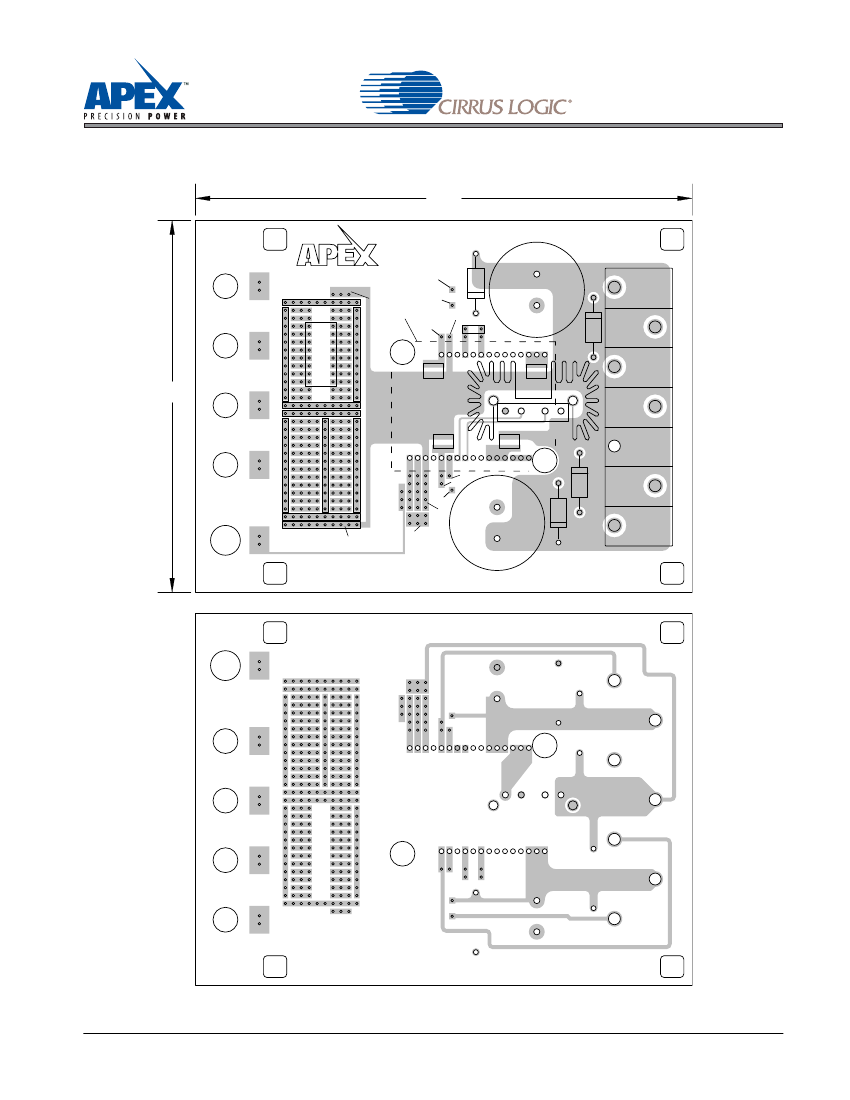

PCB AMPLIFIER TERMINALS
PCB WIRING TERMINALS
D4
C1
1
C5
C2
+
TERMINAL STRIP TERMINALS
ASSESSORY TERMINALS
2
TS1
2
1
+Vb GND
3
4
CC2
5
6
7
8
NC
9
NC
10
NC
CC1 NC
14
NC +Vs +Vs +Vs
11
12
13
SPARE
D1
+Vs
+Vb
-Vb
26
IQ +Ilim -Ilim
25 24 23
22
21
-Vs
20
-Vs -Vs
19 18
D2
17 16 15
OUT OUT OUT
OUT
GND
-Vs
-Vb
3
-IN
30
+IN GND NC
29 28 27
VIEW FROM PCB COMPONENT SIDE
4
5
C6
+
C3
C4
D3
R
LIM
2
