12mm Thumbwheel Potentiometers
RV121F-10-009J-XXX-00K
3.3
25
12.5
1.11

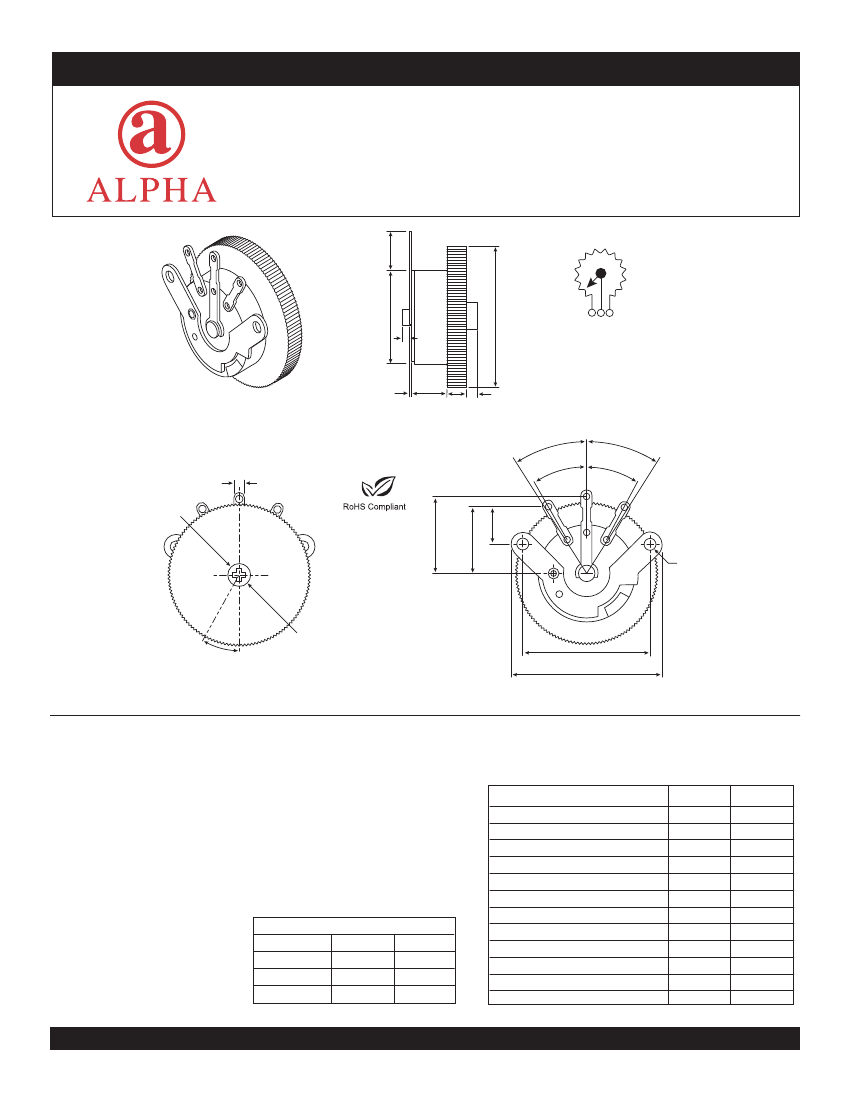

Circuit Diagram
123
.30
3.7
2.36
.89
Dimensions: mm
2.0
M1.7x.035mm
3.5mm Depth
4.0
8.4
7.1
31.3
25
31.3
25
2.0
3.5
25 10
16.0
18.0
Specifications:
•
Type: Thumbwheel w/ solder lugs
•
Rotation Angle: 230° ± 5˚
•
Rotation Torque: 20~200gf. cm
•
Rated Wattage: Linear-0.08
Audio-0.04
•
Max. Working Voltage: Linear-150
Audio-100
•
Stop Strength: >2Kgf. cm/min
•
Resistance Tolerance: ±20%
•
Rotations Life: 15,000 cycles
•
RoHS Compliant
Tol. Unless Otherwise Stated
Less Than
10
±0.3
Above
10-30
±0.5
Above
30~100
±1.0
Above
---
±5˚
XXX
RV121F-10-009J-A13-00K
RV121F-10-009J-A53-00K
RV121F-10-009J-A14-00K
RV121F-10-009J-A54-00K
RV121F-10-009J-A15-00K
RV121F-10-009J-A55-00K
RV121F-10-009J-B13-00K
RV121F-10-009J-B53-00K
RV121F-10-009J-B14-00K
RV121F-10-009J-B54-00K
RV121F-10-009J-B15-00K
RV121F-10-009J-B55-00K
Value
1K
5K
10K
50K
100K
500K
1K
5K
10K
50K
100K
500K
Taper
Audio
Audio
Audio
Audio
Audio
Audio
Linear
Linear
Linear
Linear
Linear
Linear
