103-0013 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 103-0013

103-0013: Descriptiontoggle switchtoggle dpdt; CategoryTopical application Mechanical and electrical/engineering/automation; File Size62KB，1 Pages; ManufacturerMountain Switch

Download Datasheet Parametric View All

103-0013 Overview

toggle switchtoggle dpdt

103-0013 Parametric

Parameter Name	Attribute value
Maker	Mountain Switch
Product Category	Toggle Switches
RoHS	no
Contact form	DPDT
switch function	ON - ON
Contact current rating	15 Amps at 125 Volts, 10 Amps at 250 Volts
Termination type	Solder Lug
Installation style	Panel
Terminal seal	Epoxy
Contact plating	Silve
Actuator	Lever, Standard
Voltage ratingAC	125 Volts

Preview

Download Datasheet

View All

Last Update:

4-13-05

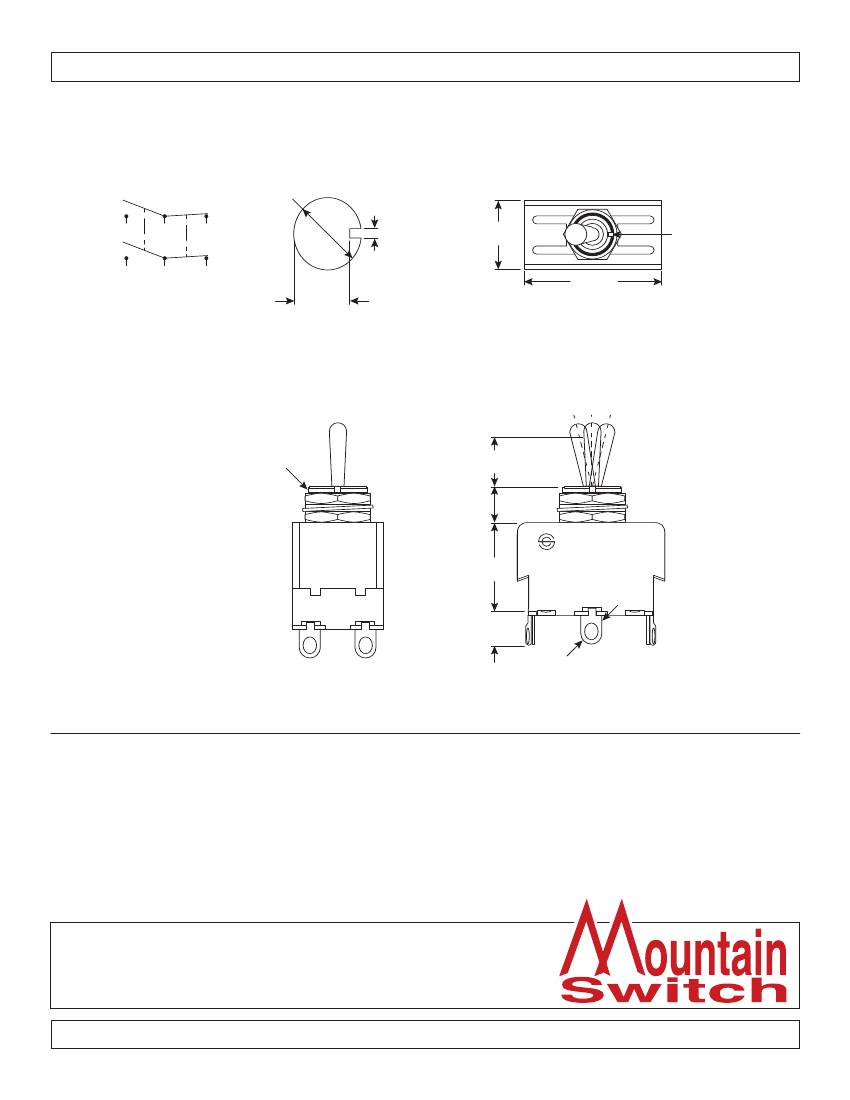

Dimensions: mm (IN)

Ref. #:

MS-100245

ø12.2 +0/-0.2

1.5±0.1

(.059±.004)

19.0±0.3

(.748±.012)

Keyway

11.0±0.1

(.433±.004)

33.2±0.3

(1.302±.012)

(1+2)

(4+5)

(2+3)

(5+6)

M12x0.75

12.7±0.5

(.50±.02)

9.0±0.3

(.354±.012)

19.0±0.5

(.748±.02)

15A 125VAC

10A 250VAC

6.5±0.5

(.256±.02)

ø3.0±0.2

(.118±.008)

Electrical Specifications:

•

Rating: 10A/250VAC; 15A/125VAC

•

Contact Resistance: 50m

Ω

Max.

•

Insulation Resistance: 500VDC 100M

Ω

Min.

•

Dielectric Strength: 1500VAC 1 minute

Mechanical Specifications:

•

Circuit: 6P DPDT on-on

Toggle Switch

103-0013

Available from Mouser Electronics

www.mouser.com

1-800-346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
