Last Update:
4-21-05

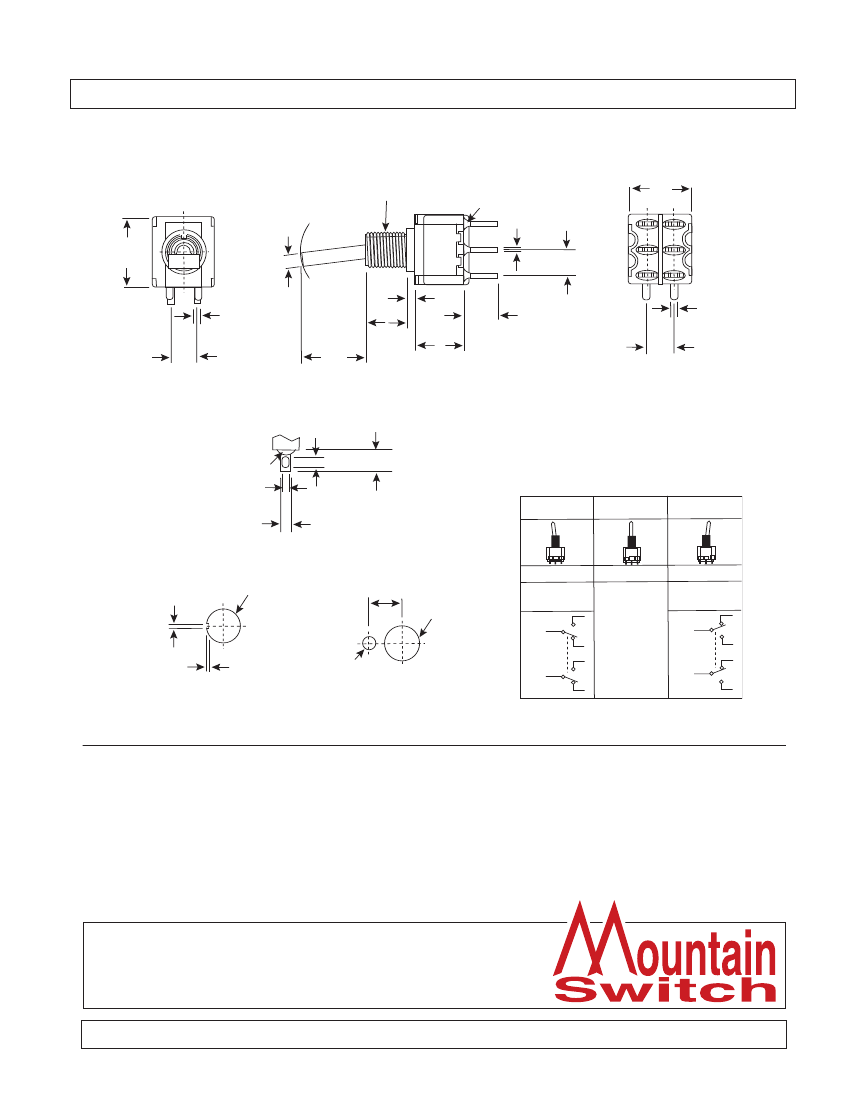

Dimensions: mm (In)
Ref. #:
MS-200270
1/4-40 UNS-2A
EPOXY SEAL
ø2.54
(ø.10)
12.7
(.50)
1.44
(.057)
1.27
(.05)
11.43
(.45)
6.35
(.25)
8.89
(.35)
4.70
(.185)
.76 (.03)
11.43
(.45)
1.22
(.048)
5.08
(.20)
7.55
(.279)
4.83 (.19)
1.90
(.078)
EPOXY SEAL
1.19
(.047)
2.03
(.08)
3.96
(.156)
SWITCH FUNCTION
SOLDER LUG
POS.1
POS.2
POS.3
PANEL MOUNTING
ø6.35 (ø.25)
6.10 (.24)
ø6.35 (ø.25)
ON
2-3,5-6
1
2 Comm.
NONE
ON
2-1,5-4
1
2 Comm.
3
OPEN
5 Comm.
3
.85 (.033)
.55 (.022)
Without locking ring.
ø2.38 (ø.094)
5 Comm.
4
6
6
4
With standard locking ring.
Electrical Specifications:
•
Electrical Life: 40,000 make-and-break cycles at full load
•
Contact Resistance: 10mΩ max. initial @ 2-4VDC 100mA
•
Insulation Resistance: 1,000MΩ min.
•
Dielectric Strength: 1,000 V RMS@ sea level.
•
Rating: 2A/250 VAC, 5A/120VAC or 28VDC
Mechanical Specifications:
•
Operating Temperature: -30°C to +85°C
Materials:
•
Case: Diallyl phthalate (DAP) (UL94v-0)
•
Acutuator: Brass, chrome plated.
•
Bushing: Brass, nickel plated.
•
Housing: Stainless steel.
•
Terminal/Contact: Silver or Gold plated.
•
Switch Support: Brass, Tin plated.
Toggle Switch
108-1MD1T6B11M1QE
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
