Last Update:
4-21-05

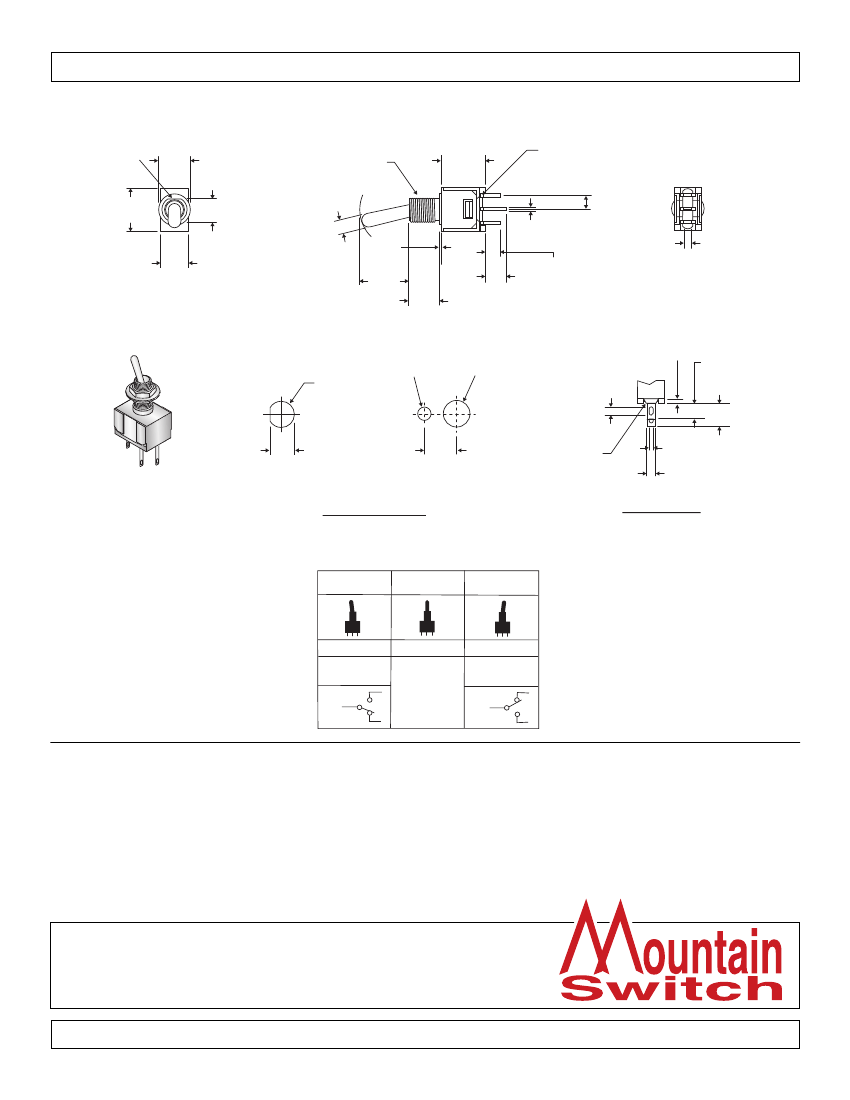

Dimensions: mm (In.)
ø6
(ø.236)
10-48 UNS
ø2.54
(ø.10)
Epoxy
Seal
Ref. #:
MS-100517
Flat
8.30
(.327)
3
2
1
8.13
(.32)
4.40
(.173)
5.08
(.20)
.51
(.02)
9.40
(.37)
5.59
(.22)
4.06
(.16)
.51
(.02)
2.80
(.11)
2.54
(.10)
1.52
(.06)
3
2
1
ø4.95
(ø.195)
ø2.38
(ø.094)
ø4.95
(.195)
1
(.04)
1.52
(.06)
2.80
(.11)
4.55
(.179)
Without locking ring.
6.10
(.24)
With standard locking ring.
Epoxy
Seal
1.52
(.06)
0.76
(.03)
4.06
(.16)
PANEL MOUNTING
SOLDER LUG
POS.1
POS.2
POS.3
ON
2-3
1
2 Comm.
3
NONE
ON
2-1
OPEN
2 Comm.
1
3
Electrical Specifications:
•
Electrical Life: 30,000 make-and-break cycles at full load
•
Contact Resistance: 20mΩ max. initial @ 2-4VDC 100mA
•
Insulation Resistance: 1,000MΩ min.
•
Dielectric Strength: 1,000 V RMS@ sea level.
•
Rating:
1A / 250 VAC
3A / 120 VAC or 28 VDC
Materials:
•
Case: Diallyl phthalate (DAP) (UL94v-0)
•
Acutuator: Brass, chrome plated.
•
Bushing: Brass, nickel plated.
•
Housing: Stainless steel.
•
Switch Support: Brass, tin plated.
•
Terminal/Contact: Brass, silver plated.
Mechanical Specifications:
•
Operating Temperature: -30° C to +85° C
Toggle Switch
108-2MS1T1B1M1QE
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
