Last Update:
4-22-05

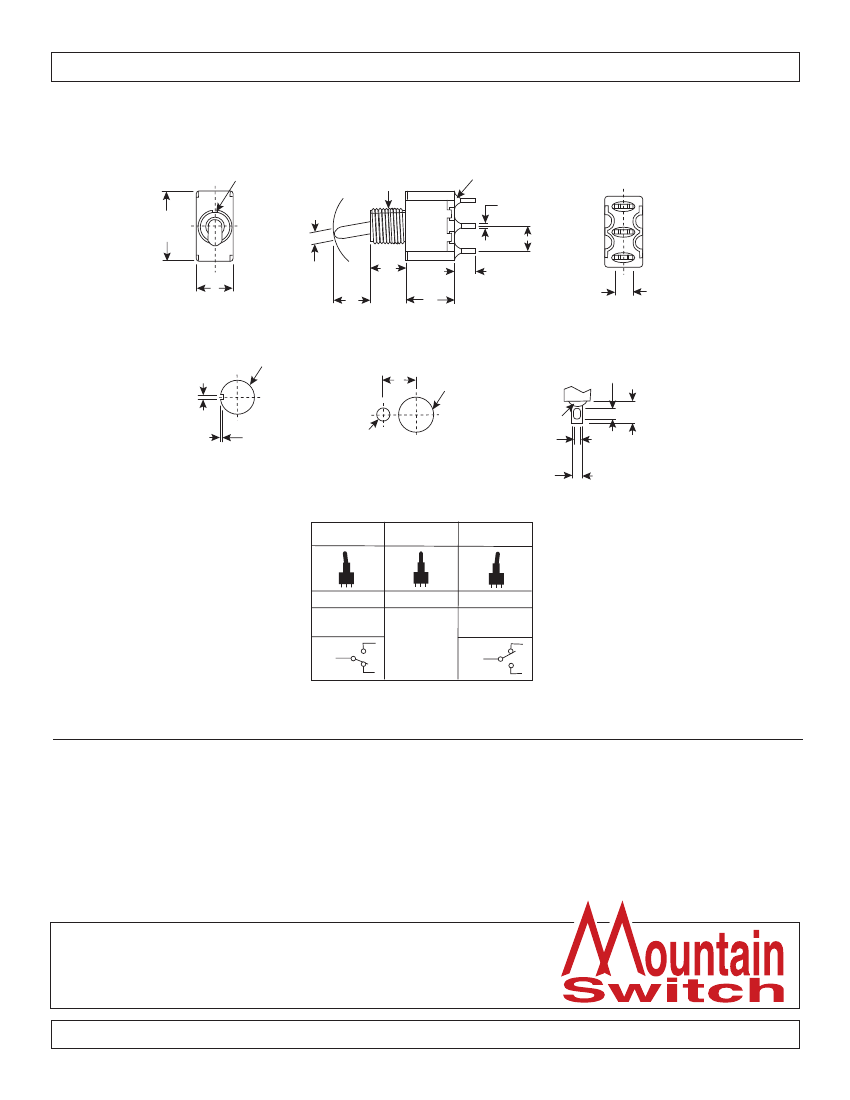

Dimensions: mm (In.)
Ref. #:
MS-100307
KEYWAY
1/4-40
UNS-2A
EPOXY
SEAL
.76
(.03)
4.70
(.185)
3
2
1
12.7
(.50)
ø2.92
(ø.115)
6.86
(.27)
ø6.35
(ø.25)
.85
(.033)
.55
(.022)
Without locking ring.
ø2.38
(ø.094)
With standard locking ring.
6.86
(.27)
6.10
(.24)
7.11
(.28)
8.89
(.35)
3.94
(.155)
2.03
(.08)
ø6.35
(ø.25)
EPOXY SEAL
1.19
(.047)
1.90
(.078)
3.96
(.156)
SOLDER LUG
2.03
(.08)
PANEL MOUNTING
POS.1
POS.2
POS.3
ON
2-3
1
2 Comm.
3
OFF
ON
2-1
OPEN
2 Comm.
1
3
SWITCH FUNCTION
Mechanical Specifications:
•
Operating Temperature: -30° C to +85° C.
Mechanical Specifications:
•
Electrical Life: 40,000 make-and-break cycles at full load
•
Contact Resistance: 10mΩ max. initial @ 2-4VDC 100mA
•
Insulation Resistance: 1,000MΩ min.
•
Rating: 2A/250VAC, 5A/120VAC or 28 VDC
•
Dielectric Strength: 1,000 V RMS@ sea level.
Materials:
•
Case: Diallyl phthalate (DAP) (UL94v-0)
•
Acutuator: Brass, chrome plated.
•
Bushing: Brass, nickel plated.
•
Housing: Stainless steel.
•
Terminal/Contact: Silver or Gold plated.
Toggle Switch
108-1MS3T2B3M1QE
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
