Last Update:
4-21-05

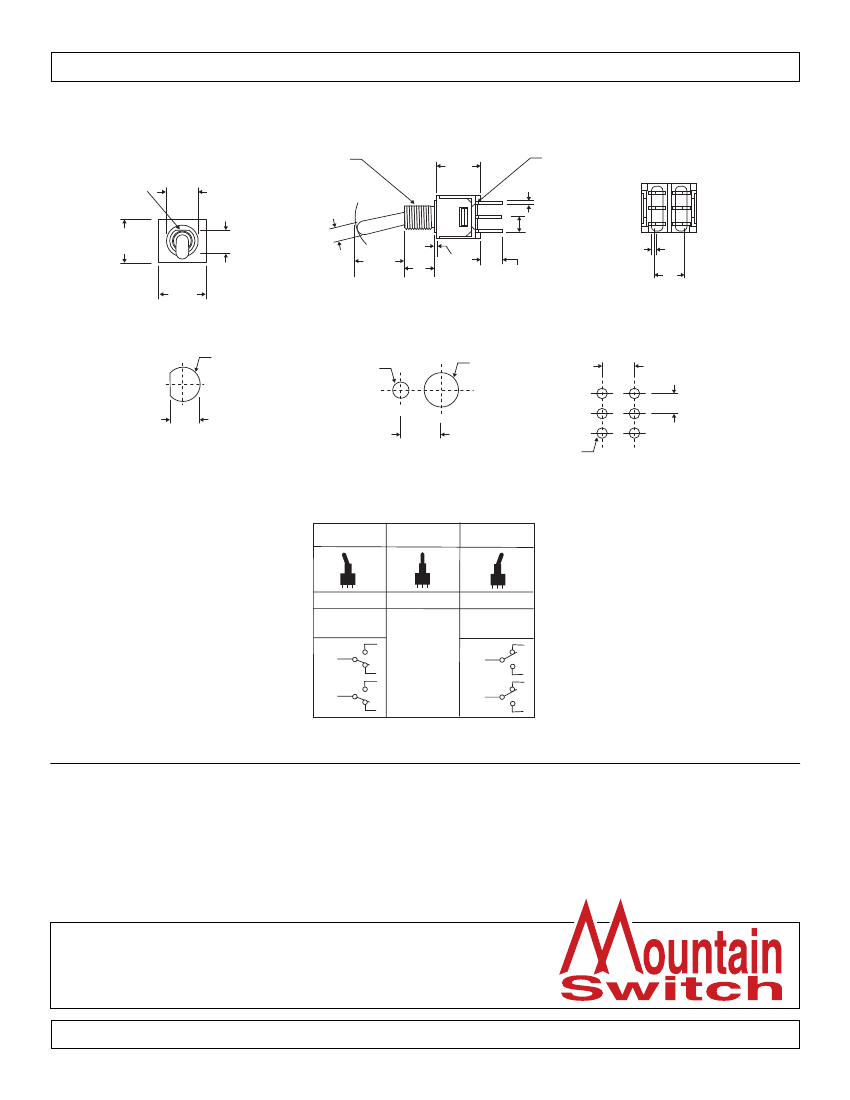

Dimensions: mm (In.)
Ref. #:
MS-100523
10-48 UNS
ø6
(ø.236)
Flat
8.30
(.327)
6
5
4
9.40
(.37)
.51
(.02)
3.30
(.13)
.51
(.02)
Epoxy
Seal
6
5
4
.76
(.03)
5.08
(.20)
3
2
1
8.13
(.32)
9.14
(.36)
4.40
(.173)
ø2.54
(ø.10)
2.54
(.10)
5.59
(.22)
ø4.95
(ø1.95)
ø2.38
(ø.094)
ø4.95
(ø1.95)
5.08
(.20)
4.55
(.179)
Without locking ring.
6.10
(.24)
With standard locking ring.
ø1.09
(ø.043)
2.54
(.10)
PANEL MOUNTING
P.C. MOUNTING
POS.1
POS.2
POS.3
ON
2-3, 5-6
1
2 Comm.
NONE
ON
2-1, 5-4
1
OPEN
3
4
2 Comm.
3
4
5 Comm.
6
5 Comm.
6
Electrical Specifications:
•
Electrical Life: 30,000 make-and-break cycles at full load
•
Contact Resistance: 20mΩ max. initial @ 2-4VDC 100mA
•
Insulation Resistance: 1,000MΩ min.
•
Dielectric Strength: 1,000 V RMS@ sea level.
•
Rating: 1A / 250 VAC; 3A / 120 VAC or 28 VDC
Mechanical Specifications:
•
Operating Temperature: -30° C to +85° C
Materials:
•
Case: Diallyl phthalate (DAP) (UL94v-0)
•
Acutuator: Brass, chrome plated.
•
Bushing: Brass, nickel plated.
•
Housing: Stainless steel.
•
Switch Support: Brass, tin plated.
•
Terminal/Contact: Brass, silver plated.
Toggle Switch
108-2MD1T1B1M2QE
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
