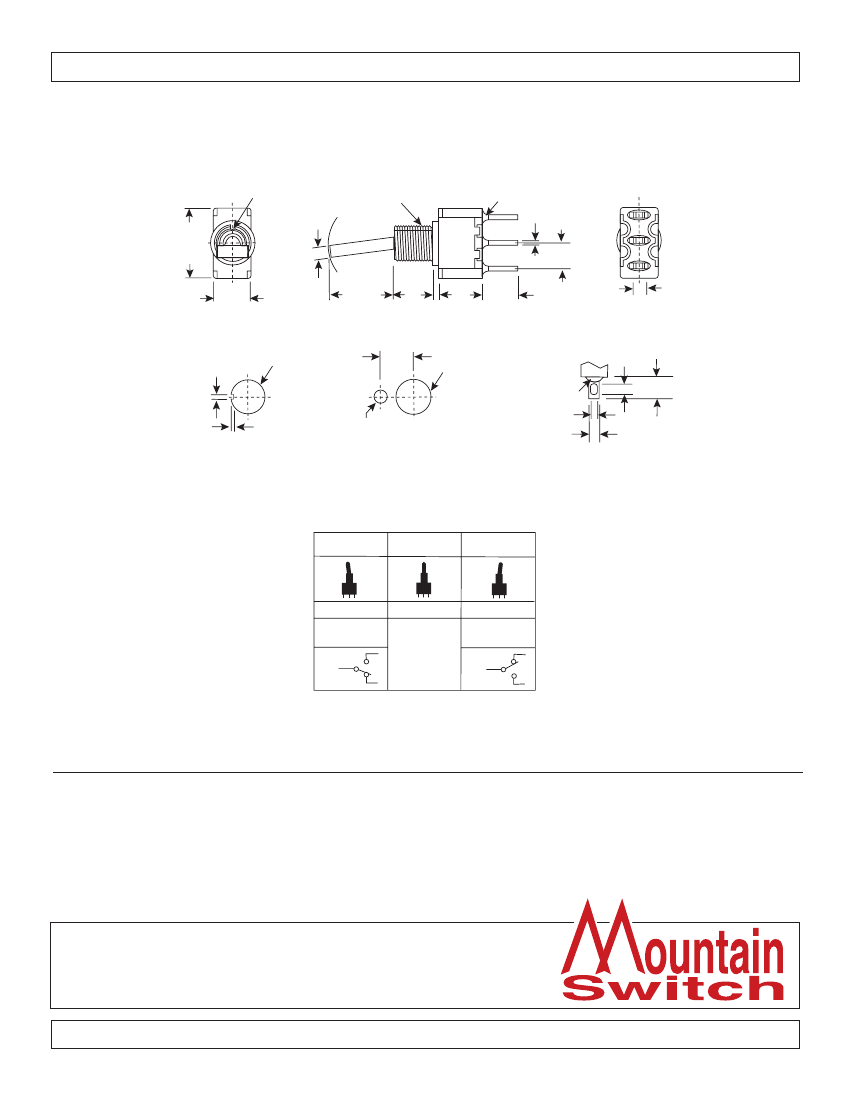

Last Update:
8-02-05
Dimensions: mm (In.)
Ref. #:
MS-100303
Keyway
ø2.54
(ø.10)
12.7
(.50)
1/4-40 UNS-2A
Epoxy Seal
.76 (.03)
4.7
(.185)
8.89
(.35)
6.35
(.25)
3
2
1
6.86
(.27)
11.43
(.45)
7.55
(.279)
1.44
(.057)
6.1
(.24)
2.03 (.08)
ø6.35 (ø.25)
.85
(.033)
.55 (.022)
Without locking ring.
ø6.35
(ø.25)
Epoxy Seal
1.19
(.047)
1.9
(.078)
3.96
(.156)
ø2.38 (ø.094)
With standard locking ring.
2.03 (.08)
PANEL MOUNTING
SOLDER LUG
POS.1
POS.2
POS.3
ON
2-3
1
2 Comm.
3
NONE
ON
2-1
OPEN
2 Comm.
1
3
SWITCH FUNCTION
Mechanical Specifications:
•
Operating Temperature: -30°C to +85°C
Electrical Specifications:
•
Electrical Life: 40,000 make-and-break cycles at full load
•
Contact Resistance: 10mΩ max. initial @ 2-4VDC 100mA
•
Insulation Resistance: 1,000MΩ min.
•
Rating: 2A/ 250VAC, 5A/ 120VAC or 28VDC
•
Dielectric Strength: 1,000 V RMS@ sea level
Materials:
•
Case: Diallyl phthalate (DAP) (UL94V-0)
•
Acutuator: Brass, chrome plated.
•
Bushing: Brass, nickel plated.
•
Housing: Stainless steel.
•
Terminal/Contact: Silver or Gold plated.
Toggle Switch
108-1MS2T6B11M1QE
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
