Last Update:
8-19-05

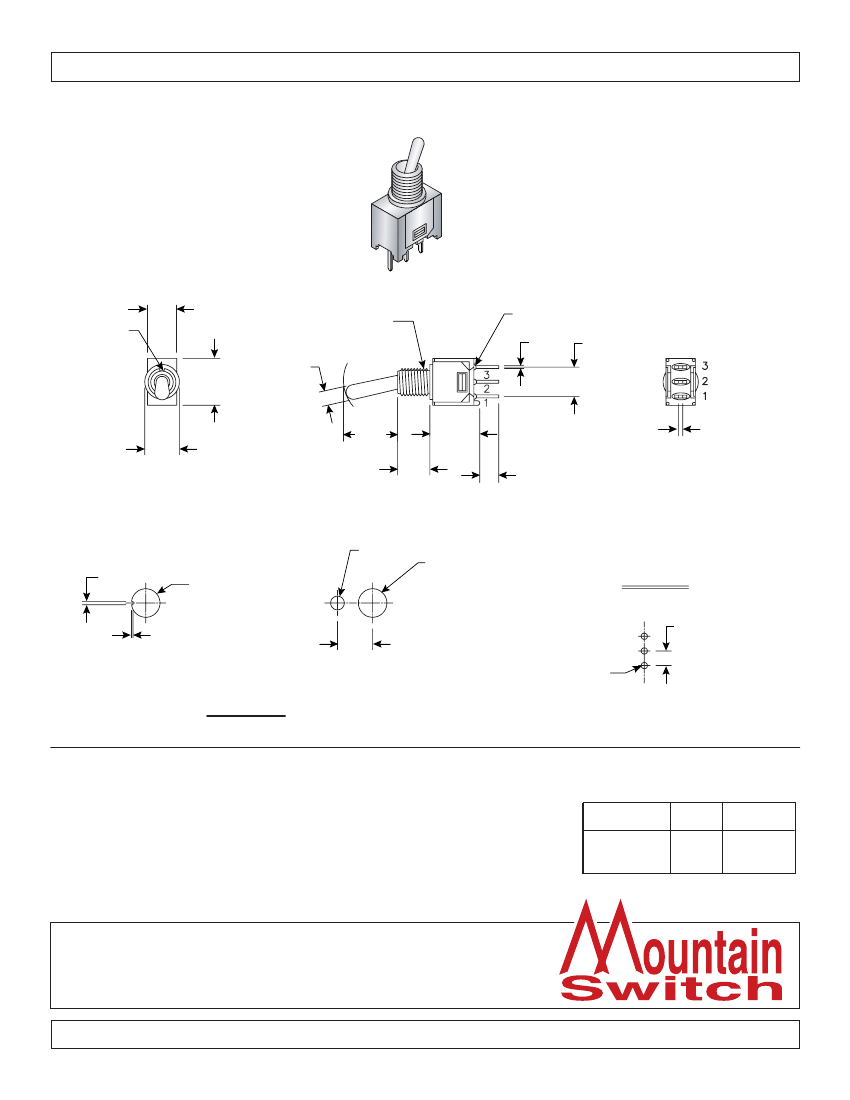

Dimensions: mm (In.)
Ref. #:
MS-100463
(ø.20)
ø5.08
Keyway
(ø.10)
ø2.54
10-48 UNS-2A
Epoxy seal
(.02)
.51
(.20)
5.08
(.32)
8.13
(ø.236)
ø6
(.37)
9.40
(.22)
5.59
(.34)
8.64
(.13)
3.30
(.03)
.76
(.023)
.58
(ø.094)
ø2.38
(ø.195)
ø4.95
(.01)
.25
(ø.195)
ø4.95
P.C. Mounting
(.24)
6.10
With standard locking ring
Panel Mounting
(ø.043)
ø1.09
(.10)
2.54
Without locking ring
Mechanical Specifications:
•
Mechanical Life: 30,000 make-and-break cycles
•
Operating Temperature: -30°C to 85°C
Electrical Specifications:
•
Rating: 1A / 250VAC, 3A / 120 VAC or 28 VDC
•
Contact Resistance: 20mΩ max. initial @ 2-4VDC 100mA
•
Insulation Resistance: 1,000MΩ min.
•
Dieletric Strength: 1,000 V RMS@sea level
Materials:
•
Case: Diallyl phthalate (DAP)(UL94V-0)
•
Actuator: Brass, chrome plated
•
Bushing: Brass, nickel plated
•
Housing: Stainless Steel
•
Switch Support: Brass, tin plated
•
Terminals/Contact: Brass, with silver or
gold plated
Mountain Switch
Part No.
20126SPST41
20126SPDT42
20126SPDT44
Type
SPST
SPDT
SPDT
Circuit
Off-On
On-On
On-Off-On
Sub-Miniature Toggle Switches
20126SPST41, 20126SPDT42, 20126SPDT44
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
