REVISION W
((No OF POS x .1000 [2.540])
+ .0200[.508]) .010[.25]
(No OF POS -1) x .1000 [2.540]
.060 1.52
SEE NOTE 8
02
IPT1-1XX-XX-XX-D-VS-XX-XX
No OF POS PER ROW
-02 THRU -25
W
OPTION
-K: POLYIMIDE FILM PAD
[AVAILABLE ON POSITIONS -03 THRU
-25 ONLY]
-TR: TAPE AND REEL
DO NOT
SCALE FROM
THIS PRINT
LEAD STYLE
-01
PLATING SPECIFICATION
-S: SELECTIVE, 30 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
-SM: SELECTIVE, 30 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
MATTE TIN ON TAIL
.200 5.08
C
REF
L
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
W
OPTION
-A: ALIGNMENT PIN (USE SM-A11) [4 POS MIN]
-LC: LOCKING CLIP (USE LC-07-TM) [4 POS MIN]
(SEE NOTE 10)
-FL: FRICTION LOCK [POS -05 THRU -25]
(USE IPT1-XX-D-FL-X & T-1S64-05-X)
-PL: POSITION #1 REMOVED
(USE IPT1-XX-D-P)
(SEE NOTE 12)
.100 2.54 REF
01
TAIL OPTION
-VS: VERTICAL SURFACE MOUNT
ROW SPECIFICATION
-D: DOUBLE (USE IPT1-XX-D)
(SEE NOTE 11)
.025 0.64 SQ REF
2 MAX SWAY
(TYP)
T-1S6-25-X-2
"A"
IPT1-XX-D
C2
90°
- 0°
.155 3.94 REF
(SEE NOTE 6)
C1
+5°
.250 6.35
REF
SEE TABLE 1
"A"
2 MAX SWAY
(TYP)
.050±.010 1.27±0.25
.290 7.37 MAX
SECTION "A"-"A"
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM ALLOWABLE CUT FLASH: .010[.25].
3. MINIMUM TERMINALT PUSH OUT FORCE: 2 lbs.
4. MAXIMUM VARIATION BETWEEN PIN ROWS: .005[.13].
5. "END WALLS" AFTER CUTTING SHOULD BE .010+/-.003[.25+/-.08].
6. PINS TO BE FLUSH TO .008 [.20] MAXIMUM RECESSED IN BODY.
7. ALL DIMENSIONS TO BE ABOUT CENTERLINE WITHIN +/-.005[.13].
8. PRESENCE OF VOIDS IS OPTIONAL AND PATTERN TO WHICH THEY
OCCUR IS VARIABLE.
9. NOTE DELETED.
10. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS
MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.
11.
STANDARD BODIES CAN BE CUT TO POSITION. FOR -LC, -FL & -PL
OPTIONS, BODIES MUST BE MOLDED TO POSITION.
12. FOR EXISTING CUSTOMERS ONLY, -POL CAN BE SUBSTITUED FOR -PL.
-TR: TAPE & REEL PACKAGING OPTION
POS 1 (TOWARD
ROUND HOLE)
PACKAGING VIEW
[-02 POSITION TO BE
BULK PACKAGED]
IN-PROCESS
.368 9.35 REF
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
DECIMALS
ANGLES
W
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
USER DIRECTION OF UN-REELING
POCKET NOT DETAILED
TUBE: PT-1-24-01-103
PLUG: TP-09
.118
±.003
3.00
±0.08
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2.25:1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE, 510, 3/4 HARD

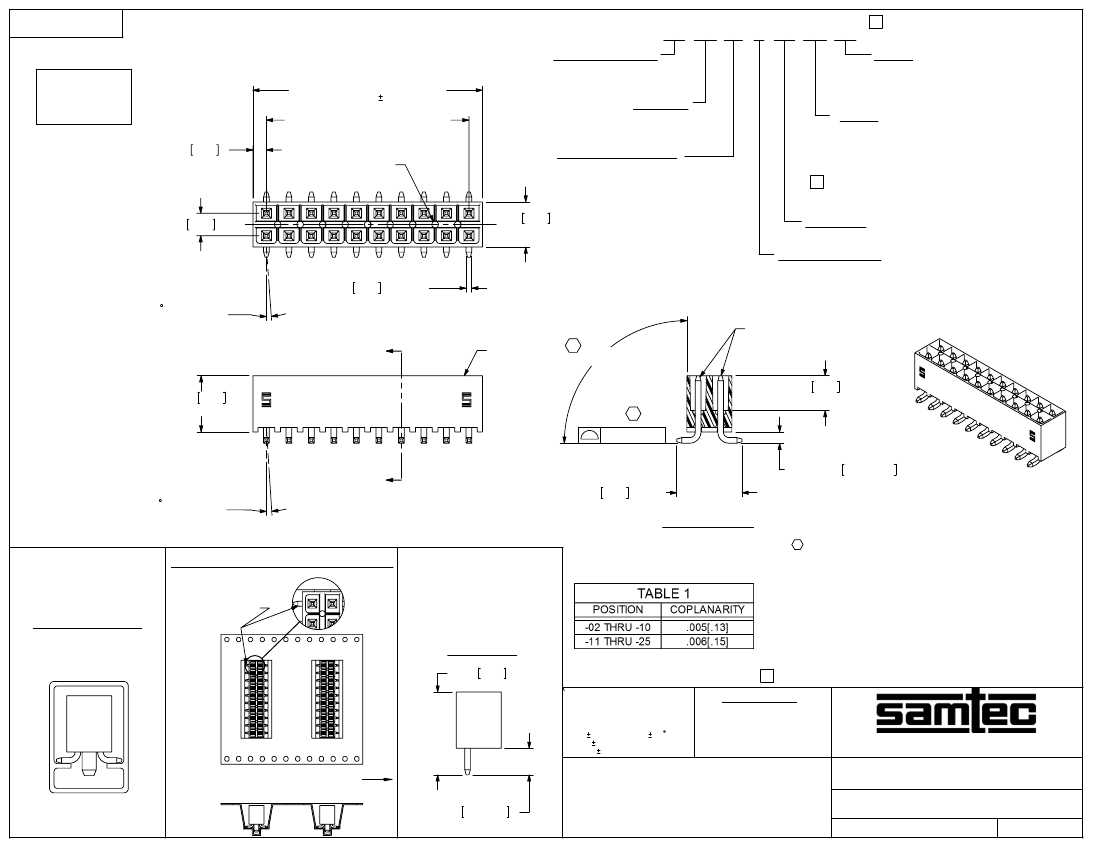

.100 DOUBLE ROW SHROUDED TERMINAL ASSEMBLY
DWG. NO.
IPT1-1XX-XX-XX-D-VS-XX-XX
11-06-2002
SHEET
1
OF
2
F:\DWG\MISC\MKTG\IPT1-1XX-XX-XX-D-VS-XX-XX-MKT.SLDDRW
BY:
DEAN P
REVISION W

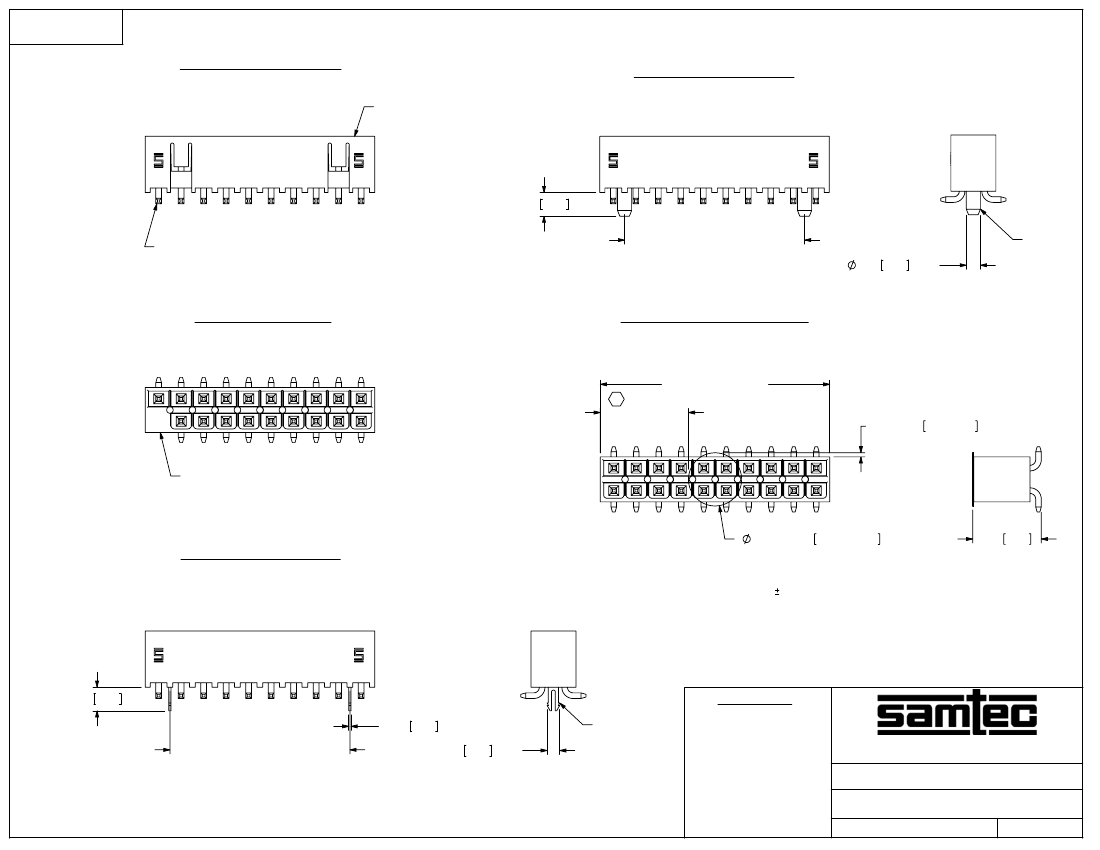

-FL: FRICTION LOCK OPTION
IPT1-110-01-X-D-VS-FL SHOWN
IPT1-XX-D-FL-X
-A: ALIGNMENT PIN OPTION
IPT1-110-01-X-D-VS-A SHOWN
.105 2.67
T-1S64-05-X
(No OF POS -2) x .1000[2.540]
.063 1.59 REF
SM-A11
IPT1-110-01-X-D-VS-PL SHOWN
-PL: POLARIZED OPTION
[AVAILABLE ON POSITIONS -03 THRU -25 ONLY]
-K: POLYIMIDE FILM PAD OPTION
02
20
"R" REF (SEE NOTE)
C3
"S" (SEE NOTE)
01
19
.018±.010 0.46±0.25
IPT1-XX-D-P
IPT1-110-01-X-D-VS-LC-FL SHOWN
-LC: LOCKING CLIP OPTION
.2362±.0050 5.999±0.127
NOTE: "R" = USE MEASURED DIMENSION
"S" = (("R" - .2362[6.000] / 2) .020[.51]
.305 7.75
.105 2.67
.010 0.25 REF
(No OF POS -2) x .1000[2.540]
.056 1.42 REF
LC-07-TM
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2.25:1
.100 DOUBLE ROW SHROUDED TERMINAL ASSEMBLY
IPT1-1XX-XX-XX-D-VS-XX-XX
11-06-2002
SHEET
2
OF
2
F:\DWG\MISC\MKTG\IPT1-1XX-XX-XX-D-VS-XX-XX-MKT.SLDDRW
BY:
DEAN P
